10kV Three-phase Resin Moulded Dry-type Distribution Transformer
Min.Order : 1 Pieces Quick Quotation >
Conpany Profile
Product Details
The epoxy resin casting dry-type transformer manufactured by weite transformer is a type of transformer with low noise, low loss and low partial discharge. With excellent structure, superior materials, scientific design, strict production technology and advanced testing method, the transformer also has the following advantages:
1. Self-extinguishing and inflaming retarding, fire-proof and explosion-proof, pollution-free and no toxic gas being generated.
2. Excellent damp-proof performance, capable of working under 100% relative humidity and other harsh conditions, with no damp-removing measures needed.
3. Thin resin structure realizes chap-free surface and excellent heat-dispersion performance.

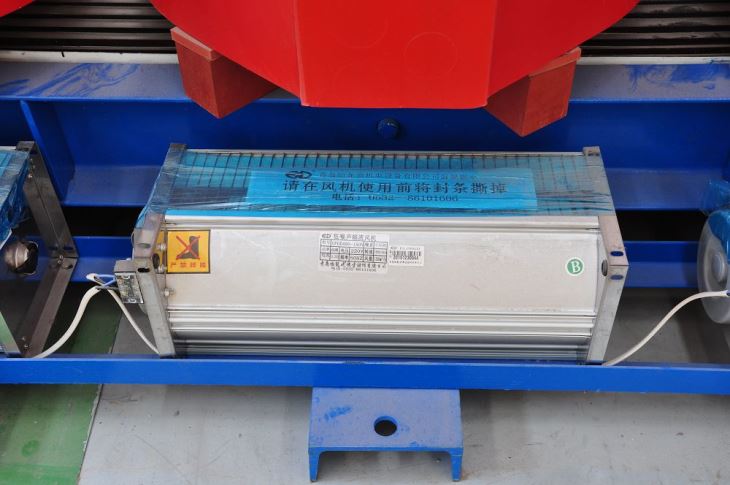

4. Great overload capability, capable of operating continuously under 110% overload conditions and in case of air forced cooling, operating continuously under150% overload conditions.
5. Nice appearance, small-size, less installation space occupation and low engineering cost.
6. Each performance index and technical specification excels those specified in China GB, international IEC or industrial standards.
specification | No-load loss (W) | On-load loss (W) (120?) | Short circuit impedance (%) | No-load current (%) | Overall dimension /shell dimension | ||||
Length of main body | Width of main body | Longitudinal installationdimension of body | Horizontal installation dimension of body and shell | Height of body | |||||
SC10-30/10 | 190 | 710 | 4 | 2.3 | 610 | 500 | 400 | 400 | 625 |
SC10-50/10 | 270 | 1000 | 2.2 | 610 | 500 | 400 | 400 | 825 | |
SC10-63/10 | 320 | 1190 | 2.2 | 785 | 500 | 400 | 400 | 800 | |
SC10-80/10 | 370 | 1380 | 1.7 | 855 | 500 | 400 | 400 | 800 | |
SC10-100/10 | 400 | 1570 | 1.7 | 855 | 500 | 400 | 550 | 860 | |
SC10-125/10 | 470 | 1850 | 1.5 | 880 | 650 | 550 | 550 | 340 |
specification | No-load loss (W) | On-load loss (W) (120?) | Short circuit impedance | No-load current | Overall dimension /shell dimension | |||||||||
Length of body | Width of body | Longitudinal installation dimension of body | Horizontal installation dimension of body and shell | Heighe of body | Length of shell | Width of shell | Height of shell | |||||||
SC(B)10-160/10 | 540 | 2130 | 4 | 1.5 | 890 | 650 | 550 | 550 | 970 | 1300 | 1200 | 2200 | ||
SC(B)10-200/10 | 620 | 2530 | 1.3 | 900 | 760 | 660 | 550 | 1015 | 1300 | 1200 | 2200 | |||
SC(B)10-250/10 | 720 | 2760 | 1.3 | 960 | 760 | 820 | 660 | 1025 | 1500 | 1400 | 1200 | |||
SC(B)10-315/10 | 880 | 3470 | 1.1 | 1050 | 760 | 820 | 660 | 1180 | 1500 | 1400 | 2200 | |||
SC(B)10-400/10 | 980 | 3990 | 1.1 | 1050 | 920 | 820 | 660 | 1240 | 1500 | 1400 | 2200 | |||
SC(B)10-500/10 | 1160 | 4880 | 1.1 | 1100 | 920 | 820 | 660 | 1315 | 1500 | 1400 | 2200 | |||
SC(B)10-630/10 | 1340 | 5880 | 0.9 | 1150 | 920 | 820 | 660 | 1395 | 1900 | 1400 | 2200 | |||
SC(B)10-630/10 | 1300 | 5960 | 6 | 0.9 | 1250 | 920 | 820 | 660 | 1235 | 1900 | 1400 | 2200 | ||
SC(B)10-800/10 | 1520 | 6960 | 0.9 | 1300 | 920 | 820 | 660 | 1330 | 1900 | 1400 | 2200 | |||
SC(B)10-1000/10 | 1770 | 8130 | 0.9 | 1350 | 920 | 820 | 820 | 1490 | 1900 | 1400 | 2200 | |||
SC(B)10-1250/10 | 2090 | 9690 | 0.9 | 1380 | 1170 | 1070 | 820 | 1600 | 1900 | 1400 | 2200 | |||
SC(B)10-1600/10 | 2450 | 11730 | 0.9 | 1460 | 1170 | 1070 | 820 | 1760 | 2200 | 1600 | 2200 | |||
SC(B)10-2000/10 | 3050 | 14450 | 0.7 | 1650 | 1170 | 1070 | 1070 | 1760 | 2200 | 1600 | 2200 | |||
SC(B)10-2500/10 | 3600 | 17170 | 0.7 | 1650 | 1170 | 1070 | 1070 | 1900 | 2200 | 1600 | 2200 | |||
SC(B)10-1600/10 | 2450 | 13960 | 8 | 0.9 | 1500 | 1170 | 1070 | 1070 | 1680 | 2200 | 1600 | 2200 | ||
SC(B)10-2000/10 | 3050 | 15960 | 0.7 | 1700 | 1170 | 1070 | 1070 | 1720 | 2200 | 1600 | 2200 | |||
SC(B)10-2500/10 | 3600 | 18890 | 0.7 | 1750 | 1170 | 1070 | 1070 | 1850 | 2200 | 1600 | 2200 | |||
SC(B)10-2000/10 | 3050 | 17340 | 10 | 0.7 | 1750 | 1170 | 1070 | 1070 | 1650 | 2200 | 1600 | 2200 | ||
SC(B)10-2500/10 | 3600 | 20604 | 0.7 | 1800 | 1170 | 1070 | 1070 | 1800 | 2200 | 1600 | 2200 |
Weite, established in 1988, is one of the leading and professional 10kv three-phase resin moulded dry-type distribution transformer manufacturers and suppliers in China. Equipped with advanced equipment and technology, our factory can offer you safe, quality and durable transformer with reliable performance.
