Offering 300watt solar panel quotation consultation and free sample, it is one of the professional 300watt solar panel manufacturers, welcome to wholesale cheap 300watt solar panel made in China in stock at low price from us.
Yangtze monocrystalline 300watt solar panel is perfect for decreasing your electrical bill,or for a off-grid system. Whether you want to connect this to the electrical grid, or power your off-grid cabin, Yangtze’s solar panel 300w will be the key element to your solar system.
As the monocrystalline 300watt solar panel has the key features :
?10 years product warranty , 25 years linear power output warranty
?Designed for residential and utility applications ,rooftop or ground mount
?Outstanding performance in low-light irradiance environment
?Positive power tolerance 0~+3%
?Heavy snow load up to 5400Pa , wind load up to 2400Pa
?Salt mist , ammonia and blown sand resistance for seaside ,farm and desert environment
?100% EL double inspection ensures modules are defects free ,no hot-spot heating
?Certified by TUV ,CE ,UL
Electrical Parameters at STC | |
Model | YS300M-72 |
Rated Maximum Power at STC | 300W |
Maximum Power Voltage (Vmp) | 36.2V |
Maximum Power Current (Imp) | 8.35A |
Open Circuit Voltage (Voc) | 45.2V |
Short Circuit Current (Isc) | 8.77A |
Module Efficiency | 15.54% |
Power Tolerance | 0~+3% |

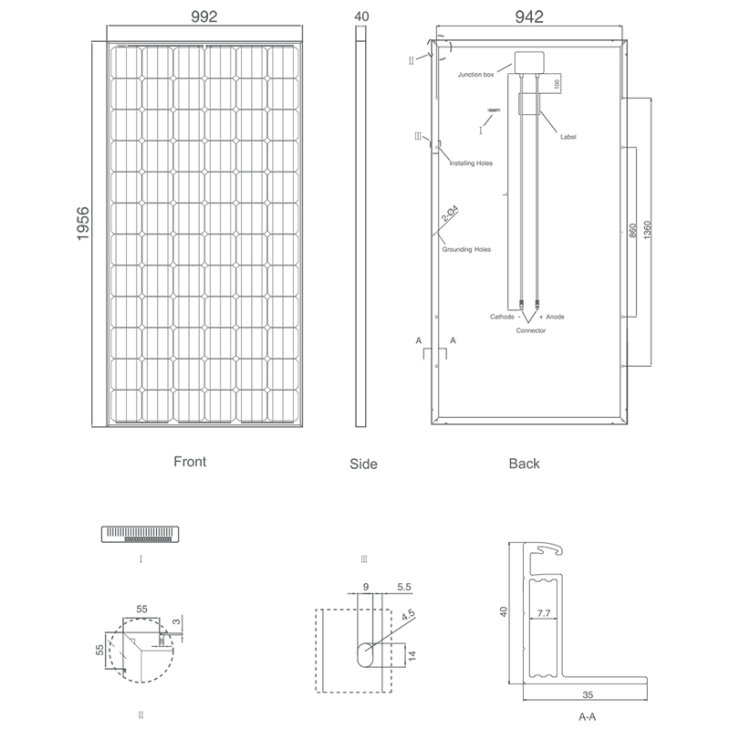

Mechanical Parameters | |
Cell Type | Mono-crystalline 156x156mm (6inch) |
No.of Cells | 72 (6x12) |
Dimension | 1956x990x40/45/50mm |
Weight | 26.5kg (approx) |
Glass | 3.2mm, High Transmission ,Low Iron , Tempered Glass |
Junction Box | IP65 & IP67 Rated |
Output Cable | Section Size: 4mm² , Length: 900mm |

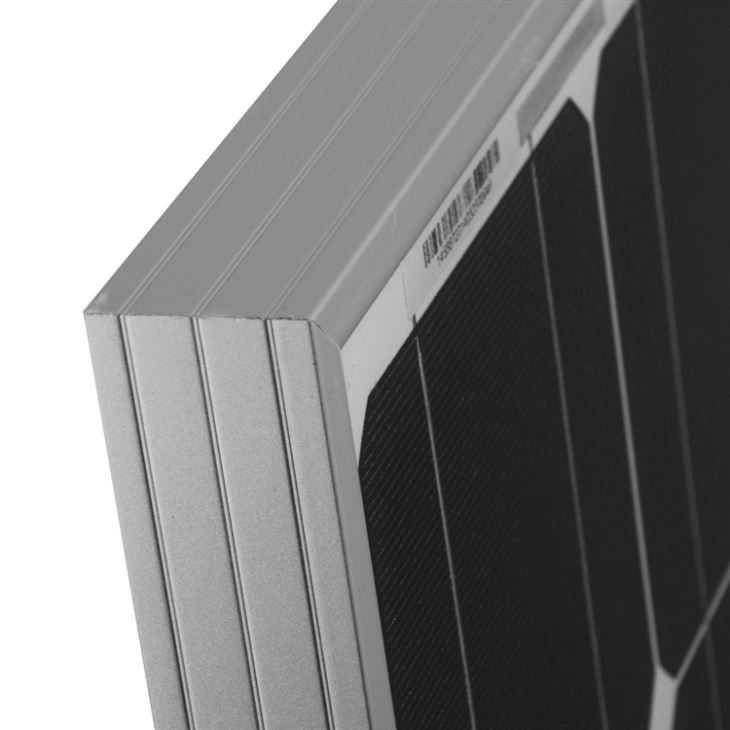

Frame | Anodized Aluminum Alloy |
No. of Bypass Diodes | 3 & 6 |
Connector | MC4 Compatible |
Working Conditions | |
Maximum System Voltage | DC 1000V(IEC) / 600V(UL) |
Operating Temperature | -40?~+85? |
Maximum Series Fuse | 15A |
NOCT | 45±2? |
Application Class | Class A |
Temperature Coefficient | |
Temperature Coefficient of Pmax | -0.40%/? |
Temperature Coefficient of Voc | -0.30%/? |
Temperature Coefficient of Isc | +0.05%/? |
STC: Irradiance 1000W/?, Module Temperature 25?, Air Mass 1.5 |
