630 Seriest Chamber Pressure Filter
Min.Order : 1 Pieces Quick Quotation >

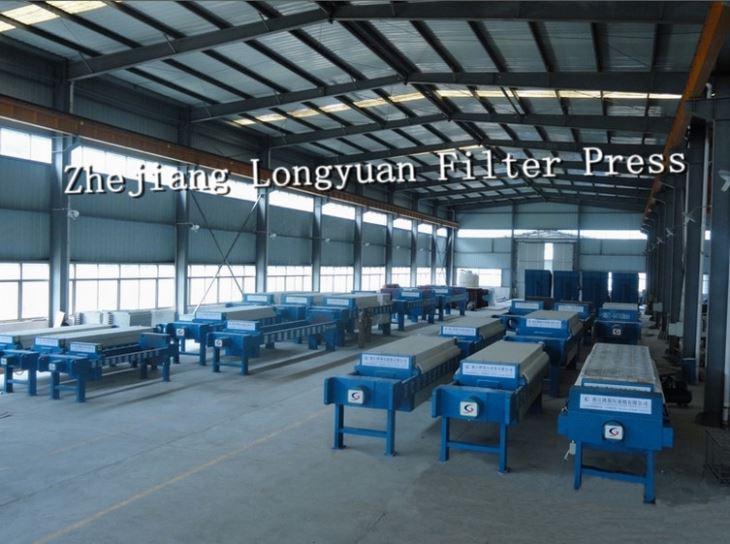

Conpany Profile
Product Details
Characteristic:
1.This type filter press is manual hydraulic pressing and screw maintaining pressure or automatic hydraulic pressing and automatic maintaining pressure. Comparing to other filter press machine, it is featured in small size, proper structure, easy to operate and maintenance,maximum feeding and squeezing pressure is 2Mpa and efficient in filtering
2.The filter plate is made of reinforced poly propylene with stable chemical propetry,light weight.Anti-corrosive,acid and alkaline resistant,non-toxin and odorless.800
filter area(m³) | 8 | 10 | 12 | 15 | 20 | ||||
Filter plate of quantity(piece) | 13 | 17 | 21 | 25 | 33 | ||||
Filter chamber of Volume(m³) | 0.12 | 0.16 | 0.2 | 0.24 | 0.29 | ||||
Filterplate/diaphragm plate (piece) | 6/7 | 8/9 | 10/11 | 12/13 | 16/17 | ||||
dimensions of suction and discharge flanges(mm) | DN65 | ||||||||
Undercurrent liquid outlet flange size (mm) | DN40 | ||||||||
outside dimensions | XS/630 | length | 2412 | 2652 | 2892 | 3132 | 3612 | ||
width | 878 | ||||||||
heigth | 1015 | ||||||||
X630 | length | 2516 | 2756 | 2996 | 3236 | 3716 | |||
width | 878 | ||||||||
heigth | 1015 | ||||||||
XZG | length | 2566 | 2806 | 3046 | 3286 | 3766 | |||
width | 930 | ||||||||
heigth | 1015 |
Devoting to offering high precision 630 seriest chamber pressure filter in accordance to your requirements, Longyuan Environment is one of the professional 630 seriest chamber pressure filter manufacturers and suppliers in China, who also has wholesale business ongoing. Welcome to buy discount and cheap 630 seriest chamber pressure filter at low price with our factory.
