Find high quality aluminum honeycomb furniture panels with competitive price here. Please rest assured to buy aluminum honeycomb furniture panels with Huarui Honeycomb Technology Co.,Ltd

Aluminum honeycomb furniture panels

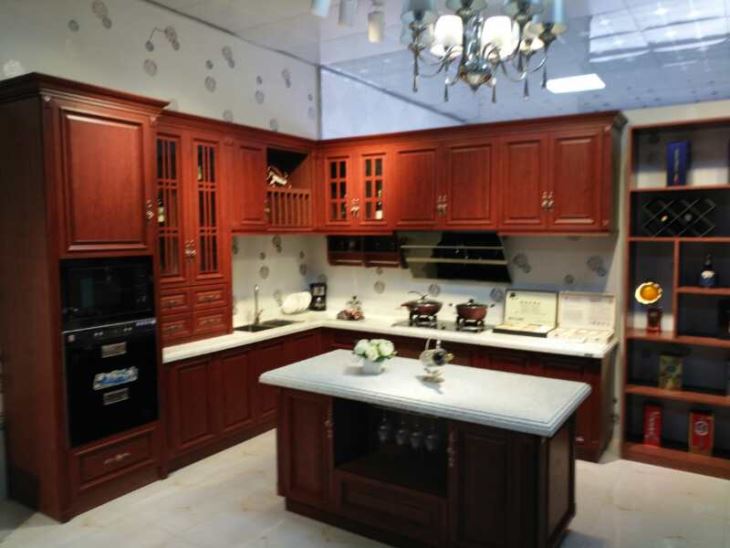

Aluminum Honeycomb Panel For Kitchen Cabinet,furniture,wardrobe doors

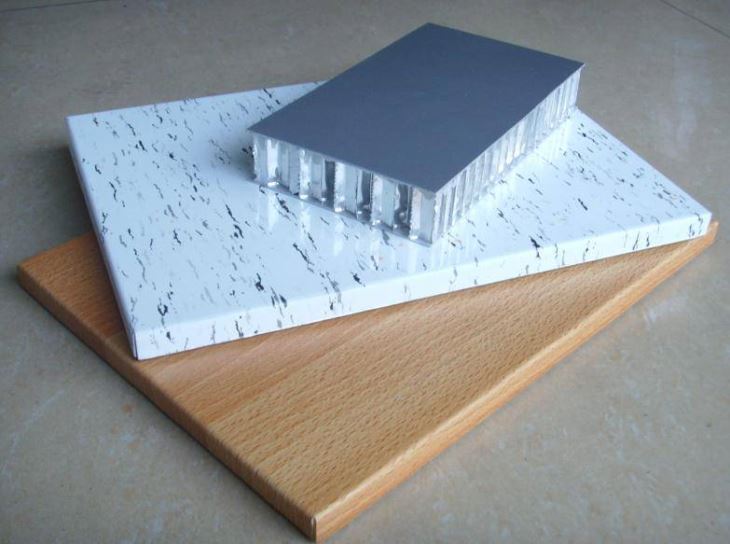

Aluminum Honeycomb sandwich panel is structured of the interlining of honeycomb type. It is a kind of high strength external building material, which was only applied in the aeronautic industry in the past. The surface layer of such panel is aluminum alloy sheet, while the central layer is the honeycomb structure made of aluminum foil. Aluminum Honeycomb panel has the characteristics of light weight, high intensity, high stiffness, strong corrosion resistance and stable performance.

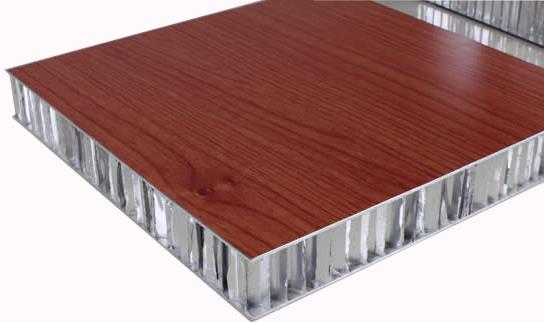

Honeycomb panel structure:

Honeycomb panel Specifications:

Standard Thickness:

6mm,10mm,15mm,20mm,25mm

Min Thickness: 2mm

Max Thickness: 500mm

Standard size: 1250x2500mm, 1500x5600mm

Max size: 1650x 12000mm, 2000x3000mm







Features:

Weight

One of the primary reasons for utilizing aluminum honeycomb panels is that they exhibit excellent strength-to-weight ratios compared to traditional construction materials.

Strength

The ability to configure panels with different materials allows us to create much stronger panels than one can achieve with solid structures.  The skill, however, is in analyzing all of the material choices for meeting your specifications and then selecting those that will provide the most functionality at the lowest cost.

Fire Resistance

Most flammability ratings and building codes can be easily met with some combination of materials.

Thermal Control

Most aluminum honeycomb panels have excellent insulation properties simply due to the nature in which they are designed. Since both honeycomb and foam cores trap air between the skins, they are inherently insulating to some degree.

Sound Control

While we do not specialize in acoustical panels, we are happy to incorporate any type of sound deadening specifications into the composite panels that we design.

Impact Resistance

Impact resistance can be accounted for by adjusting the honeycomb cell size, utilizing different core materials and skins, or adding thickness to the surface material and/or core.

Moisture Resistance

All types of aluminum and plastic honeycomb cores can be used to improve water and moisture resistance, but RFP surface materials can also do the job for many applications.

Corrosion Resistance

Not only can we utilize different core and surface materials to achieve resistance to weather and chemicals, but coatings can be applied for added security.
