Offering caravan solar panels quotation consultation and free sample, it is one of the professional caravan solar panels manufacturers, welcome to wholesale cheap caravan solar panels made in China in stock at low price from us.
Yangtze Caravan solar panels is the key component to a caravan solar kit system

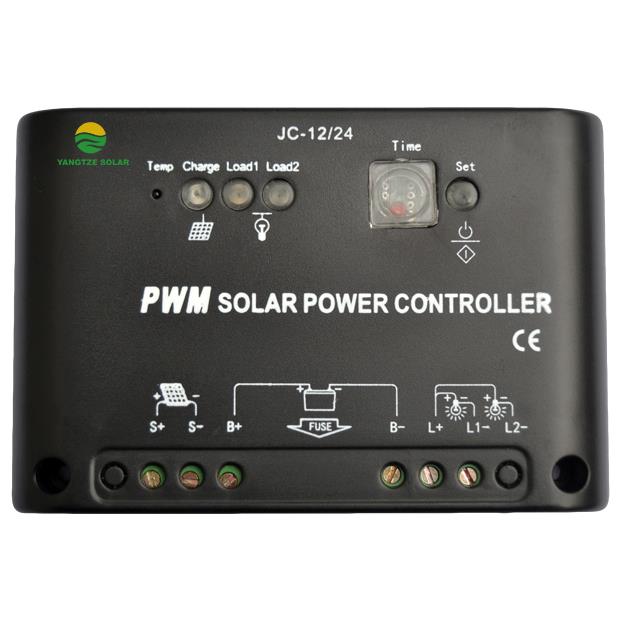

The caravan solar panel together with solar charge controller , solar battery and solar inverter form a off grid solar power system to power the appliances in the caravan instead of the traditional diesel generator . By using the caravan solar panels , you can enjoy the great outdoors with clean energy without extra noise . Why choose Yangtze Caravan solar panels ?
Key features :
?10 years product warranty ,long lifespan more than 25 years
?Manufactured according to ISO9001 and ISO14001
?High efficiency and reliable crystalline silicon solar cells
?High endurance to different weather
?Anti-ageing EVA and excellent anti-climate back sheet.
?High transmission low iron tempered glass, strong resistance
?Anodized aluminum frame improves load resistance capabilities
Normally the Caravan solar panel can be 12v solar panel or 24v solar panel , it is sold together with solar controller ,solar battery , solar inverter and cables to meet your caravan needs .
![]() | Key Features: ?Long lifespan more than 25 years ?Manufactured according to ISO9001 and ISO14001 ?High efficiency and reliable crystalline silicon solar cells ?High endurance to different weather ?Anti-ageing EVA and excellent anti-climate back sheet. ?High transmission low iron tempered glass, strong resistance ?Anodized aluminum frame improves load resistance capabilities Applications: ?RV and Caravan Applications ?Countryside and remote areas ?Off grid power station applications ?Small-scale irrigation pumping pumps ?Street lighting system. ?Emergency communication system ?12V and 24V battery charging system |
Model | Peak Power (Wp) | Maximum Power Voltage (Vmp) | Maximum Power Current (Imp) | Open Circuit Voltage (Voc) | Short Circuit Current (Isc) | Dimension | Weight |

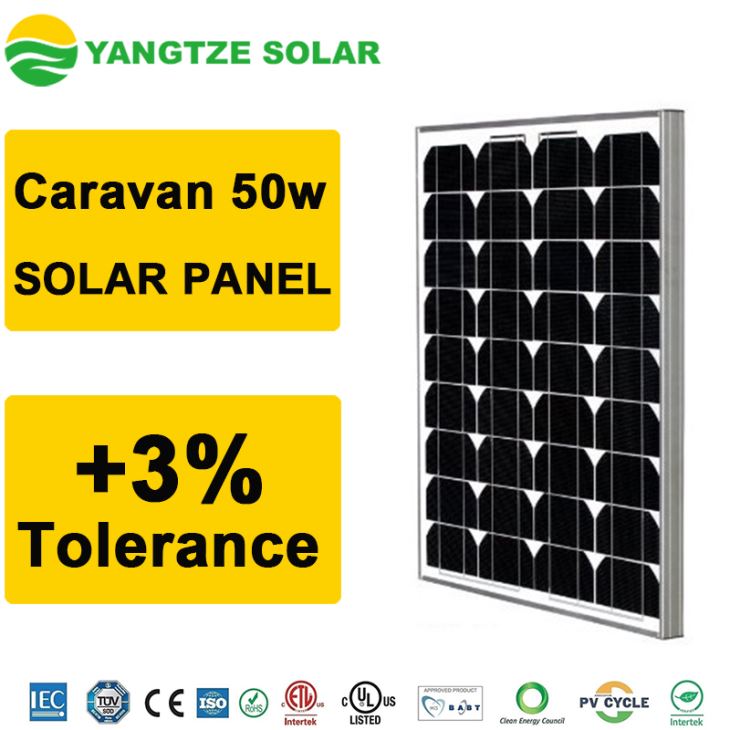

YS50M | 50W | 17.6V | 2.85A | 22.1V | 3.09A | 605*543*25/30mm | 4.5kg |
YS60M | 60W | 17.8V | 3.37A | 22.4V | 3.68A | 585*673*25/30mm | 4.7kg |
YS70M | 70W | 17.4V | 4.06A | 21.8V | 4.35A | 680*670*25/30mm | 5.8kg |
YS80M | 80W | 17.8V | 4.55A | 22.4V | 4.86A | 770*673*25/30mm | 6.4kg |
YS90M | 90W | 17.8V | 5.04A | 21.41V | 5.51A | 1199*543*25/30mm | 7.2kg |
YS100M | 100W | 18.11V | 5.53A | 22.61V | 5.91A | 1199*543*25/30mm | 7.2kg |

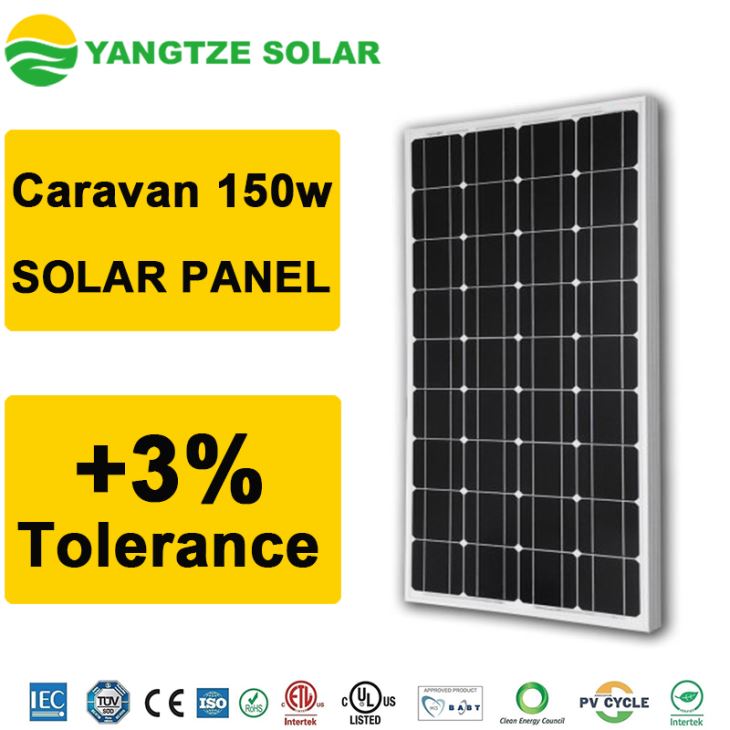

YS150M | 150W | 18.09V | 8.28A | 22.48V | 4.79A | 1480*670*30/35mm | 11.5kg |
