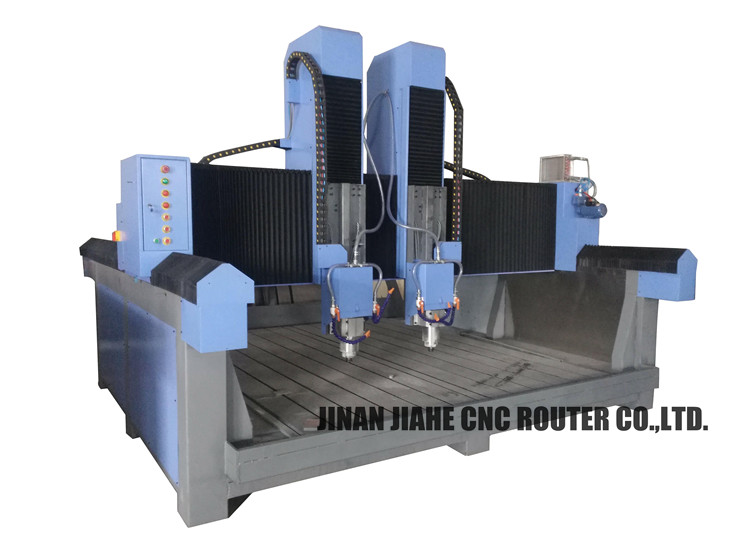

CNC Carving Machine for Marble Granite Stone
JK-1325S-2 machine features
1) This machine is suitable for processing Marble Granite Stone, equipped with two high-power head, two head can work at the same time or individually, double the efficiency
2) Computer Desk and the control cabinet in one, saving space, more convenient to operate
3) All dust-proof waterproof structure, better to protect linear guide and rack from stone carving wastewater and stone powder
4) NC studio, easy to operate and requires a relatively low level of workers' education, especially suitable for cutting, engraving, drilling, engraving and so on.
5) Independent control cabinet, avoid the vibration caused by the bed when the control cabinet hanging on the bed, easy to move, electrical components is easy to maintain
6) Comes with a water sink, unlimited water cycle, water conservation, ensure water supply and cooling
7) Double 5.5KW high-power waterproof water-cooled spindle motor, use low-speed high-torque spindle motor, wear-resistant, high temperature resistant, small rotary vibration, low noise
8) HIWIN square guide rail, dust-proof, 3000 km maintenance-free, easy maintenance
9) Water cooling system, cooling spindle and graver, does not heat when engraving stone
10) Engraving fonts, patterns, Yin and Yang carving, handwritten, celebrity Crafts or Ping carving on stone and glass, free to control the depth, can achieve a unique artistic effect, carving faster, higher accuracy.
Parameters
Model No. | JK-1325S-2 |
Working Area: | 1300*2500*300mm |
Spindle type | Water cooling spindle |
Spindle power | 5.5KW*2 |
Work table | T-slot table with stainless water tank |
Driving system | Chinese stepper or Taiwan/Japan servo motors and drivers |
Transmission: | X,Y : helical gear rack, HIWIN square guide rail, Z: ball screw TBI and hiwin square guide rail |
Locating precision: | <0.01mm |
Working Precision | ±0.03mm |
System Resolution | ±0.001mm |
Controlling system | NC studio Use computer to control the machine |
Data Transfer Interface: | USB |
System Environment: | Windows 7 or XP |
Spindle Cooling Way: | Water cooling by water pump or water chiller |
Inverter | Fuling |
Graphic Format Supported: | G code: *.u00, * mmg, * plt, *.nc |
Compatible Software | Artcam, Type3, Alphacam, Wentai, HPGL, G code, compatible with CAD / CAV design software |
Packing | Plywood case (veneer wood case for export) |
Optional parts | 1. Spindle power 2. Double-head or multi-heads 3. Mist spay cooling system 4. Other control system:DSP, Syntec etc 5. Servo motors (China Taiwan or Japan brand) 6. Rotay device with diamater 80mm,125mm,150mm,200mm,300mm etc 7. other features could be customized accordingly . |
Applicable Materials:
Marble, granite, China black granite, bluestone, jade, ceramics, crystal, glass, plastic, chemical synthetic glass, PVC board, bamboo, aluminum plate, metal, plastic
Applicable Industry:
Line carving, 2D carving, 3D carving at the bottom, 3D engraving, cutting, chamfering, drilling for stone industry, tombstone processing industry, advertising industry, decoration industry and handicrafts industry.
Machine details show
