Zhongneng Chengyu Power Co., Ltd is a professional manufacturer of various VRLA battery, like lead acid battery, GEL battery, AGM battery, OPzV battery, OPzS battery and etc. A gel battery is a valve regulated, maintenance free, lead acid battery. Gel batteries are extremely robust and versatile. These type of batteries produce few fumes and can be used in places without much ventilation.
Mian features
1) Maintenance-Free Operation
Absorbent Glass Mat (AGM) technology ensures efficient gas recombination up to 99% and freedom from electrolyte maintenance. During the expected float service life of MCA batteries, no need to check the specific gravity of the electrolyte or add water.
2) Good Discharging Ability
Tight assembly technology ensures an excellent high-rate discharge performance.
3) Long Service Life
A unique corrosion-resistant grid alloy ensures MCA batteries have long service life.
4) Low Self Discharge
Using high purity raw materials ensures MCA batteries have less self-discharge.
5) Environmental & Non-polluting
Gas Recombination technology ensures the battery high seal reacting rate, which can prevent the acid fog from separating out.
6) Safe & Reliable
Efficient venting system automatically release excess gas when the pressure rises above the normal level & reseals the valves when it returns to the normal rate, which can protect the battery from bursting.
Specification
Cells Per Unit: 6
Voltage Per Unit: 12
Capacity: 230Ah@20hr-rate to 1.75V per cell @25?
Dimension(LxWxH): 521x 269 x 209mm
Weight: Approx. 67.0Kg(Tolerance ± 1.5%)
Max. Discharge Current: 2000 A (5 sec)
Internal Resistance: Approx. 5.2mO
Operating Temperature Range:
Discharge: -40? ~60?;
Charge: -20?~50?;
Storage: -40?~60?
Normal Operating Temperature Range: 25? ± 5?
Float charging Voltage: 13.6 to 13.8 VDC/unit Average at 25?
Recommended Maximum Charging Current: 46A
Equalization and Cycle Service: 14.2 to 14.4 VDC/unit Average at 25?
Self Discharge: CHENGYU Valve Regulated Lead Acid (VRLA) batteries can be stored for more than 6 months at 25?. Self-discharge ratio less than 3% per month at 25?. Please charge batteries before using.
Terminal: Terminal F12
Container Material: A.B.S. UL94-HB, UL94-V0 Optional.
Product Details

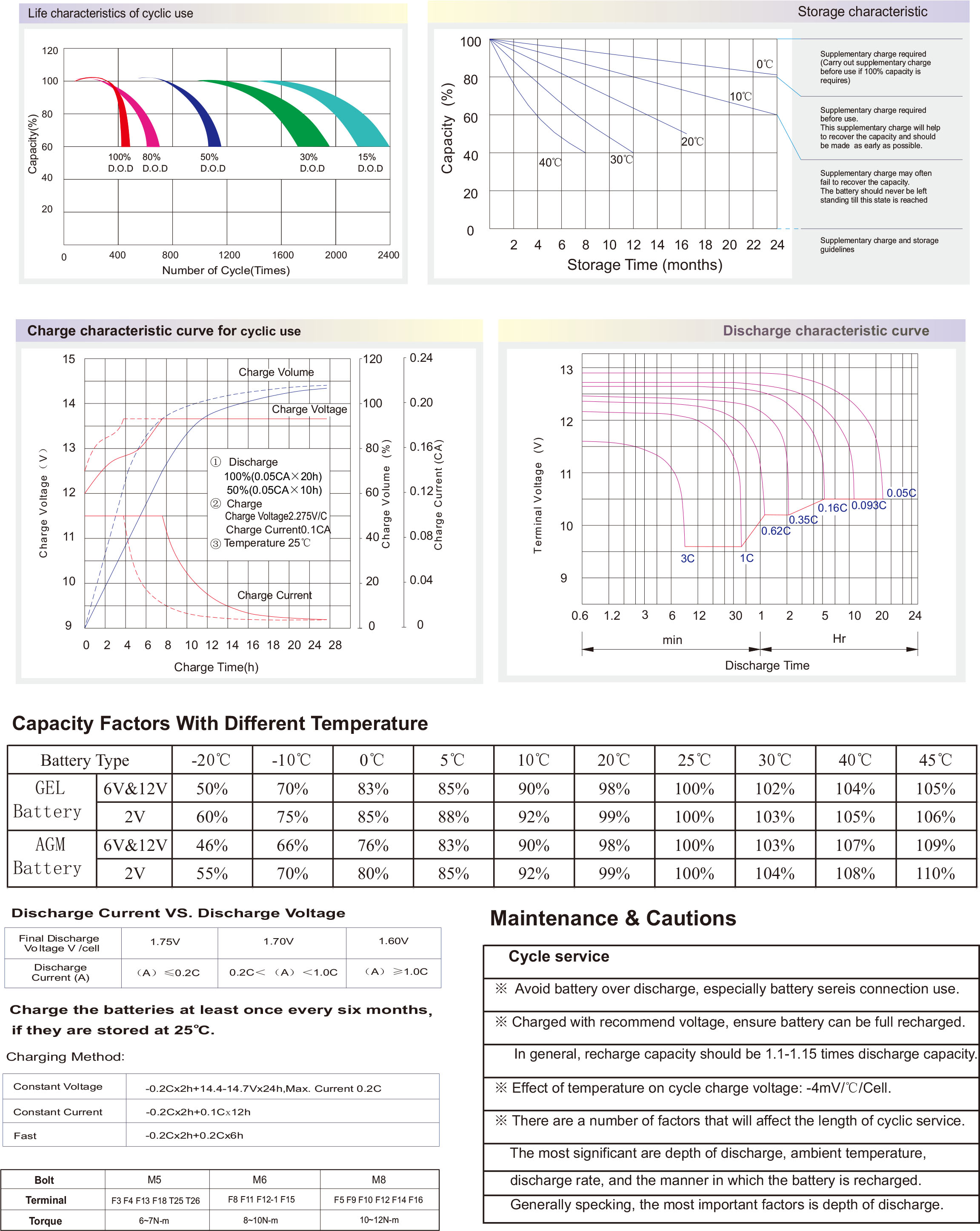

Datasheet
Catalogue
Model | Voltage | Capacity | Weight | Dimension(mm) | Terminal | Internal Resistance | Short Circuit Current |
(V) | (Ah) | (Kg) | (LxWxH)(TH) | (MO@25?) | (A) | ||
DG12-33-Y | 12 | 33 | 10.2 | 195x130x159(180) | C | 9.5 | 670 |
DG12-40-Y | 12 | 40 | 13.2 | 198x166x171(171) | D | 9 | 750 |
DG12-55-Y | 12 | 55 | 17 | 229x138x210(235) | C | 8.6 | 1040 |
DG12-60-Y | 12 | 60 | 20.5 | 260x169x210(235) | C | 8.5 | 1130 |
DG12-65-Y | 12 | 65 | 21 | 350x167x180(183) | C | 8 | 1250 |
DG12-70-Y | 12 | 70 | 22.5 | 350x167x180(183) | C | 8 | 1320 |
DG12-75-Y | 12 | 75 | 23.5 | 260x169x210(235) | C | 7 | 1410 |
DG12-80-Y | 12 | 80 | 24 | 260x169x210(235) | C | 7 | 1510 |
DG12-90-Y | 12 | 90 | 30 | 328x172x222(222) | C | 5 | 2100 |
DG12-100-Y | 12 | 100 | 30 | 328x172x222(222) | C | 7.5 | 1760 |
DG12-120-Y | 12 | 120 | 35.5 | 407x177x225(225) | C | 5.5 | 1900 |
DG12-134-Y | 12 | 134 | 41.5 | 344x173x280(285) | C | 5 | 2120 |
DG12-150-Y | 12 | 150 | 44.5 | 483x170x240(240) | C | 6 | 2460 |
DG12-180-Y | 12 | 180 | 53 | 530x209x214(219) | E | 5.5 | 2700 |
DG12-200-Y | 12 | 200 | 60 | 522x240x219(240) | E | 5.2 | 3020 |
DG12-230-Y | 12 | 230 | 67 | 521x269x203(208) | E | 5.5 | 2750 |
DG12-260-Y | 12 | 260 | 74 | 520x268x220(225) | E | 5 | 4460 |
DG2-200-Y | 2 | 200 | 14 | 171x111x366(366) | G | 1.2 | 2200 |
DG2-300-Y | 2 | 300 | 19 | 171x150x365(365) | G | 1.1 | 2450 |
DG2-500-Y | 2 | 500 | 30.5 | 242x172x329(366) | H | 0.9 | 3850 |
DG2-800-Y | 2 | 800 | 50 | 411x175x327(368) | J | 0.72 | 5250 |
DG2-1000-Y | 2 | 1000 | 62 | 475x175x327(365) | J | 0.65 | 5870 |
DG2-1500-Y | 2 | 1500 | 96 | 401x352x338(383) | K | 0.6 | 9170 |
DG2-2000-Y | 2 | 2000 | 126.5 | 490x349x338(383) | L | 0.5 | 11500 |
DG2-3000-Y | 2 | 3000 | 193 | 712x351x338(383) | L | 0.33 | 19000 |

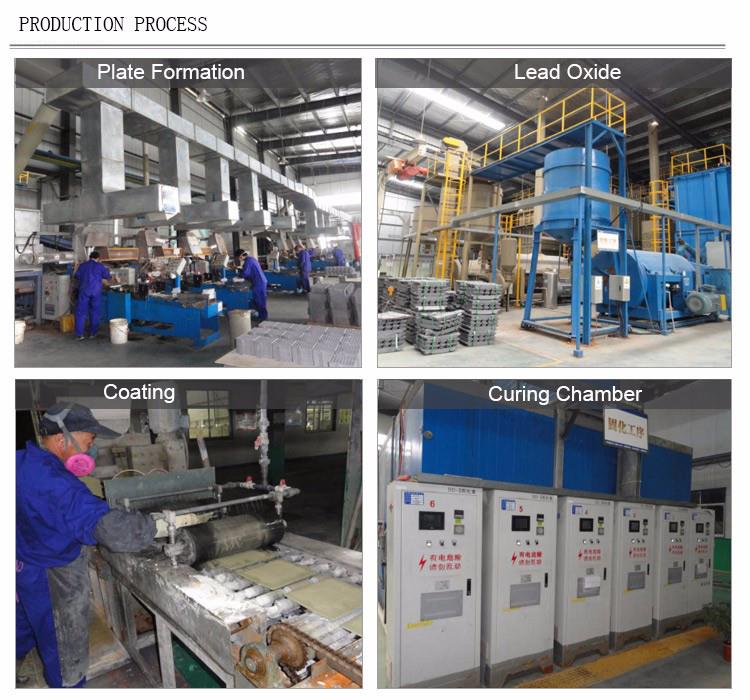

Product Processing
Application
Telecommunication
Photovoltaic/ Wind Energy
UPS
Cable TV
Solar System
DC power supply
Railway signalling
Communication equipment
Electric power systems
Uninterruptible power supplies
Factory
Chengyu headquartered in Liangshan industrial park, Liangshan county, birthplace of legendary novel<All Men Are Brothers>, covering an area of 39990?, its workshop takes 19060?, in combination with engineering and equipment, enable Chengyu Power to maximize productivity and ensure the supply of high quality products to the field of Transportation, IT, Telecommunications, renewable energy, oil and gas infrastructure, power production and distribution, military as well as consumer products.
FAQ
Q1: Payment term: T/T , D/P, Western Union
A1: T/T 30% deposit, the balance before delivery.
Q2: If you want datasheet / catalog
A2: Please kindly send an inquiry to us, We will support you quite well.
Q3: Packing
Q3: Carton and pallet.
Q4: What’s kinds of battery will you provide?
A4: We have VRLA Battery, UPS Battery, High Rate Battery, Deep Cycle Battery, Gel Battery, Solar Battery, Front Terminal Battery, OPzV Battery, OPzS Battery and etc.
Q5: Where can we use the batteries?
A5: Our batteries can be widely used in UPS, Solar and wind system, Control system, Telecommunication system, Emergency light system, Security system, Emergency lamp, Medical treatment equipment, Military equipment and etc.
Sealed Lead Acid Solar UPS Battery for Power Projects Technical Characteristics
1. Easy installation
2. Long life cycle design
3. Free of maintenance
4. Sealing without leakage
5. Extremely low self-discharging
6. Safety and explosion protection
7. High magnification discharging performance
