Product Details

Find high quality double layer tile roll forming machine with competitive price here. Please rest assured to buy double layer tile roll forming machine with Jiangsu Lebron Machinery Technology Co.,Ltd

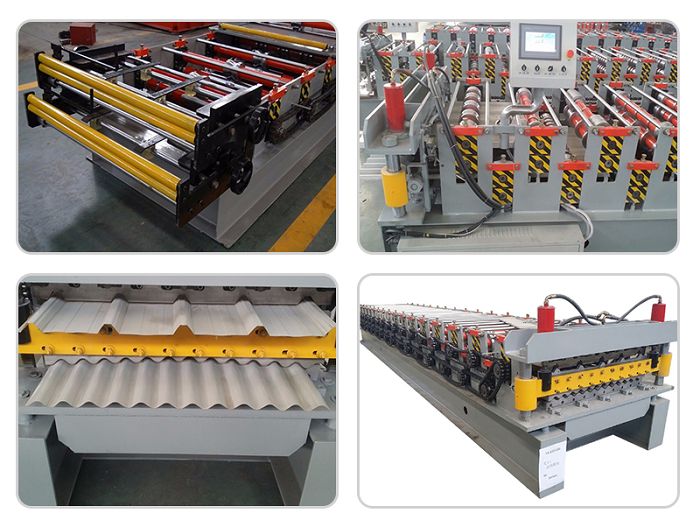

Double Layer Tile Roll Forming Machine


Description

The double layer tile roll forming machine can make two different types wall and roof panels in one machine,including glazed roof tile,roof/wall panel style.
This design of the double layer roll forming machine could increase your productivity and save space,save the costs.The machine max roll speed can reach to 45m/min.This is very popular in abroad due to it high efficiency and can work automatic

Main components

uncoiler	1 Set
Guiding Equipment	1 Set
Roll Forming Equipment	1 Set
Post Cut Equipment	1 Set
Hydraulic Station	1 Set
PLC Control	1 Set
Supporter Table	2 Set

Flow chart

Roof sheet:

Main components


Our Advantages

	LBM machine	other company 's machine	Advantages of LBM machine
Machine's base	High strength H350 / H400 steel. machine through milling machine after welding.	H270 steel mark, after welding use manual polish.	keep base in the same horizontal line, ensure product quality.
Roller material	High grade No.45 forged steel, with digital-controlled procession, Plated with 5 um chrome coated	normal No. 20 steel with Simple polished and have no coating	Roller will have longer use life and ensure the products have the same sizes, no racks on the surface.
Side wall	use high strength16mm thickness steel panel mark	use 12 mm thickness steel panel mark	ensure machine harder to deform, keep the product accurate and stable
Active shaft material	High grade solid No.45 carbon steel, Shaft diameter is 72mm. surface CNC polish treatment.	normal No. 45 steel with no surface treatment	improve the integrated mechanic feature of the shaft. and ensure the shaft stability, keep product quality.
Electrical elements	PLC control panel, transducer imported from Mitsubishi of Japan. Other elements from famous suppliers in China	all the elements are made in china	machine become more accurate and more stable
Cutter blade	Cr12 mould steel with quenched treatment	normal high strength steel without quenched treatment	stable the integrated mechanic feature of the cutter blade, harder to deform, longer life, ensure product quality

Delivery


After-sell service

A. Foreign debugging

If you need, we will arrange our professional engineers to help you install and debug the machines well. Buyer should pay $60 per day

B. Guarantee period

The warranty will be maintenance, maintain in the guarantee period of 18 months starting from delivery. Because of the quality of equipment during guarantee period, we will provide the parts free of charges, which is in the conditions of correct operation. (Natural disasters or factors which can’t forced by human are excluded).

C. Training

During installation and adjustment of the equipment, our engineers shall provide the training to

buyer's personnel request to operate and maintain the equipment. Including foundation construction, electrical works, hydraulic oil, safe operation and non-standard safety items, testing material and etc.

D. Lifetime services

Life time services to every customer.
