Find high quality dual fiber 1x9 with competitive price here. Please rest assured to buy dual fiber 1x9 with Shenzhen Reon Communication Technology Co.,Ltd

Product Features

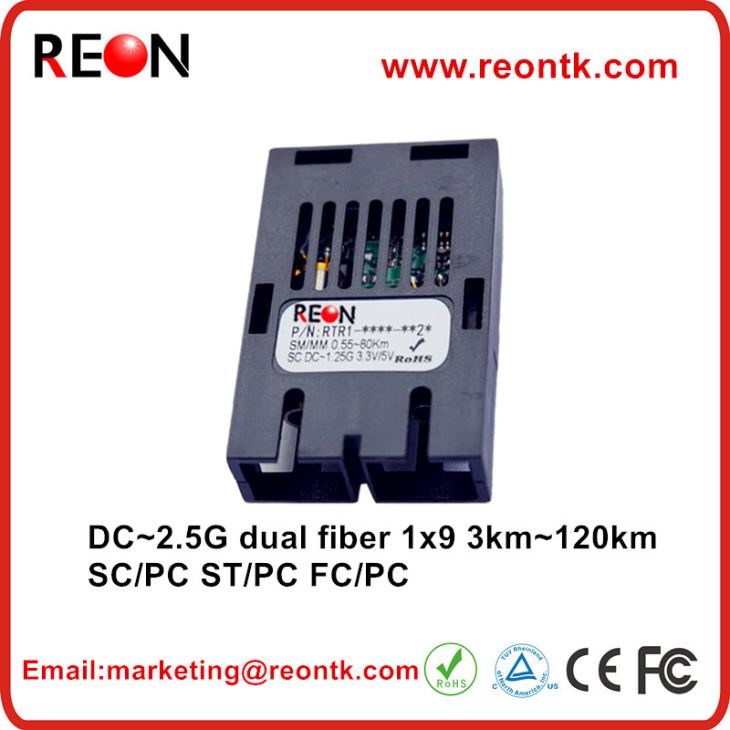

DUAL Transceiver 1x9 Footprint
SC, FC or ST Optical Interface are Optional
Single +3.3V/5V Power Supply
LVPECL Differential Inputs and Outputs
LVPECL/LVTTL Signal Detection Output
Compliant With RoHS and Lead Free
Metal Enclosure for Lower EMI

Operating Case Temperature
Standard: 0 to +70°C
Extend: -20 to +75°C
Industrial: -40 to +85°C

Product Applications
Fast/Gigabit Ethernet
ATM/SONET/SDH
Switch/Router
Other Optical Transmission Systems

P/N	Package	Fiber Type	Data Rate (bps/Hz)	Reach	Tx(nm)	Rx	Temperature	Connector Type	Voltage
							(°C)
RTR1-3F00-1C**	1x9	SM	DC~2M	10~ 20km	1310 FP	PIN	0~+70	SC/FC/ST	3.3V/5V
RTR1-3F01-1C**	1x9	SM	2M~52M	10~ 20km	1310 FP	PIN	0~+70	SC/FC/ST	3.3V/5V
RTR1-ED03-6***	1x9	MM	155M	2km	1310 LED	PIN	0~+70,-40~+85	SC/FC/ST	3.3V/5V
RTR1-1303-6***	1x9	MM	155M	2km	1310 FP	PIN	0~+70,-40~+85	SC/FC/ST	3.3V/5V
RTR1-3F03-1***	1x9	SM	155M	10~ 20km	1310 FP	PIN	0~+70,-40~+85	SC/FC/ST	3.3V/5V
RTR1-3F03-3***	1x9	SM	155M	40km	1310 FP	PIN	0~+70,-40~+85	SC/FC/ST	3.3V/5V
RTR1-3F03-4***	1x9	SM	155M	60km	1310 FP	PIN	0~+70,-40~+85	SC/FC/ST	3.3V/5V
RTR1-5D03-3***	1x9	SM	155M	80km	1550 DFB	PIN	0~+70,-20~+75	SC/FC/ST	3.3V/5V
RTR1-5D03-4***	1x9	SM	155M	100km	1550 DFB	PIN	0~+70,-20~+75	SC/FC/ST	3.3V/5V
RTR1-5D03-5***	1x9	SM	155M	120km	1550 DFB	PIN	0~+70,-20~+75	SC/FC/ST	3.3V/5V
RTR1-8512-2C**	1x9	MM	622M	550m	850 VCSEL	PIN	0~+70	SC/FC/ST	3.3V/5V
RTR1-1312-1***	1x9	MM	622M	2km	1310 FP	PIN	0~+70,-40~+85	SC/FC/ST	3.3V/5V
RTR1-3F12-1***	1x9	SM	622M	10~ 20km	1310 FP	PIN	0~+70,-40~+85	SC/FC/ST	3.3V/5V
RTR1-3F12-3***	1x9	SM	622M	40km	1310 FP	PIN	0~+70,-40~+85	SC/FC/ST	3.3V/5V
RTR1-5D12-4***	1x9	SM	622M	60km ~80km	1550 DFB	PIN	0~+70,-20~+75	SC/FC/ST	3.3V/5V
RTR1-8524-1C**	1x9	MM	1.25G	550m	850 VCSEL	PIN	-10~+75	SC/FC/ST	3.3V/5V
RTR1-1324-1***	1x9	MM	1.25G	2km	1310 FP	PIN	0~+70,-40~+85	SC/FC/ST	3.3V/5V
RTR1-3F24-1***	1x9	SM	1.25G	10~ 20km	1310 FP	PIN	0~+70,-40~+85	SC/FC/ST	3.3V/5V
RTR1-3F24-2***	1x9	SM	1.25G	40km	1310 FP	PIN	0~+70,-20~+75	SC/FC/ST	3.3V/5V
RTR1-3D24-2***	1x9	SM	1.25G	40km	1310 DFB	PIN	0~+70,-20~+75	SC/FC/ST	3.3V/5V
RTR1-5D24-3***	1x9	SM	1.25G	60km	1550 DFB	PIN	0~+70,-20~+75	SC/FC/ST	3.3V/5V
RTR1-5D24-4***	1x9	SM	1.25G	80km	1550 DFB	PIN	0~+70,-20~+75	SC/FC/ST	3.3V/5V
RTR1-8548-1C**	1x9	MM	2.5G	300m	850 VCSEL	PIN	-10~+75	SC/FC/ST	3.3V
RTR1-3D48-2***	1x9	SM	2.5G	10~ 20km	1310 DFB	PIN	0~+70,-20~+75	SC/FC/ST	3.3V
RTR1-5D48-3***	1x9	SM	2.5G	60km	1550 DFB	PIN	0~+70,-20~+75	SC/FC/ST	3.3V
