H750

2

1

WAN RJ45 * 1

LAN RJ45 * 3

H700

2

1

WAN RJ45 * 1

LAN RJ45 * 4

Can built in battery

H720

2

2

WAN RJ45 * 1

LAN RJ45 * 4

Can built in battery

Compatible Mobile Networks

UMTS WCDMA (HSUPA/HSDPA/HSPA/HSPA+/DC-HSPA+)

GSM EDGE/GPRS

CDMA1x

CDMA2000 EVDO Rev 0, Rev A, Rev B

TD-SCDMA/TD-LTE

4G LTE (FDD/TDD)

Cellular Frequency

UMTS/HSPA/HSUPA/HSPA/HSPA+/DC-HSPA+ (WCDMA/FDD): 850/1900/2100 MHz, option for 850/900/1900/2100Mhz/1700Mhz/AWS;
3G TD-SCDMA: 2010~2025MHz/1880~1920MHz

Quad-band EGSM 850/900/1800/1900;

CDMA1x/EVDO: 800/1900Mhz, option for 450Mhz;

4G FDD LTE:

Band 1--2100Mhz

Band 2--1900Mhz

Band 3--1800Mhz

Band 4—AWS(1700/2100Mhz)

Band 5--850Mhz

Band 7--2600MHz

Band 8--900Mhz

Band 12--700Mhz

Band 13--700(B13)Mhz

Band 17--700(B17)/AWS

Band 19—800Mhz

Band 20--DD800Mhz

Band 21

Band 25 –1900Mhz G Block

Band 31– 450Mhz
Other FDD band…

4G TDD LTE (TD-LTE):

Band 41 – 2500/2600Mhz

Band 40 -- 2300Mhz

Band 39 – 1900Mhz

Band 38 -- 2600Mhz

Other TDD band…

Notes: 4G LTE is new. There are many different band and frequencies. Please confirm the detailed band and frequency with your carriers before order.

Bandwidth

4G LTE

FDD LTE: 100Mbps or 150Mbps or 300Mbps downlink, 50Mbps uplink;
TDD LTE: 150Mbps downlink, 50Mbps uplink;

DC-HSPA+: Downlink 42Mbps, Uplink 5.76Mbps;

HSPA+(H): Downlink 21Mbps, Uplink 5.76Mbps;

HSPA+(L): Downlink 14.4Mbps, Uplink 5.76Mbps;

HSUPA: Downlink 7.2Mbps, Uplink 5.76Mbps;

HSDPA: Downlink 7.2 Mbps, Uplink 384k bps;

WCDMA/UMTS: Downlink/Uplink 384 kbps;

EDGE: Downlink 384 kbps, Uplink 118 kbps;

GPRS: Downlink 108 kbps, Uplink 42.8 kbps;

CDMA1x: Downlink/Uplink 153.6kbps;

CDMA EVDO:
Rev B: 14.7Mbps downlink, 5.4Mbps uplink
Rev A: 3.1Mbps downlink, 2.4Mbps uplink

Rev O: 2.4Mbps downlink, 153.6kbps uplink

3G TD-SCDMA: 2.8Mbps

Notes: the bandwidth is peak value. Real value depends on carrier network support.

Network and Band Lock Feature (Option)

Default is unlocked, can use this feature to lock

Main Features and Performance

USB Host

No, can ODM

SMS/Voice

SMS/Voice call to control router to be online, offline, reboot and status monitor; SMS is default feature, Voice is option;
SMS text sending and receiving;

GPS (Option)

GPS feature

DTU (Option)

With DTU feature (Serial to Cellular Gateway feature, RS232 or RS485 port option).

Details:

Serial Baudrate: 300bps, 600bps, 1200bps, 2400bps, 4800bps, 9600bps, 19200bps, 38400bps, 57600bps, 115200bps;

Serial Parity: none, even, odd;

Serial Databits: 7, 8;

Serial stopbits: 1, 2;

Serial flow control: none, hardware, software;

Mode: Server (up to 4 server centre, can OEM to be more), Client;

Protocol: TCP, UDP ;

Heart Beat : Yes;

VPN

PPTP, L2TP, IPSec, GRE, Tunnel (PPTP server, PPTP client, L2TP client, IPSec client, IPsec server), OpenVPN is option

OpenWRT (Option)

Optional

VRRP (Option)

Optional

Route

Static Route;

Optional for Dynamic Route (BGP, BGPD, OSPF, Zebra, Rip);

SNMP

Support V1, V2. V3

VLAN

Support multi-LAN IP address, support two IP address

Wi-Fi

Optional, 802.11b/g/n; 300Mbps.

Can be used as AP and client;

Frequency from 2.4GHz to 2.483GHz,Access Points, Routers and Gateway Server Applications, wireless up to 254 PC users

Fail Over Redundancy (network Backup feature)

Auto-dial feature, keep alive link;

LCP, ICMP check;

Built-in watch dog;

Dual cellular (2G/3G/4G), RJ45 WAN (xDSL, DHCP, Fixed IP), WiFi client four line redundancy;

Cold Backup is default, Hot Backup is option;
Cold Backup=WAN RJ45 and Cellular WAN not online at the same time. One line online and the other line standby, switch freely with triggers;

Hot Backup=WAN RJ45 and Cellular WAN are online at the same time. Data goes the main line, and switch to the other line. Hot Backup switch time is shorter than Cold Backup.

POE (option)

POE for LAN/WAN RJ45 (use with POE adapter)

Firmware update

support firmware update locally or remotely (LAN, WiFi and OTA WAN)

Syslog

local and remote

DDNS

Yes

DHCP Server

Yes

Internal Battery

Optional (8000mAH, 4000mAH *2)

Others

DNS proxy;

Optimized EMC design;

Real-time clock (NTP, support update with defined hours);

WAN/LAN/Memory statistics;

Local/remote profiles backup and retrieve;

Firewall;

Remote Management System

Option

Interface

LAN/WAN

10/100M LAN port (RJ45 interface) * 3 or 4

10/100M WAN port (RJ45 interface) * 1

WAN ports support Cell/Static IP/DHCP/PPPoE (on demand, keep alive, schedule, manual)

Antenna

4-8 X antenna (50O SMA female interface, detachable):

Wi-Fi*2

Cellular*2-4

GPS*1-2

Cellular support MIMO(Diversity Receiving) option;

WiFi support MIMO (Diversity Receiving) option;

Led

SYS

WiFi

Cell1

Cell2

Cell Signal1

Cell Signal2

LAN (10/100M) 1, 2, 3, 4

WAN

CHR (Internal battery charging) (for version supports internal battery)

Button

Reset

Console

1 console port (also can be used as M2M port)

Serial port

RS232 or RS485 with DB9 and Terminal Block interface

IO Port (option)

2

Management

Easy to use and management;

Web/Telnet/SSH/CLI, support remote management

SMS;

SNMP;

RMS (Remote Management System)

At command

Supported

UIM/SIM Card Slot

Support 1.8V/3V UIM/SIM cards, two sim card slot

DC Jack

Two types of input jack for DC

2.5mm DC jack * 1

Terminal Block * 1

Power

Power supply

DC5V-50V / DC5V-60V , typical DC 9V1A or 12V1A, 12v CAR USE;

DC5V~40V is the default, DC5V~50V is the option

Current

Idle: about 140mA@12VDC

Communication: about 300mA@12VDC

Software

Device Management

WEB interface (Internet Explorer v6 or Later; Mozilla Firefox v1.5 or Later, or other Java-enabled Browsers, Chome, Opera, Sarafi, etc.)

Minimum System Requirements

Windows, Linux, Mac OS, IOS, Symbian, Android, other OS support web browser;

Network Interface Card

Physical

Operating Temperature

Storage Temperature: -40 ~ 85°C

Working Temperature: -30 ~ 75°C

Humidity

95% Maximum (Non-condensing)

Dimensions

H750 Model

PCBA: 100mm x 80mm x 22mm

With case: 102mm x 87mm x 35mm

H700/H720 Models

PCBA: 168mm x 111mm x 16mm

With case: 180mm x 114mm x 32mm

Weight

H750 Model

330g (not including the antenna)

H700/H720 Models

705~725g (not including the antenna)

Color

Metal Gray-Black, OEM is available

Others

Warranty

1 Year default. Option extends to 5 years maximum.

Package Contents

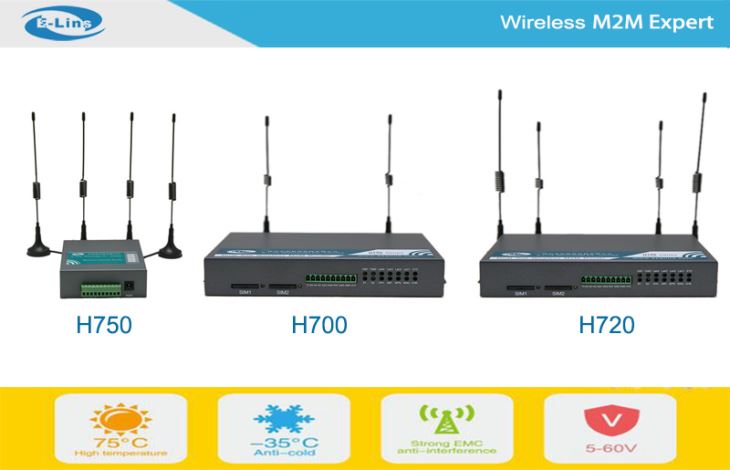

H750/H700/H720 Series Dual Sim 4G Router

Ethernet Cable

Power Adapter

Antenna

Others depends on option features
