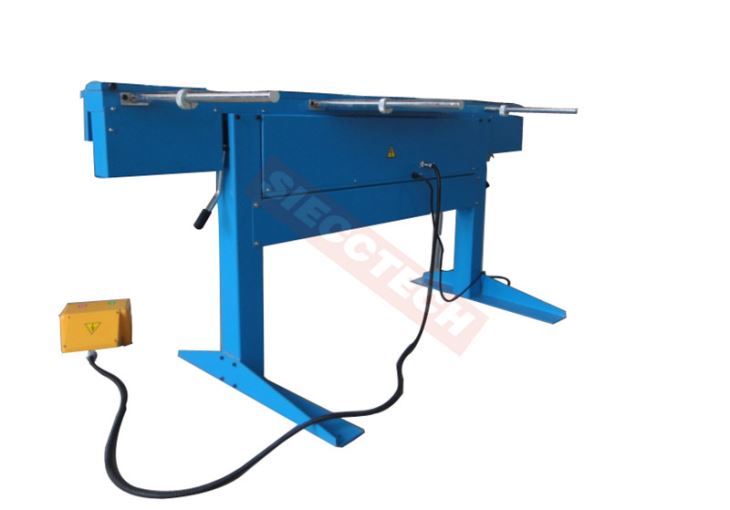

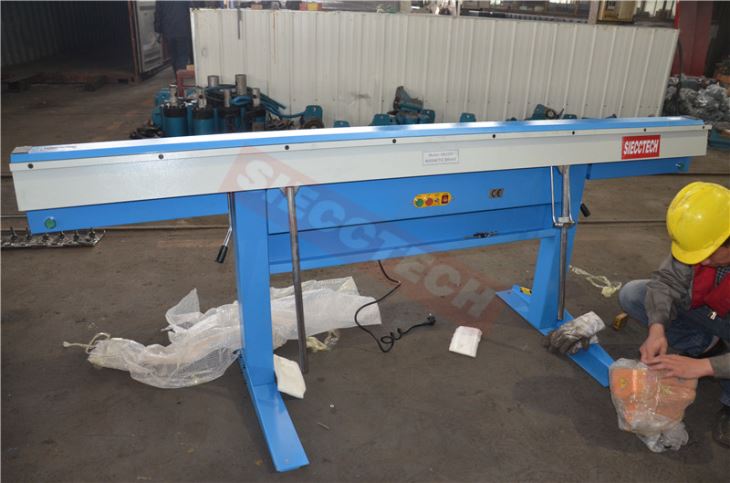

?Megentic bending machine

FEATURES:
1.Infinite length bending in stages is possible.
2.Much greater versatility than conventional sheet metal benders
3.With 4 sets standard clamping bars
4.Foot pedal operation
5.Easy raise clamping bars
6.With bending stop device
7.Unlimited throat depth.
8.Open ended design allows folding of complex shapes.
9.Machines can be ganged end-to-end for long bending.
10.Adapts easily to customised tooling (clamp bars of special cross-sections).

Model	EB625	EB1000	EB1250
Max capacity	625*1.6mm	1000*1.6mm	1250*1.6mm
(length*thickness)	2’*16ga	3’*16ga	4’*16ga
Clamping force	3ton	4.5ton	6ton
Duty cycle	30%
Back gauge	390mm	640mm
Foot switch	NO		Standard
Nominal current	4Amp	6Amp
Protection	Thermal cut-out 70?
Bending-edge length	670mm	1050mm	1300mm
Distance between lifters	630mm	1010mm	1260mm
Packing size	83*112*38cm	120*112*38cm	145*112*38cm
N.W./G.W.	102/107kg	142/177kg	175/220kg

Model	EB2000	EB2500	EB3200
Max. capacity	2000x1.6mm	2500x1.6mm	3200x1.6mm
(length X thickness)	6'x16ga	8'x16ga	10'x16ga
Clamping force	9 Ton	12 Ton	10 Ton
Duty cycle	30%	30%	30%
Back gauge	640mm	640mm	640mm
Foot swich	Standard
Nominal current	12Amp	15Amp	15Amp
Protention	Thermal cut-out 70°C
Bending-edge length	2090mm	2590mm	3290mm
Distance between lifters	2028mm	2528mm	3228mm
Packing size	220x112x38cm	270x112x38cm	340x112x38cm
N.W./G.W.	290/360kg	330/420kg	400/510kg

Details

Shining Industrial has been engaged in offer a wide range of plate solution machines for over 20 years. Now, we have many products in stock in our factory, welcome to buy discount, low price and customized megentic bending machine made in China with our company - one of the leading such manufacturers in China.
