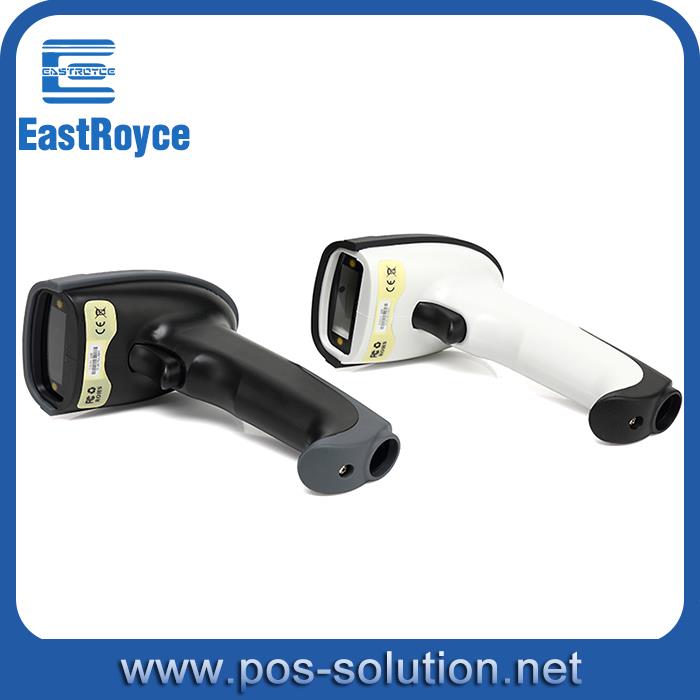

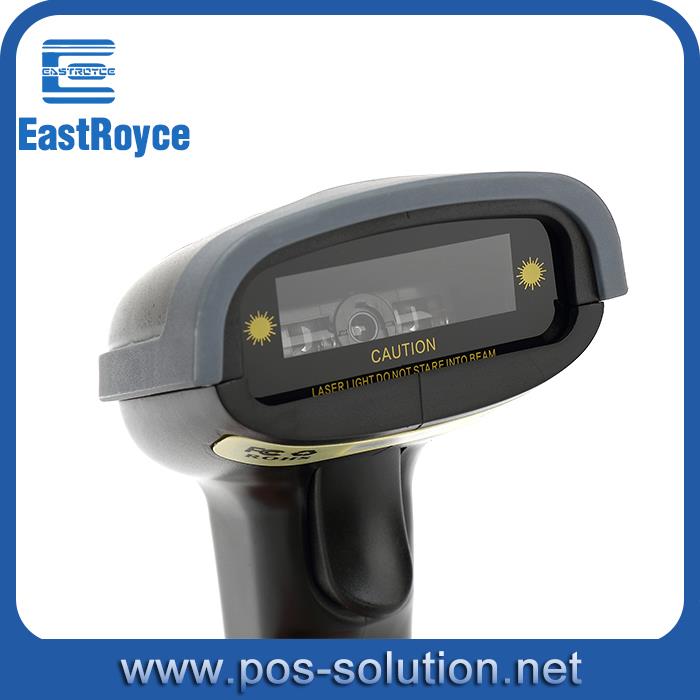

ER-B70-CCD Long Distance Handheld CCD Barcode Scanner
ER-B70-CCD is one of our economic CCD barcode scanners which is designed with high speed 32bit ARM processor. It has high decoding speed and supports scanning with Auto-induction .It has long distance CCD sensor. It can read screen barcode. It is Commonly used in logistics and express, supermarket, retail, E-commerce payment, inventory of goods and other industries.
Physical Characteristics | |
Material | ABS+PC+Rubber |
Size | 180mm*69mm*92mm |
Weight | 150g |
Cable | 1.8m |
Color | Black/White |
Performance Characteristics | |
Processor | 32 bits ARM |
Optics System | 1500 Pixel CCD sensor |
Light Source | RED LED (635nm) |
Resolution | 0.1mm(4mil) |
Print Contrast Minimum | 30% |
Scan angles | 45° |
Depth of Field | 4 mil: 0-12mm(PCS90%) |
Interface | Keyboard Wedge,RS232,USB(HID) interfaces |
Decode Type | Code39,Full ASC?Code39,Code32,Code128,Code93,Code 11,Codabar/NW7,AllUPC/EAN/JANcode |
Electrical specification | |
Voltage | 4.5V-5.25V DC±5% |
Operating current | 100-130mA |
Working current | 125mA |
Standby current | 45~50mA |
Operation condition | |
Operation temperature | +32”F to +105”F (0°C to + 50°C) |
Storage temperature | -15”F TO +140”F(-26°Cto 60°C) |
Operation humidity | 10% to 80%( non-condensing ) |
Storage humidity | 10% to 90% ( non-condensing ) |
Anti-condition light | 10000 Lux max(Fluorescence), 5000 lux max(sunlight) |
Anti-shake | 1.5 meter drop resistant |
Safety standard | CE,FCC ,ROHS compliant |
Industry class | IP30 |
