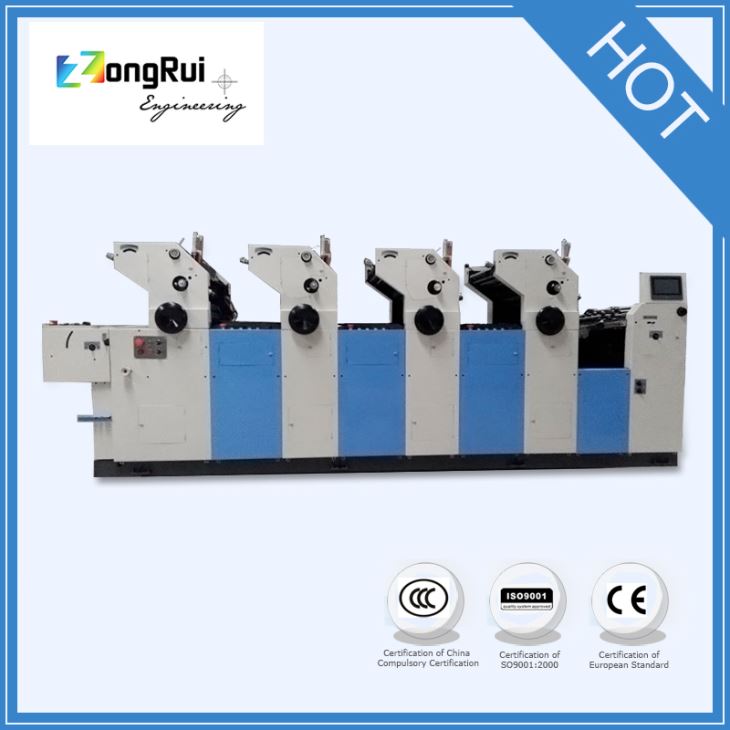

Four Color Newspaper Offset Printing Machine
Min.Order : 1 Pieces Quick Quotation >
Conpany Profile
Product Details
Weifang Zongrui Printing Machinery Co.,Ltd is one of the leading four color newspaper offset printing machine manufacturers and suppliers in China, welcome to wholesale customized four color leaflet offset printing machine from our factory.
This product machine is four color newspaper offset printing machine,Printing speed 7000 sheets/H.
This machine adopts electromagnetic presented counter. If the quantities printing work finishes, the paper feeding stops automatically.
So easy to operate,Support for main shaft drive to strengthen the system-Applicable.
There is the Machine parameters:
ZR462II | FOUR COLORS OFFSET PRINTING MACHINE (LIGHT TYPE) | |
Model | ZR462II | |
Max. sheet size | 620 × 450mm | |
Min. sheet size | 260 x 180mm | |
Max. print format | 605 × 440mm | |
Plate size | 620 × 485 × 0.15mm | |
Blanket size | 616 × 505 × 1.95mm | |
Paper size | 45-250gsm | |
Max. speed | 7000 sheets/hour | |
Speed adjustment | Frequency converter | |
Gripper margin | 8-10mm | |
Inking rollers | 14pcs per unit(3 forme) | |
Dampening rollers | 4pcs per unit(1 forme) | |
Power supply | 380v/50Hz | |
Main motor | 4kw | |
Air pump motor | 1.5kw | |
Machine dimension | 4350(L) × 1040(W) × 1460(H)mm | |
Net weight | 3200kg | |
Package dimension | 4650(L) × 1150(W) × 1720(H)mm | |
Gross weight | 3540kg |
