1.Name: wheel loader, earthmoving machinery
2.Max Lifting Capacity: 1 ton, 2 ton, 3 ton
3.Brand: XCMG
4.Feature: Large strength: the strong bucket breakout force of 17 ton and strong traction of 16.5 ton ensure that the machine could adapt to various tough condition.
Reliable operation: with the long wheelbase of 3300mm and long machine body of 8185mm, the machine is ahead in the industry in terms of the operation reliability.
High dumping: the dumping height of the long boom reaches more than 3.7m, leading in the industry.
5.Application: Mine and construction site
Description:
Articulated frame, small turning radius
The bucket can be automatically leveled
Hydro mechanical drive
Low pressure wide base tyre
All round and wide view cab which can be disassembled
The engine has strong power
The air cleaner adopts 3-stage filtration, which has good effect.
The power shift transmission has good reliability.
The cab has falling objects protection function.
Exhaust treatment system
Specifications:
LW200K Articulated Mini Wheel Loader parameters:
Overall dimensions (L*W*H) mm | 5520*1960*2850 |
Rated weight t | 2 |
Dumping clearance mm | 2350/2700/3000 |
Dumping reach mm | 900 |
Breakout fore KN | 50 |
Wheel base mm | 2200 |
Tread mm | 1490 |
Model | LR4108G75 |
Rated power kw | 64 |
Rated speed r/min | 2400 |
Ist(F/R) km/h | 6/6 |
2nd(F/R) km/h | 24/24 |
Total cycling time s | <10 |
Tyres | 16/70-20 |
Operating weight t | 6 |

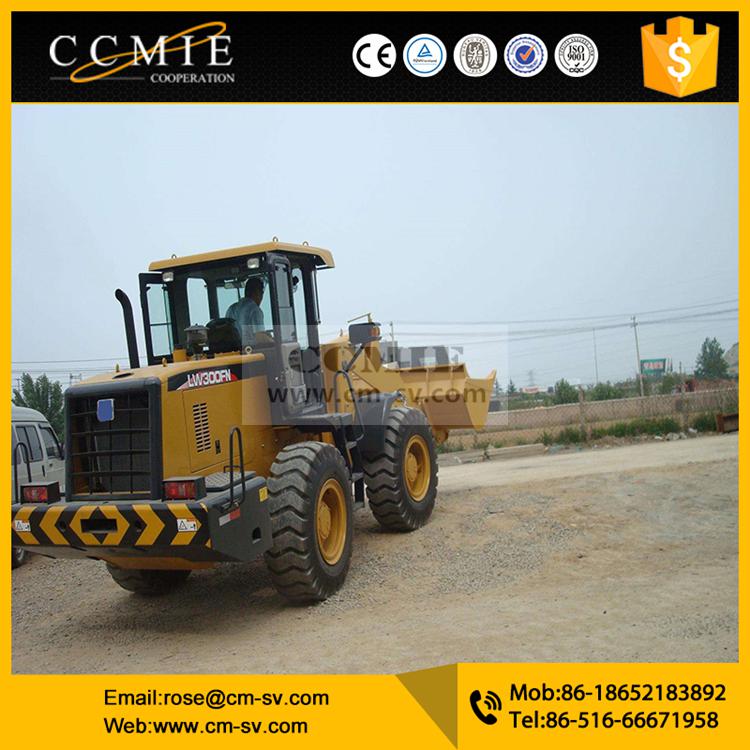

LW300FN Articulated Mini Wheel Loader parameters:
Item | Parameter | Unit |
Rated load | 3.0 | t |
Bucket capacity | 1.8 | m3 |
Dumping height | 2930 | mm |
Dumping distance | 1000 | mm |
Max.drawing force | =120 | kN |
Max. traction | =90 | kN |
Dimension (L×W×H) | 7250×2580×3290 | mm |
Operating weight | 10.6 | t |
Boom lifting time | 5.68 | s |
Total time of three devices | 10.3 | s |
Wheelbase | 2900 | mm |
Min. turning radius (bucket outer) | 6067 | mm |
Rated power | 92 | kW |
Long boom parameter | ||
Bucket capacity | 1.5/1.8 | m3 |
Rated load | 2.7/2.7 | t |
Dimension (Length × Width × Height ) | 7540×2580×3290 | mm |
Dumping height | 3290/3225 | mm |
Dumping distance | 1092/1172 | mm |
Operating weight | 10.6/10.8 | t |
Attachment parameter-grasping grass | ||
Dumping height | 3043 | mm |
Dumping distance | 2036 | mm |
Clamp body width | 2200 | mm |
Max. opening | 2800 | mm |
Attachment parameter-clamp(III) | ||
Dumping height | 2784 | mm |
Dumping distance | 1134 | mm |
Min. circle diameter | 590 | mm |
Max. opening | 1700 | mm |
Attachment parameter-side dumping | ||
Bucket width | 2650 | mm |
Dimension | 7414×2650×3290 | mm |
Dumping height (straight/side) dumping | 2813/3623 | mm |
Dumping distance (straight/side) dumping | 1104/183 | mm |
Lifting height (straight/side) dumping | 5120/6052 | mm |
Attachment parameter-Sliding fork | ||
Fork folding angle | 20 | ° |
Attachment length | 1575 | mm |
Attachment width | 1980 | mm |
Attachment height | 1200 | mm |
Fork teeth length | 1050 | mm |
Dimension Drawing:
Competitive Advantage:
(1) Excellent performance
Large strength: strong bucket breakout force of 12 ton ensures the adaption to various tough conditions. The strong boom lifting force of 7-ton ensures that the machine could meet various operation methods of heavy load.
Reliable operation: with the long wheelbase of 2900mm and long machine body of 7250mm, the machine is ahead in the industry in terms of the operation reliability.
Smooth driving: centered design of wheelbase, no speed difference between front and rear wheel, smooth turning and no abrasion of the tyre.
(2) High efficiency
Quick action: the total time of three devices is only 10.3s, leading in the industry.
Fast speed: reasonable gear arrangement, I gear of 7 km/hour, II gear of 14 km/hour, leading top in industry in terms of the operation efficiency.
Flexible steering: small turning radius; load sensing steering, flexible and efficient.
Sufficient power: famous engine, using the power efficiently and saving the energy effectively.
(3) High strength
Heavy load design, the front and rear frame adopt box type structure, thick board and high strength.
The key structural parts adopt the finite-element analysis to ensure that the machine could adapt to various kinds of dangerous working condition.
Large distance between up and down articulated plate, large wheelbase. The machine features higher strength and more reliable operation.
The machine weight reaches 10.6 ton, the length of 7.25m. The structural strength leads top in the industry.
(4) Long service life
Key articulated positions are of two-stage dustproof, featuring small abrasion and long service life.
Durable blade and bucket teeth feature longer service life.
The hydraulic pipeline adopts two-level sealing of 24° cone and O ring, settling the common issue of leakage.
The easily worn pipeline is equipped with the protection bush, prolonging the service life.
(5) Convenient maintenance
The engine hood adopts large side door of upturning design, featuring large opening angle and easy access.
It is convenient and easy to fill the oil to the brake system.
The hydraulic valve is easy to access, convenient for repair and inspection.
The grease fillers of integrated position provide more convenience for the maintenance of the shaft.
(6) Comfortable driving
The luxurious cab features large space and wide visibility.
Elegant adjustable instrument panel and comfortable operation.
Dual-lever gear shift control, no parking during the speed change, flexible and convenient.
Optional electric cabinet and air conditioner; more convenient operation, and more comfortable driving.
(7) Key breakthrough of leading level in industry
Start the vehicle manufacturing technology first in China, and adopt the all-metal mould pressing covering part, keep the color of the new vehicle through the electrophoretic coating.
Deliver, shipping and service:
Deliver: Accoriding to different products, normally in 30 working days.
Shipping: There are different types of ships according to different machines, and the shipping time will vary depending on the length of the distance;
Service: Warranty terms - one year. The engineer service need to pay the cost which happened in /out of China.
FAQ
Q: Which payment terms are available to us?
A: T/T term or L/C term. On T/T term, 30% down payment is required in advance, and 70% balance shall be settled before shipment. On L/C term, a 100% irrevocable L/C without "soft clauses" can be accepted.
Q: Which Incoterms 2010 terms can we work?
A: We XCMG are a professional and international company, accept all Incoterms 2010 terms, normally we work on FOB, CIF, CFR, CIP.
Q: How long will the delivery time take?
A: Normally it will take about 30-40 days to produce the ordered machines. Most of the time, we can have an immediate delivery of our regular machines in 20 days.
Q: Quality warranty
We grant our clients a fourteen-month or 2000-hours warranty for any machine purchased from us.
