FTTH Power Cable Self Supporting ADSS Optical Fiber Cable FOC Non Metallic Type Fiber Optic Cable

Description

ADSS cable is loose tube stranded, 200um / 250um fiber, is positioned into a loose tube which made of high modulus plastics. The tubes are filled with water-resistant filling compound. The tubes (and fillers) are stranded around a FRP as a non-metallic central strength member into a compact and circular cable core. After the cable core is filled with filling compound, it is covered with thin PE inner sheath. After stranded layer of aramid yarns are applied over the inner sheath as strength member, the cable is completed with PE or AT (anti-tracking) outer sheath.

Characteristics

• Can be installed without shutting off the power

• Light weight and small diameter reducing the load caused by ice and wind and the load on towers and backdrops

• Excellent AT performance, the maximum inductive at the operating point of AT sheath can reach 25kV

• Large span lengths and the largest span is over 1000m

• Good performance of tensile strength and temperature

• The design life span is 30 years

 Product Information

Item	Value
Model Number	ADSS
Number of Conductors	= 10
Application	Aerial Fiber Cable
Function	Delivery Signal Light
Certification	ISO 9001
Sheath Material	PE or AT for ADSS FOC
Fiber Type	OS1 / OS2, OM1, OM2, OM3, OM4
Length / roll	2km / 3km / 4km
Marking	Printing
Fiber Count	2 Cores to 288 Cores
Strength Member	FRP

 Specifications

Max. Allowable Working Tension	Break Strength	Year Average Working Tension	Weight		Diameter	Operation Temperature
			PE Sheath	AT Sheath
2.5	6.25	1.56	119	126	12.0	-40ºC ~ + 60ºC
3.5	8.75	2.19	121	129	12.2
4.5	11.25	2.81	124	132	12.3
6.0	15.0	3.75	128	136	12.5
7.0	17.5	4.38	131	139	12.7
8.0	20.0	5.0	134	142	12.8
9.0	22.5	5.63	136	144	12.0
10.0	25.0	6.25	138	147	13.0
11.0	27.5	6.88	142	150	13.1
12.0	30	7.5	144	153	13.2
14.0	35	8.75	148	157	13.5
16.0	40	10	154	163	13.7
18.0	45	11.25	159	169	14.0
20.0	50	12.5	164	173	14.2

Note: 1. Only a part of ADSS cables are list in the table, 2 ~ 36 fibers in the ADSS cable;
2. FOC will design the cable depending on the request of climate, span, voltage degree for                                          customers.

Delivery

We are a professional fiber optic product manufacturer with many experiences of successful foreign trade. If you want to buy better but cheap product, please contact us below. Best service and best factory price is waiting for you...

We send orders worldwide by DHL, UPS and FedEx, its lead time is about 3-5 days base on different quantity purchased.

We are unable to control the delivery time because it is processed by Third-party service but if the parcel has not arrived with expected time, please contact us we will help you to track it and give you a satisfied reply.

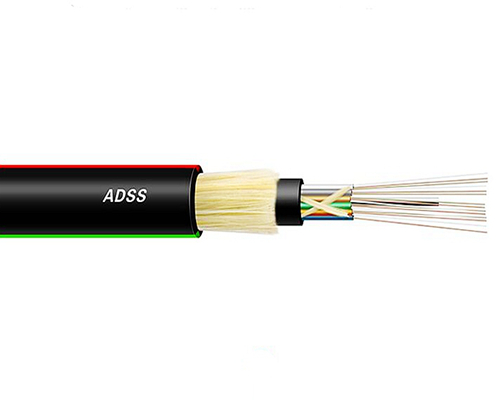

Product Structure
