Find high quality high capacity extrusion zlyj reduction gearbox for plastic machine with competitive price here. Please rest assured to buy high capacity extrusion zlyj reduction gearbox for plastic machine with Zhejiang Pinbo Plastic Machinery Co.,Ltd


1.Main Features:

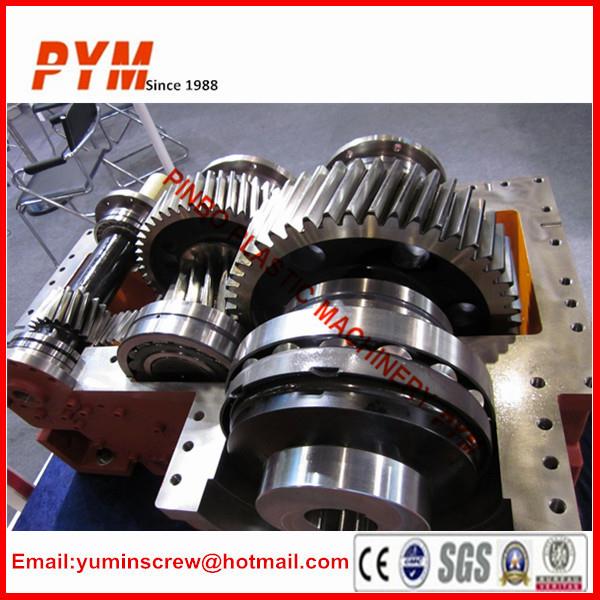

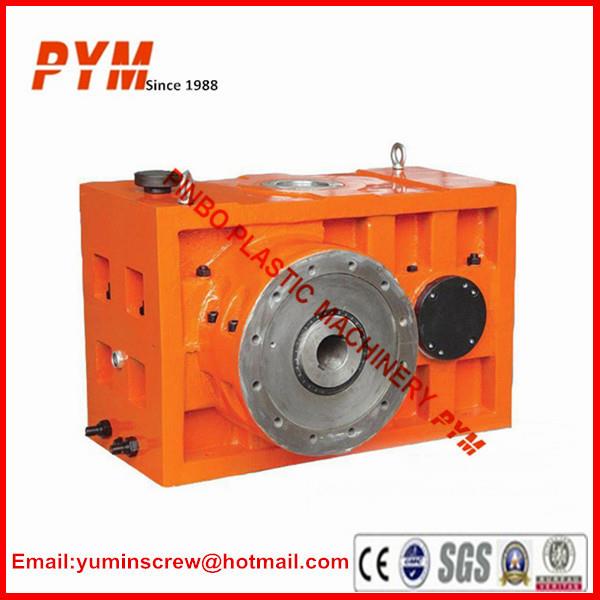

1)ZLYJ series speed reducers are high precision hardening tooth flank transmission part with thrust bearing housing. They are designed for plastic screw-rod extruder according to JB/T9050.1-1999. The gears and axes are made of high strength alloy steel. The gears are manufactured by way of carburizing hardening, precision grinding. Its precision is up to Grade 6(JB/T9050.1-1999.). Hardness of tooth flank is HRC54-62
2)Thrust bearing is in front of output hollow shaft to accommodate screw-rod back pressure forces. Bearings, oil seals and some other standard units are quality products and they can also be imported goods to meet customers' requirements. This kind of speed reducer has the characteristic of small volume, high load capacity, stable transmission, low noise, high efficiency. They properties reach levels of foreign products of the same kind and it can take place of them.

2.Working Conditions:
1)Input shaft rotation speed is not more than 1500r/min.
2)Its ambient temperature range is within 0 to 35 centigrade. If it is lower than 0 centigrade, pre-heating of the lubricant will be necessary before start-up, while cooling is suggested in case of a temperature higher than 35 centigrade.

1.MainTechnicalparameters:

Type	Spec	Input Power(kw)	N(enter)	N(output)	Output Torque	Permitted axial thrust of output shaft(KN)	Screw Diameter	Length-diameter ratio
					(N·m)
ZLYJ gearbox	112-8	5.5	800	100	525	35	Ø35	25:01:00
	133-8	8	800	100	764	39	Ø50	25:01:00
	146-10	11	1000	100	1050	54	Ø55	25:01:00
	173-10	18.5	900	90	1962	110	Ø65	25:01:00
	200-12.5	30	1000	80	3581	155	Ø75	25:01:00
	225-12.5	45	1000	80	5371	180	Ø90	25:01:00
	250-16	55	1120	70	7503	192	Ø105	25:01:00
	280-16	75	960	60	7643	258	Ø110	25:01:00
	315-16	85	960	60	13528	287	Ø120	25:01:00
	330-16	110	960	60	17507	360	Ø135	25:01:00
	375-16	132	960	60	21008	390	Ø150	25:01:00
	395-16	185	960	60	29442	400	Ø160	25:01:00
	420-16	160	960	60	31831	430	Ø160	25:01:00
	420-16	220	960	60	31831	430	Ø170	25:01:00
	450-20	213	1000	60	40640	500	Ø160/Ø170	25:01:00
	560-17	540	1000	50	84034	700	Ø200	25:01:00
	630-10	540	1000	50	103132	770	Ø250	25:01:00

Workshop show:

Packaging & Shipping


Our Services
1)Our productswithmore than1 year guarantee for products !
2)For each product will beinspectedbefore shipment !
3)We candesignthe drawing according to cusotmer request !

Company Information


FAQ
1.Q:What are we?
A:We are factory, with license of import and export goods by ourself.
2.Q:How to get to us?
A:The nearest airport is Wenzhou airport, and the nearest train station is Ruian station.
3.More details of our products ,pls feel free to contact us,thanks so much!
Welcome any of your inquiry about the goods you are interested in and greatly appreciate any comments or suggestions.

Welcome to contact us for more detail information and inquiry.
Please leave a message or inquiry below.
We will reply within 24 hours*7days*12monthes. Thanks for your cooperation!

With the aid of advanced equipment and technology, Pinbo Plastic Machinery is one of the leading China High Capacity Extrusion ZLYJ Reduction Gearbox for Plastic Machine suppliers. Please rest assured to buy or wholesale discount and low price products from us.
