1.Equipment Description

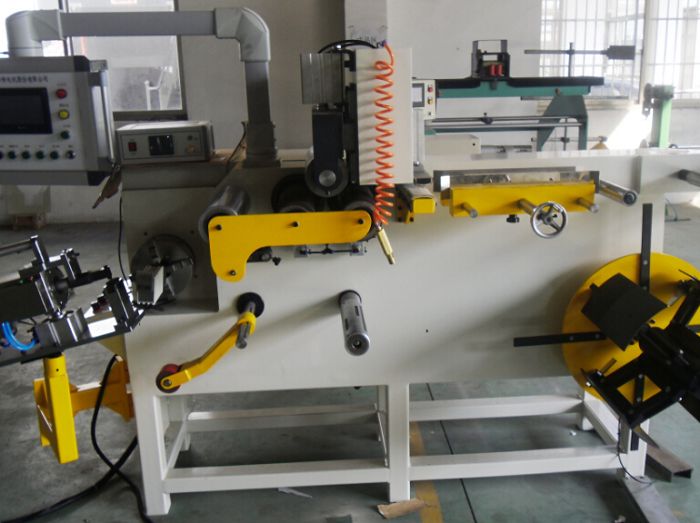

Foil Winding Machine, also named Foil Coil Winding Machine.

The foil coil takes different thickness copper or aluminum foil as conductor, wide strip insulation material as layer insulation to wind in the machine in roll size. The form of coil can be round, oval, rectangle etc. Each function of equipment provide enough support for making specification coil, which is strong in anti-shot circuit.

It adopts frequency conversion motor and PLC control system; HD operation screen carrys out conversation between people and machine; ball screw driving and direct ball guiding are also adopted.The machine has funcitons of auto-twine,clean, tension,and power memory etc. It is the essential equipment to produce such kind electrical products. High speed, high precision, high stability and automatic.

Compared with similar products, it has characters: solving twin difficulty completely; no need rectifying deviation; base position in start; easy operation; high efficiency in process; constant tension;compact structure;humanity design; high-automatic and various function etc. Which guarantee coil winding compact in axial and closeness.



2.Main technical parameter

No.	Item	Specification Parameter
1	Axial Length	300mm
2	Foil Thickness	Copper foil:0.3-3.0mm; Aluminum foil: 0.3-2.5mm
3	Gyration Outer Dia.(Include Lead line)	F450
4	Cylinder Expansion Range	f400-f520
5	Coil Form	Round/Oval/Rectangle
6	Winding Speed	0-35r/min
7	Speed Regulation Way	Frequency Conversion Step-less
8	Winding Power	3KW
9	Clamping Way	Four claw chuck

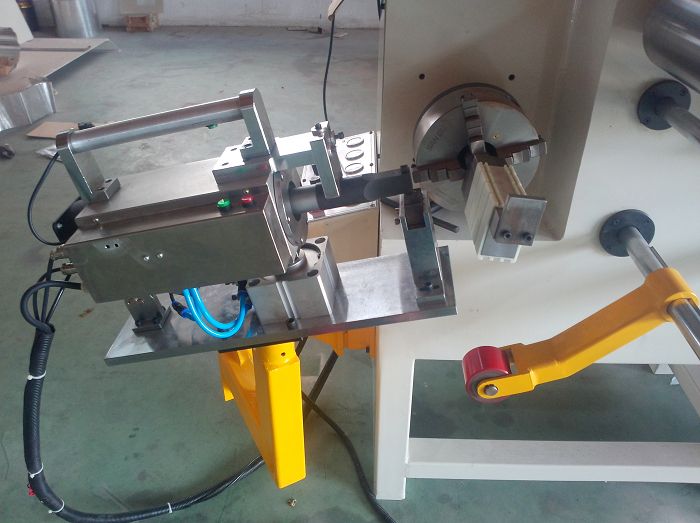

10	Welding way	Ultrasonic Welding
11	Foil Welding Thickness	0.1-0.8mm
12	Welder Power	3KW
13	Rectify Deviation Way	Photoelectric Sensing Automatic Rectify Deviation
14	Rectify Deviation Precision	±0.5 mm

Notice: The above parameters are for the standard configuration. We can produce at your requirement. Please feel free to contact me if you have any interest.
