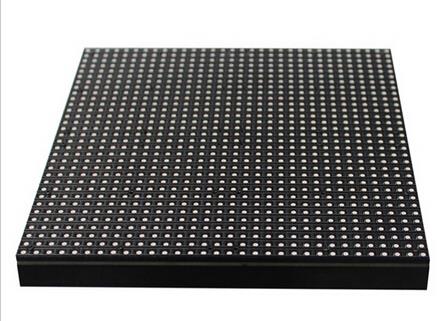

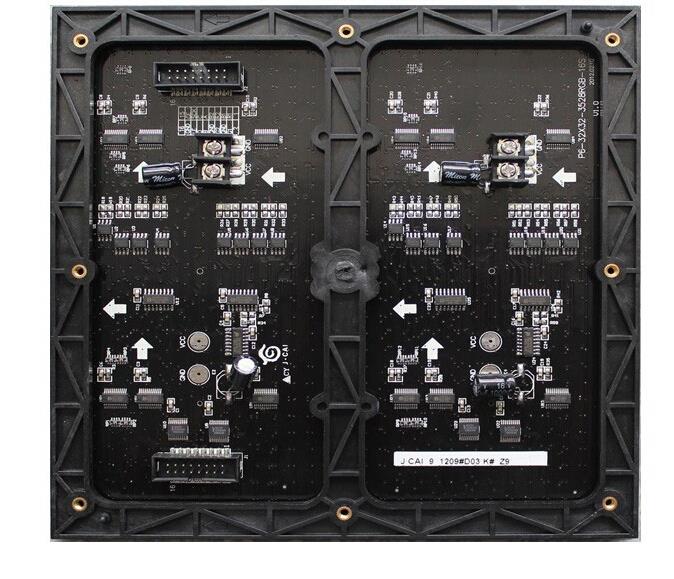

Unit module

Module size

192*192mm

Pixel pitch

6mm

Pixel density

27777dots/m2

Pixel configuration

3IN1

Led specification

SMD

Pixel resolution

W:32dots*H:32dots

Cabinet

Dimension

768mm*768mm*100mm

Quantities of module

16pcs

Power supply

2pcs

Thermal discharge

Fan*2pcs

Total weight

45kg/m2

Best viewing angle

6-300m

Temperature

Storage: -35°C~+85°C

Working: -35°C~+85°C

Thickness

10cm can adjustable

Remarks: cabinet size can changed, upon project need.

Power

Working voltage

AC220V/110V±10%

Average power consumption

500-800W

Max. Power consumption

=800W/sqm

Current

=20mA(single LED)

Control system

CPU

Pentium4 or above

Operating system

WIN98/2000/NT/XP

Control method

Synchronization

Main technical parameter

Driving device

1/8scan

Drive type

Constant Current driver IC

Refresh frequency

=1200Hz

Grey scale/colors

256 levels of each color(R/G/B)/16.7M color

Brightness of white balance

More than 1500 cd/sqm

Brightness adjustment

256 levels of each color(R/G/B)by software

Operating ambient humidity

10%--95%

Video signal

PAL/NTSC

Control system

DVI display card+full color controller card

MTBF

=10,000hours

Life span

=100,000hours

Flatness

Tolerance of interpixel =0.3mm

Tolerance of modules clearance=0.6mm

Power switch

Automatic switch

Display mode

768*768

Communication distance

Unshielded twisted pair net line transmission distance 100m, max transmission distance 200m.

Multi-mode Optic fiber transmission distance 500m;Single-mode optic fiber transmission distance 10KM

Software

LED studio
