JIS E1103-91/E1101-93 Steel Rail
Min.Order : 1 Pieces Quick Quotation >
Conpany Profile
Product Details
Product Image |
| ||||||
Product Name | JIS E STANDARD STEEL RAIL | ||||||
Standard | JIS E1103-93/ JISE1101-93 | ||||||

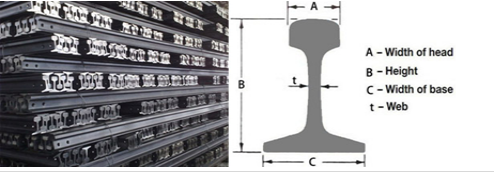

Model | DIMENSION | Weight | Material | Length | |||
A(mm) | B(mm) | C(mm) | t(mm) | (KG/M) | (m/PC) | ||
JIS 15KG | 42.86 | 79.37 | 79.37 | 8.33 | 15.2 | 55Q | 9-10 |
JIS 22KG | 50.8 | 93.66 | 93.66 | 10.72 | 22.3 | 55Q | 9-10 |
JIS 30A | 60.33 | 107.95 | 107.95 | 12.3 | 30.1 | 55Q | 9-10 |
JIS 37A | 52.71 | 122.24 | 122.24 | 13.49 | 37.2 | U71Mn | 10-25 |
JIS 50N | 65 | 153 | 127 | 15 | 50.4 | U71Mn | 10-25 |
CR 73 | 100 | 135 | 140 | 32 | 73.3 | U71Mn | 10-12 |
CR 100 | 120 | 150 | 155 | 39 | 100.2 | U71Mn | 10-12 |
Note: Information listed above only for reference, pls contact us for safe. | |||||||
As a professional rail products manufacturer in China, we can provide high-quality Japanese standard steel rails with various sizes as listed above to meet your special requirements.
Our steel rails offer greater efficiencies through their ability to handle higher axle loads with low deformation,with high strength and good weldability and high fracture resistance.
