Product Description

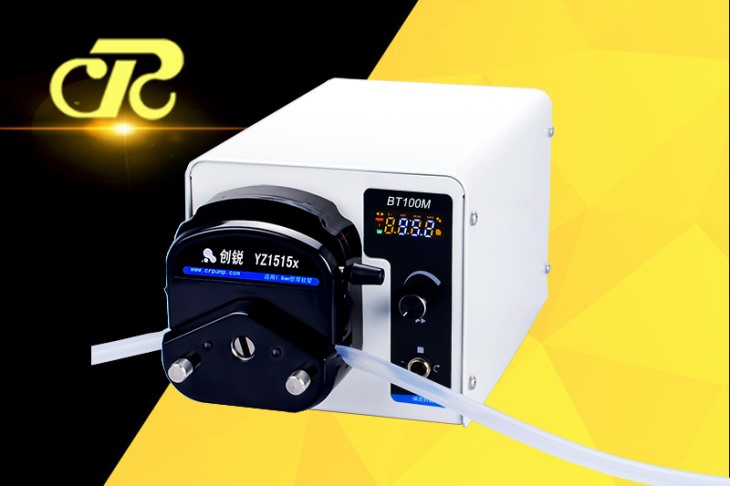

The basic type peristaltic pump BT100M has 4-led to display the flowrate or speed .with 2 mode optional. It also has flow calibration function. With a variety of control methods, with the communication interface to provide users with communication protocol, users can request custom PC software for remote control.

Function and Features:

*With liquid calibration, flow rate displaying function.

*This product can be installed by YZ1515x, YZ2515x, DG series pump heads.etc..

*With both-way large torque, low power motor. It can be connected with several pump heads to satisfy the different demands of flow rates.

*Long life, digital rotary knob, easy to operate, high control precision, and ensure to transfer the high precision fluid.

*FULL SPEED button available for filling in & emptying out the tubing.

*Memory function available in case of power off and it will continue the work once the power was restarted.

*Long-range control is available through the DB15 interface of the drive: speed control, start-stop control, direction control.

*Has RS485 communication interface, supports MODBUS communication protocol. And communication protocols customized is available.

*Good cost performance.

Typical Applications

*In the laboratories of colleges and research institutes

*Water treatment sampling

*For liquid chromatography

*Assort with dry granulating machine

*Filtration of cell culture fluid

Technical parameters:

Drive type	BT100M	BT300M	BT600M
Tech. parameters
Revolving speed range	0.1-100rpm	0.1-300rpm	0.1-600rpm
Speed resolution	0.1rpm
Flow rate range	0.0015-380ml/min	0.0015-1140ml/min	0.0015-2280ml/min
Speed error	<0.5%
Control method	Rotary encoder knob to adjust revolving speed
Display	4-digit LED displaying current speed or flow rate
Power supply	AC220V±10% (standard); or AC110V±10% (optional).
Power consumption	<22W	<35W	<50W
External control interface	Start/stop control, direction control, speed control.
	(0-5V, 0-10V, 4-20mA to be optional)
	RS485 communication interface
Environment temperature	0-40? Relative humidity <80%; non-condensing
Drive dimension	234*144*140 (mm)		254*184*145 (mm)
Drive weight	3.98kg	4.3kg	4.8kg
Protection grade	IP31

Ordering guide

Each Drive can run with several different pump heads .and the YZ1515x/YZ2515x can run with at most 4 channels . you can depend on your requirement to choose it .

Drive	Pump head	Tubing	Flow rates (mL/min)
BT100M	YZ1515x	13# 14# 19# 16# 25# 17# 18#	0.07~380
	YZ2515x	15# 24#	0.29~290
	N*YZ1515x	13# 14# 19# 16# 25# 17# 18#	0.07~380 per channel
	N*YZ2515x	15# 24#	0.29~290 per channel
	ZN25	24#	0.29~290
	313D	13# 14# 19# 16# 25# 17# 18#	0.07~380
	DG –N(6)	0.5*0.8, 1*1, 2*1, 2.4*0.8, 3*1.	0.0015~45 per channel
	DG –N(10)	0.5*0.8, 1*1, 2*1, 2.4*0.8, 3*1.	0.0015~32 per channel
