Product name: Lattice LED light

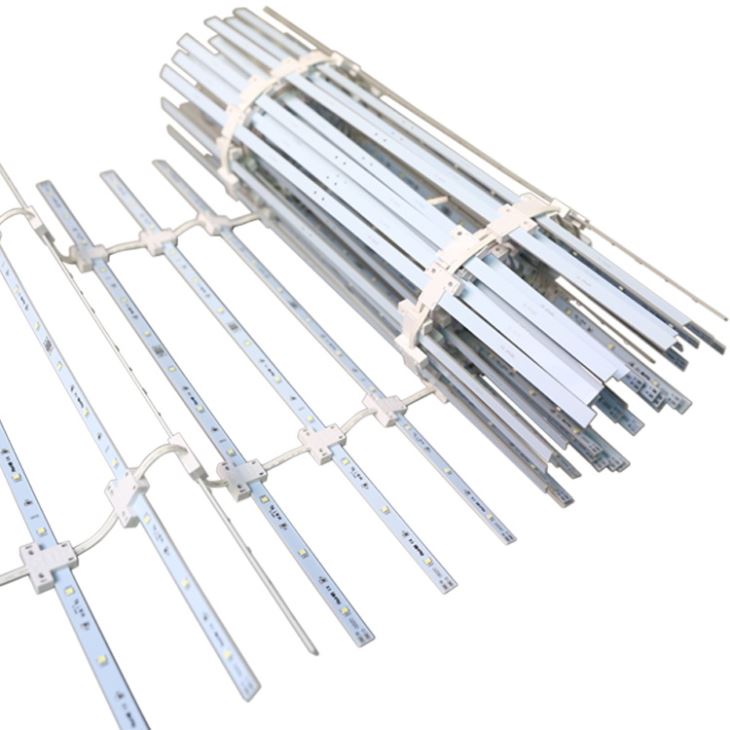

Lattice LED light is a latest technology for Advertising light box business, which is a perfect alternative to traditional fluorescent tubes. The Lattice is powerful, efficient and affordable. It is also called LED Curtain, LED Grid, LED Ladder, LED Mesh, LED Net Light, LED Matrix Light, LED Dot Matrix, LED Light Grid etc. Features of easy-to-install, high bright and less maintenance.
Parameter of Lattice LED light
Model: HA1100A | |
SMD Type | 2835 1chip |
Voltage | 12 volt dc |
Power consumption | 3.12 Watts /500 mm /19.68’’ |
LED quantity | 12 LEDs /500 mm /19.68’’ |
Current consumption | 65 mA |
Size per PCB | 500(L)x10(W)x7.5(H)mm, |
Luminous flux | 370-420 LM |
Efficacy | 130LM/Watt |
Main material | Glass fiber PCB |
angle | 120° |
features | *Non waterproof *various length and color temperature are available by customized order |
Specifications subject to change without notice.
PHYSICAL: 500(L)x10(W)x7.5(H)mm,
Strip spacing is optional
1) light box deep over 120 mm
2) 100 mm deep light box

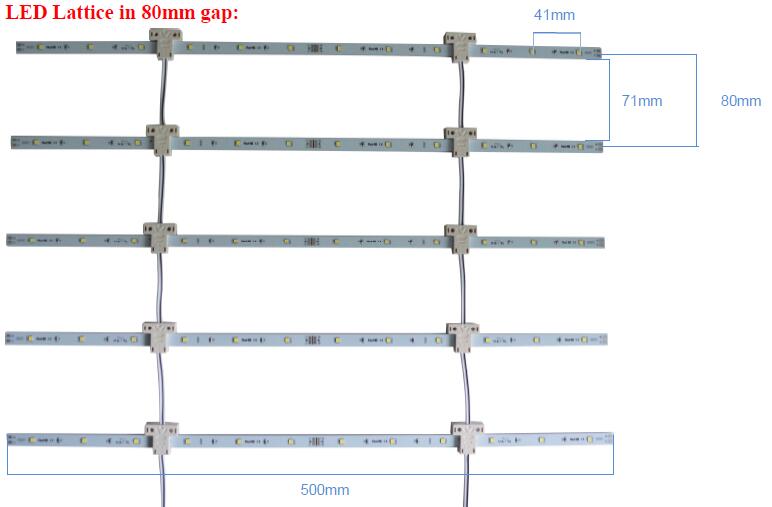

3) 80 mm deep light box
