LEDmo SMD 2835

Min.Order : 1 Pieces Quick Quotation >

Conpany Profile

6 YRS Guangdong Elite Optoelectronic Technology Co.,Ltd

Transaction Level:

elite1@elitebm.com

+8613798703095

Product Details

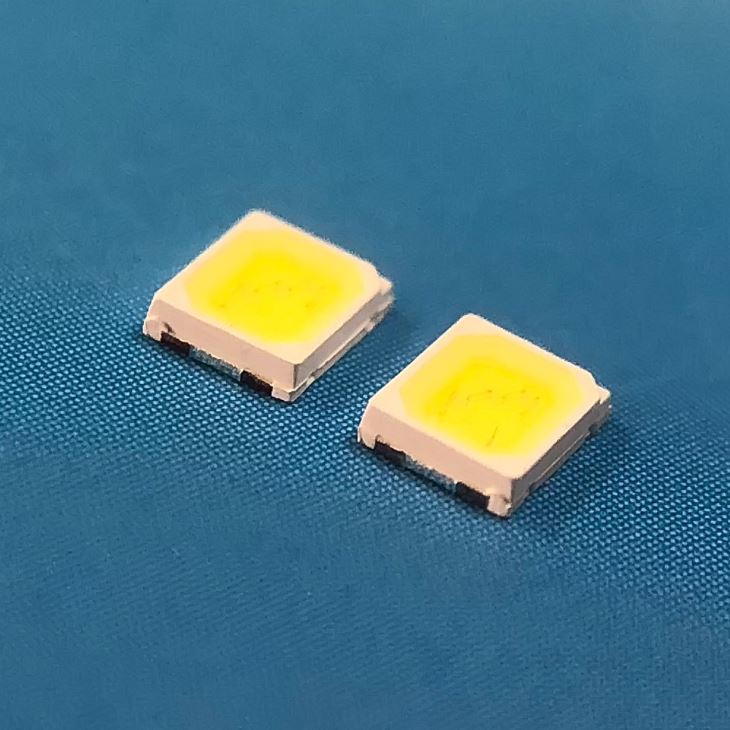

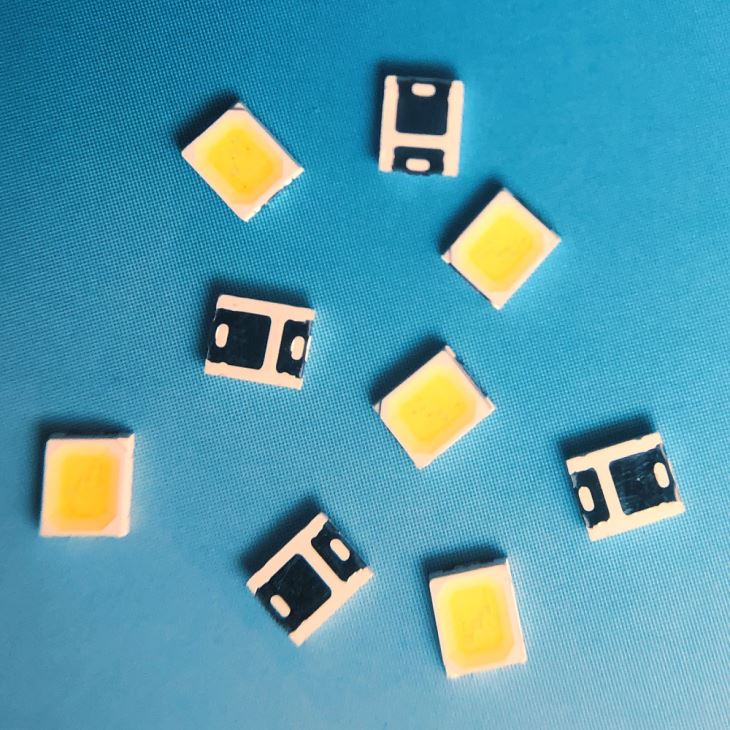

Find high quality ledmo smd 2835 with competitive price here. Please rest assured to buy ledmo smd 2835 with Guangdong Elite Optoelectronic Technology Co.,Ltd

Feature:

Viewing angle:120 deg

The materials of the LED dice is InGaN

3.50mm×2.80mm×0.8mm

RoHS compliant lead-free soldering compatible

Package Outline

Unit:mm


NOTES:

1. All dimensions are in millimeters;

2.Tolerances are±0.05mm unless otherwise noted.

?Absolute maximum ratings Ta=25±3?

Parameter	Symbol	Value	Unit
Power dissipation	Pd	0.5	W
Forward current	If	30	mA
Reverse voltage	Vr	5	V
Operating temperature range	Topr	-20~+85	?
Storage temperaturer range	Tstg	-40~+100	?
Pulse Forward Current	Ifp	40	mA
Electrostatic Discharge	ESD	2000(HBM)	V

?Electro-optical characteristics Ta=25±3?

Parameter	Test Condition	Symbol	Value			Unit
			Min.	Typ.	Max.
Forward voltage	If=30 mA	Vf	18	--	20	V
Luminous intensity	If=30 mA	F	60	--	70	Lm
Viewing angle 50% Iv	If=30 mA	2? 1/2	--	120	--	Deg
Reverse current	Vr=5V	Ir	--	--	10	µA
ColorTemperature	If=30 mA	TC	2500	--	7500	K
Chromaticity CIE	If=30 mA	CIE
CRI	If=30 mA	Ra	=80
NOTES:
1. Luminous Flux measurement tolerance:±10%
2. Forward Voltage measurement tolerance:±0.1V
3. Color Temperature measurement tolerance:x,y±0.01
4.CRI measurement tolerance:±2

? Typical optical characteristics curves


? Intensity Bin Limit (IF = 30 mA)

Bin code	Flux(lm) for reference
Bin code	Min	Max
2500K-3500K	60	65
3500K-7500K	65	70

? VF Bin Limit (IF = 30 mA)

Bin code	Min.(V)	Max.(V)
1	18	20

? Chromaticity CIE

Requirements for application and reflow soldering

Reflow Soldering

Pre-heat

120~160?

Pro-heat time

120 seconds Max.

Peak temperature

245? Max.

Soldering time

10 seconds Max.

Condition

Refer to Temperature-profile

After reflow soldering rapid cooling should be avoided

Use the following conditions shown in the figure.

<Pb-free solder> <Lead solder>

??44.png ??43.png

1.Reflow soldering should not be done more than two times

2.When soldering,do not put stress on the LEDs during heating

Our Advantages:

?High Quality---- Quality Raw Material, Advanced Facilities, Fine Procedures.
?High Productivity
?Fast Delivery
?Leading Level R & D Department
?Experienced Marketing Manager
?Professional Design Department
?Accept OEM & ODM
?Excellent After-sales Service

Application:

1. car: dashboard, brake lights, turn signals;

2. Backlight: LCD screen, keyboard, advertising keyboard;

3. Status indication: consumption or industrial electronic devices;

4. Other use occasions.


Packaging & Delivery

Packaging Details
4000pcs/reel, each reel Anti-static vacuum Bag

Delivery Time
Shipped in 3-5 days after payment
