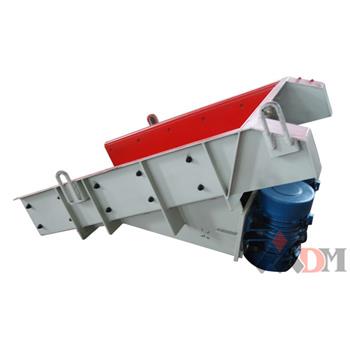

GZG series of vibrating feeder
Feeder size:=300mm
Production capacity:100-350t/h
Product introduction
GZG Suspended vibrating feeder machine series is widely used in the crushing machine and screen combination machinery of metallurgy, coal mine, beneficiation, artificial sand making machine, building rubbish collection, building material, chemical industry, and grinder material industry. It adjusts suspended installing, Massive, granular and powdery material enters into the crushing machine from the storage bunker through the suspended vibrating machine.
Model | Tank size (mm*mm) | Maximum feed Particle size (mm) | Processing capacity (t/h) | The eccentric shaft Speed (r/min) | Power (kW) | Weight (T) | Appearance size (mm) |
GZG8012 | 1200×800 | 200 | 80-160 | 1.2×2 | 0.5 | 2580×1430×600 | |
GZG1014 | 1400×1000 | 300 | 160-300 | 1.5×2 | 0.7 | 3260×1200×850 |
The feeding machine is mainly formed with two set ZG type inertia vibrator, shock absorber, feed trough of three parts. Because 2 sets inertia vibrator are symmetric installed on the feeding trough, Feeding trough is do harmonic vibration movement along the force direction. The feeding process of the feeder is feeding trough do reciprocating linear vibration along the direction of dip to achieve it. when the feeding trough's vibration acceleration in vertical tank bottom direction is greater than the acceleration of gravity in vertical tank low direction of the component, the material on the trough is threw up, and do jumping forward movement according to the parabolic trajectory. Every time trough do vibration, material will be threw up once. Such materials do jumping movement with continuous trough vibration frequency to achieve feeding purpose.
