• GW50C adopts the fully enclosed GEAR BOX for less distortions even under the condition of heavy loads.

• GEARS, GEAR SHAFTS, WORKING DISK, STOP GAUGE, SADDLES, PILE HEAD and PILE HEAD BUSHES made of forged high-quality alloyed steel with proper heat treatment (quenching/ tempering/ high frequency) and 2 mm thick external case to ensure high performances also under heavy loads and long working life.

• Dust proof BRAKE MOTOR and TWO LIMIT-SWITCH to ensure the accuracy of the bending angle also after stopping and restarting.

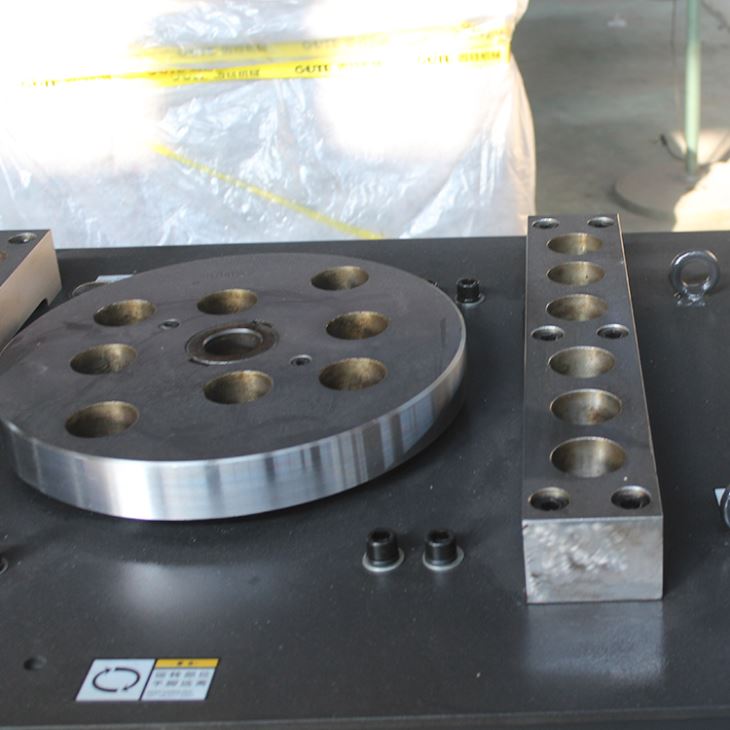

• Insert-pin type disk and movable saddles for a precise adjusting of the bending angle.

• CE Certification (2006/42/EC - 2006/95/EC).

MOTOR TYPES

GW50C-4 (automatic)  • MOTOR TYPE: YEJ 112M-4 DUST PROOF (Brake motor)

• MOTOR POWER: 4,0 kw-4P

GW50C-1 (manual)

• MOTOR TYPE: Y 112M-4  DUST PROOF

• MOTOR POWER: 4,0 kw-4P

* Both kinds of motors automatic and manual have 1 year warranty.

* VOLTAGE OPTIONS: any voltage from 220 to 440 / 220-380 (switchable)

FREQUENCY OPTIONS: 50Hz / 60Hz

STEEL   BAR BENDER GW50C AUTOMATIC / MANUAL
Bending Capacity	6-42mm (ob =450N/mm2)	6-40 mm (ob =650N/mm2)
Operation	Automatic	Manual
Type of Motor	YEJ 112M-4 (Brake motor)	Y 112M-4
Motor Power	4 KW-4P	4 KW-4P
Motor Rotation Speed	1440 R/min	1440 R/min
Speed of Working Disk	9 R/min	9 R/min
Noise Value (1m away)	=75dB(A)	=75dB(A)
Weight	476 Kg.	465Kg.
Dimension	1000*800*900 mm	1000*800*900 mm
Certification	ISO 9001:2008
