Min Sheet Metal Roll Forming Machines Introduction

Product Details:

Place of Origin:	WUXI CHINA
Brand Name:	LONGBO
Certification:	CE; ISO9001
Model Number:	LB-1220-1250

Payment & Shipping Terms:

Minimum Order Quantity:	1 set
Price:	negotiation
Packaging Details:	water proof package
Delivery Time:	60 days
Payment Terms:	L/C, D/P, T/T
Supply Ability:	3 per month

Material:	PPGI	Input Sheet Thickness:	0.3~0.8mm
Guarantee:	5 Years	Material Of Rollers:	#45
Hardness:	HRC58~62 Degree	Decoiler:	5 Tons Capacity, Hydraulic

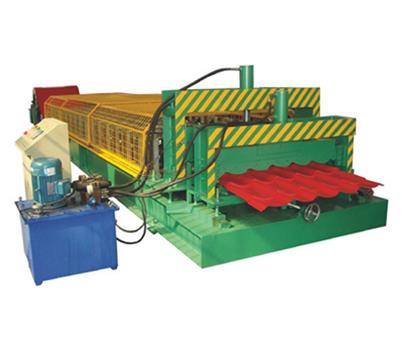

Forming Speed 0-15m/min Tile Roll Forming Machine For Metal Roof Tile steel

Main Specification

Material	Thickness	0.3-0.7mm
	Coil Width	Customized, 1000mm or 1200mm or 1250mm
	Yield Strength	250-300 Mpa
	Material	PPGI,Color Steel,GI
Decoiler/Uncoiler	Uncoiler Type	Manual or Hydraulic or Auto Type
	Coil Width	Max. 1250mm
	I.D	508-610mm
	O.D	Max. 1500mm
Tile Roll Forming Machine	Forming Stations	13-18 Stations ( Depend on Profiles )
	Roller material	45# steel, surface coated with 0.05mm hard chrome
	Diameter of shaft	76mm
	Shaft material	High grade 45# steel
	Drive type	Chain transmission
	Forming speed	0-15m/min
	Main power	5.5KW

Product Description

1.Hydraulic Station: Famous Chinese brand

2.Hydraulic Power: 5.5KW

3.Cutting type: Hydraulic cutting

4.Cutting Die Material: Cr12Mov steel, HRC58-62

5.CuttingTolerance: 10m+/-1.5mm

6.Encoder: OMRON Brand

7.PLC: PANASONIC Brand

8.Inverter: YASKAWA Brand

9.Touch screen: PANASONICE

10.Operation type: Touch screen & Button

Components

Decoiler ---------------------------------------------- 1 Unit

Feeding guide -------------------------------------- 1 Unit

Main roll forming machine ------------------------ 1 Unit

Hydraulic pressing device -------------------------1 Unit

Hydraulic cutting device --------------------------- 1 Unit

Hydraulic Station ----------------------------------- 1 Unit

PLC computer control ------------------------------1 Unit

Output tables ---------------------------------------- 2 Units

Work Flowing

Decoiler --- Feeding Guide --- Film Covering --- Roll Forming --- Pressing --- Cut-to-length --- Run out table

Application

Glazed tile, Roof Tile, Metal roof tile; steel roof tile; color steel tile; color glazed tile; wave tile; steel roofing sheet; metal roof panel; steel roof panel; roof wall cladding; roof cladding; wall cladding

Advantages

High Quality

Reasonable Price

Good after Service

1 Year Warranty

More Than 10 Years Experience
