PCM-L16S30-A44 LiFePO4 Smart Battery BMS 16S 48V 30A with Commnication and LED Fuel Gauge
Min.Order : 1 Pieces Quick Quotation >
Conpany Profile
Product Details
PCM-L16S30-A44 lifepo4 smart battery bms 16S 48V 30A with commnication and LED Fuel gauge
Features:
1.Apply for 48V 16 Cells Li-Ion Battery Pack with discharging current 30A, Max charging current 30A
2. SOC,voltage,current,capacity,remaining capacity,temperature,cycle times of battery pack
3.To prevent the 48V battery packs from overcharge,overdischarge,over current, over temperature ,short circuit;
4..Compatible with all the LiFePO4 cells.
Protection Circuit Module Specifications For V LiFePO4 Battery Pack | ||||

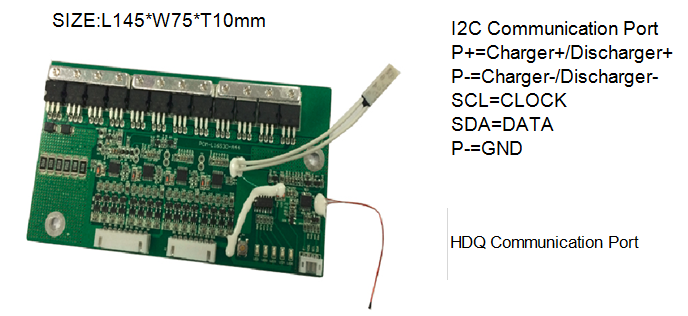

Model:PCM-L16S30-A44(16S) | ||||
IC(BQ34Z100) With SMBUS Communication Port | ||||
No. | Test item | Criterion | ||
1 | Voltage | Charging voltage | DC: 57.6V CC/CV(3.6V/1cell) | |
Balance voltage for single cell | 3.6V±0.025V | |||
2 | Current | Balance current for single cell | 50mA±5mA | |
Current consumption for single cell | =20µA | |||
Maximal continuous charging current | 40A | |||
Maximal continuous discharging current | 40A | |||
3 | Over charge Protection ( single cell) | Over charge detection voltage | 3.9±0.025V | |
Over charge detection delay time | 0.5S—2S | |||
Over charge release voltage | 3.6±0.05V | |||
4 | Over discharge protection ( single cell) | Over discharge detection voltage | 2.0±0.07V | |
Over discharge detection delay time | 10—30mS | |||
Over discharge release voltage | 2.5±0.1V | |||
5 | Over current protection | Over current detection voltage | 0.2±0.015V | |
Over current detection current | 80±10A | |||
Detection delay time | 5ms—20ms | |||
Release condition | Cut load | |||
6 | Short protection | Detection condition | Exterior short circuit | |
Detection delay time | 200-500us | |||
Release condition | Cut load | |||
7 | Resistance | Protection circuitry(B- TO P-) | =30mO | |
8 | Temperature | Operating Temperature Range | -40~+85? | |
Storage Temperature Range | -40~+125? | |||
Over Temperature protection(discharge) | 60±5? |
Leveraging on advanced equipment and technology, Leadyo Technology manufactures and trades various pcm-l16s30-a44 lifepo4 smart battery bms 16s 48v 30a with commnication and led fuel gauge products. Through years' development, we are now known as one of the leading manufacturers and suppliers of various batteries in China. Should you are interested in it, welcome to buy the customized battery from our factory.
