Plate Fin Heat Exchanger AH1470T-C
Min.Order : 1 Pieces Quick Quotation >
Conpany Profile
Product Details
Shanghai Coxin Technology Co.,Ltd is one of the best electric motor air oil cooler AH1470T-C manufacturers and suppliers in China, welcome to buy discount and wholesale low price electric motor air oil cooler AH1470T-C from our factory.
Product Name: Plate Fin Heat Exchanger
Model No.: AH1470-C*
Product Introduction
Plate fin heat exchanger AH1470 rated flow up to 200L/M, the Max.working pressure is 2.0MPa, the Max. Working temperature is 120?,while the pressure >2.0MPa, a by-pass valve should be installed.
Product Features
1. Material: High strength of alloy aluminum, stainless steel;
2. Construction: compact and rugged;
3. Color: blue, yellow or pointed;
4. Maximum Standard Working Pressure: 2.0MPa
5. Range: 20+ models to cover flow ratings of 10 to 500L/Min;
6. Power supply: 110VAC/220VAC/380VAC/12VDC/24VDC or customers’ demand;
7. Various type: Electric motor, hydro motor, pneumatic motor, explosion-proof for different application;
8. Approvement: ISO, CE, SGS;
9. Customized manufacture is available.
Product Application
Hydraulic,environmental, forging, casting, railway, cement, machinery etc..
Product Parameters
Model | AH1470-CA220 | AH1470-CA380 | AH1470-CD24 | |
Pressure(Bar) | 20 | |||
Flow(L/Min) | 200 | |||
Fan Parameters | Diameter | 330mm | 310mm | |
Phase | 1¢ | 3¢ | / | |
Voltage(V) | AC220 | AC380 | DC24 | |
Watt(W) | 110 | 95 | 216 | |
Ampere(A) | 0.5 | 0.3 | 9 | |
Connection Screw | PT1 1/4'' | |||
Dimensions(L*W*H) | 570*375*405 | 570*345*405 | 570*255*405 | |
Note | For tank line or independent loop |

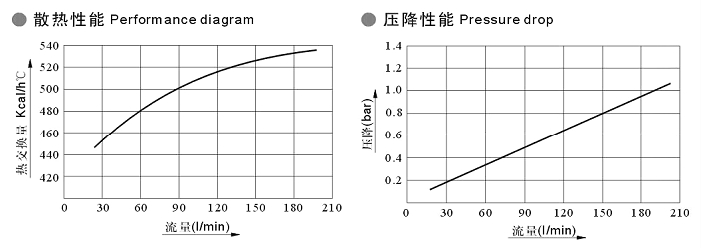

Product Characteristic Curve

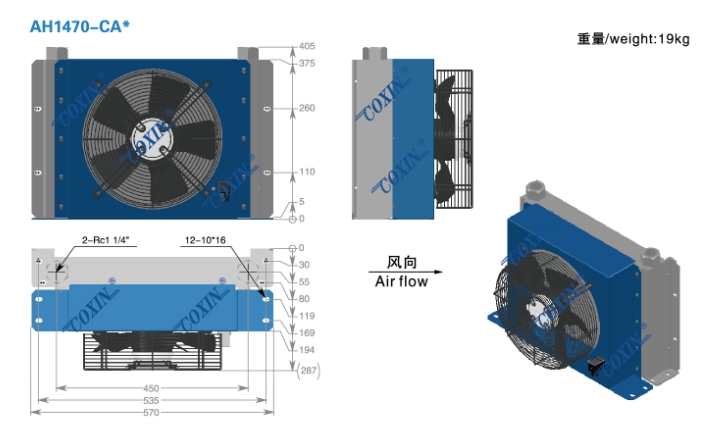

Product Dimension
Our Service
Cooling the heat!
For most standard models we have stock, the lead time is about 1~3 working days; for special design, we can delivery in 1~2 weeks; the package is inner carton & outter plywooden case for exporting shipment; MOQ of 1pc is acceptable; 3D/CAD drawing and technical support also we can provide.
