Polygonal Steel Pole High Mast Light Post
Min.Order : 1 Pieces Quick Quotation >
Conpany Profile
Product Details

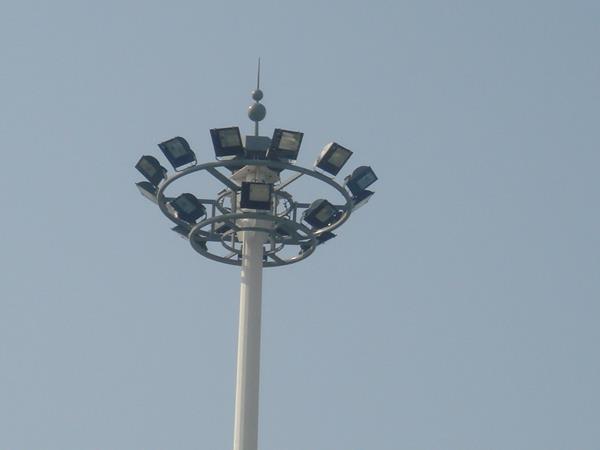

Polygonal Steel Pole High Mast Light Post with Three Section
Hot Sale Height and Simple Size for reference:
Height | Diameter and thickness(mm) | Flange |
20m | 250*420 6mm-8mm | 600*20 |
25m | 240*480 6mm-6mm-8mm | 850*20 |
30m | 240*620 6mm-8mm-10mm | 1100*30 |
35m | 280*680 6mm-8mm-8mm-10mm | 1300*35 |
Specifications:
Pole Body | |
Design | Design Standard: AASHTO standard Wind speed:160km/h Anti-seismic design: more than level 7 Suit for: Airport, seaport, plaza, stadium, square, highway Style: variable as per customer request |
Material | Usually Q345B/A572, Q235B/A36, as well as hot rolled coil from Q460, ASTM 573, GR65, GR50, SS490 Nuts & Bolts: Grade8.8 |
Minimum yield strength | 355mpa |
Min/Max tensile strength | 490mpa/620mpa |
Height | From 8m to 35m |
Shape | Conoid, Multi-pyramidal, columniform, polygonal or conical |
Joint of poles | Insert mode, inner-flange mode, face to face joint mode |
Length of Section | Within 14m once forming without slip joint |
Base Plate | Square/round/polygon with slotted holes for anchor bolts |
Welding | Internal and external double welding CO2 welding or submerged arc auto methods Standard: American Welding Standard D1.1 |
Galvanization | Thickness of zinc layer:>=86µm Service Life: not less than 30 years |
Spay | Stable quality of plastic layer and strong adhesion Service life not less than 30 years |
Lighting Fixture | |
Housing | Constructed from aluminum with protection degree more than IP65 |
Light Source | Sodium Lamp/Energy-saving Lamp/LED |
Power | From 250W to 2000W |
WorkingTemperature | -35? to +45? |
The Raising and Lowering System | |
Components | Lighting rod, closed mast-top assembly, latching mechanism, crown, |
Function | Guarantee the safety and reliability of operating |
Electric Control System | |
Bottom door is equipped with multi-function electric control box with many sets of air switches which can control lamps separately. | |

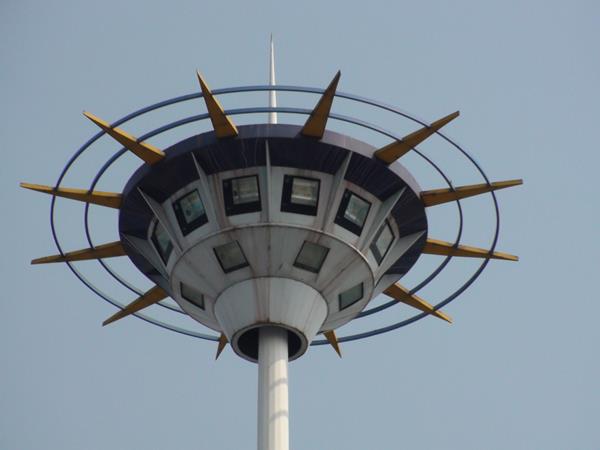

Related High Mast Pole:
Our Services:
1, Various poles such as street lighting poles, high mast light poles, sporting lighting poles, telescoping camera poles, traffic poles, electric poles, flag poles are all acceptable.
2, More than 20-years design&manufacture experience ensures professional design and perfect production performance, also Auto-CAD drawings can be worked out by your requirement.
3, ODM and OEM are available, send us your drawings of your street lights or tell us the road conditions, we will work out satisfactory solutions for you.
