SDS1000 Series Super Economical Type Digital Oscilloscope
Min.Order : 1 Pieces Quick Quotation >
Conpany Profile
Product Details
- Bandwidth : 20MHz - 100MHz
- 2-Channel
- Sample rate : 100MS/s -1GS/s
- Ultra-thin body
- 7 inch high resolution LCD
- SCPI, and LabVIEW supported
Model No. | Channel | Bandwidth | Sample Rate | Record Length |
SDS1022 | 2+1 | 20MHz | 100MS/s | 10K |
SDS1102 | 2+1 | 100MHz | 1GS/s | 10K |
1.large display
7’’ high resolution LCD brings more waveform detafulfilling better visual effect.
2.Friendly UI interaction
Easy-accessible operation menu gets you to the result conveniently.
3.Windows extension
The function facilitates the observation of abnormal signal from full waveform.

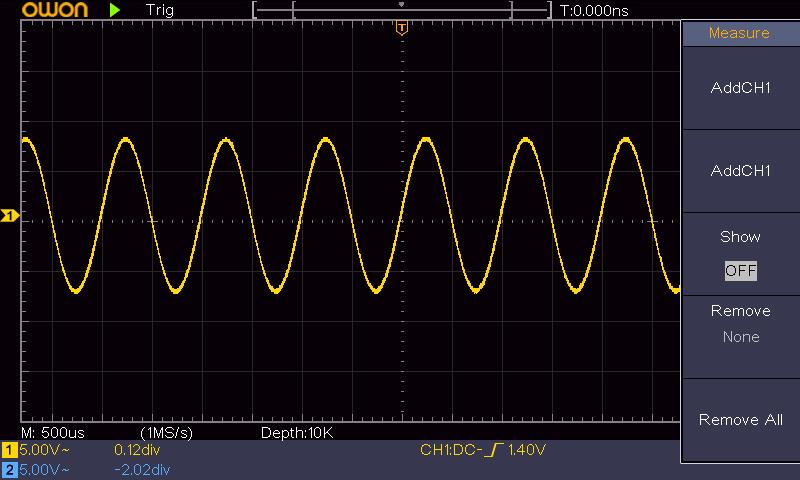

4.Snapshot
One click, all measurement value comes from 30 auto-measurement options.
5. Size & Package
Model | SDS1022 | SDS1102 | |
---|---|---|---|
Bandwidth | 20MHz | 100MHz | |
Sample Rate | 100MS/s | 1GS/s | |
Horizontal Scale (s/div) | 5ns/div - 1000s/div, step by 1 - 2 - 5 | 2ns/div - 1000s/div, step by 1 - 2 - 5 | |
Channel | 2 | ||
Display | 7" color LCD, 800 x 480 pixels | ||
Input Coupling | DC, AC , and GND | ||
Vertical Resolution (A/D) | 8 bits (2 channels simultaneously) | ||
Vertical Sensitivity | 5mV/div - 5V/div (at input) | ||
Trigger Type | Edge, Video | ||
Trigger Mode | Auto, Normal, and Single | ||
Waveform Math | +, -, x, ÷, invert, FFT | ||
Fuse | 2A, T class, 250V | ||

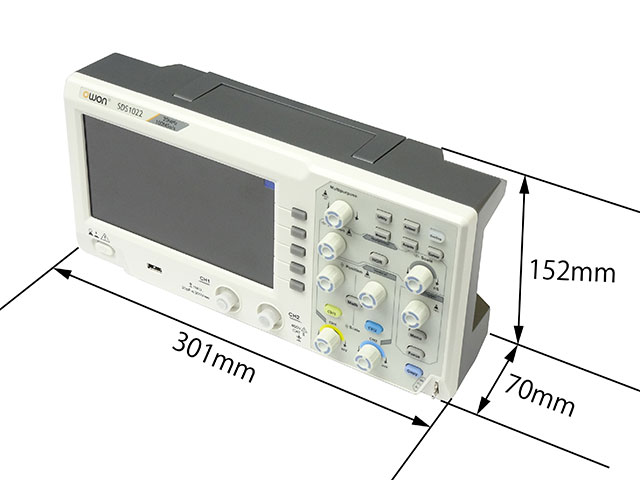

Dimension (W x H x D) | 301 x 152 x 70 mm | ||
Device Weight | 1.10 kg |
SUPPORT
? PC software for OWON SDS1000 DSO
? USB driver for all series OWON DSO and AWG
? SDS1000 Series DSO user manual
ACCESSORIES The accessories subject to final delivery.
Power Cord | CD Rom | Quick Guide | USB Cable | Probe | Probe Adjust |
