Side Slope Greening And Protection Geocell

Min.Order : 1 Pieces Quick Quotation >

Conpany Profile

7 YRS Weifang City Huateng Plastic Products Co.,Ltd

Transaction Level:

huateng@sdhuateng.com

+8618953632777

Product Details

Find high quality side slope greening and protection geocell with competitive price here. Please rest assured to buy side slope greening and protection geocell with Weifang City Huateng Plastic Products Co.,Ltd

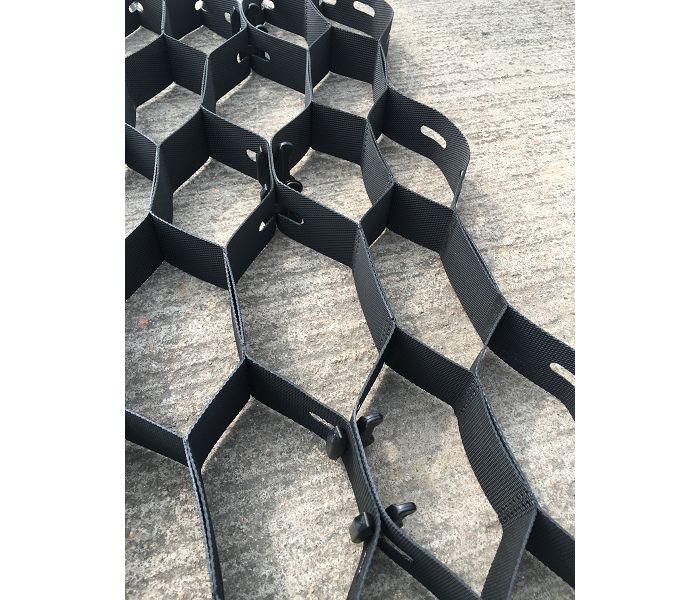

Honeycomb Geocell is hexagonal structures, in material of HDPE and PP Nonwovens two types , welded by high frequency ultrasonic. Being flexible, geocell can be folded in transit and outspreaded filling with sand, stone or concrete in roadbed construction. BOLV Honeycomb Geocell is our company’s main product, with the height ranging from 50mm to 200mm and welding distance 50mm-100mm

Nonwovens Geocell Features

Model	Height (mm)	Welding distance (mm)	Sheet thickness (mm)	Peel strength of welding point (N/10CM)
GS50	50	50-100	1.8+/-0.1mm	=1000
GS75	75	50-100	1.8+/-0.1mm	=1000
GS100	100	50-100	1.8+/-0.1mm	=1000
GS150	150	50-100	1.8+/-0.1mm	=1000
GS200	200	50-100	1.8+/-0.1mm	=1000
REMARK: width of the product can be made according to the customer’s demand, and other special standards will carry out by contract.

MATERIAL PHYSICAL CHARACTERS

PROPERTIES	TEST VALUES	TEST METHOD
Tensile strength of strips	15MPa min	GB1040-1992
Seam peel strength	1000N/10CM	GB1040-1992
Elongation rate at break for strips	500%min	GB1040-1992
Carbon Black Content	1.5% min	ASTM D 1603

HDPE Honeycomb Geocell Features

Model	Height (mm)	Welding distance (mm)	Sheet thickness (mm)	Peel strength of welding point (N/10CM)
GS50	50	50-100	1.5+/-0.1mm	=1200
GS75	75	50-100	1.5+/-0.1mm	=1200
GS100	100	50-100	1.5+/-0.1mm	=1200
GS150	150	50-100	1.5+/-0.1mm	=1200
GS200	200	50-100	1.5+/-0.1mm	=1200
REMARK: width of the product can be made according to the customer’s demand, and other special standards will carry out by contract.

MATERIAL PHYSICAL CHARACTERS

PROPERTIES	TEST VALUES	TEST METHOD
Material hdpe with density of 0.935~0.965g/cm3	0.94 g/cm3	ASTM D 1505
Seam peel strength	1200N/10CM	ASTM method
Minimum ESCR	4000hr at least	ASTM D 1693
Tensile strength of strips	20 MPa min	GB1040-1992
Carbon Black Content	1.5% min	ASTM D 1603

USES:
Mainly used in highway foundation stability and protection, slope stability and the green environment , soil retaining wall construction , management of the Banks of the river dam , the landfill land infrastructure and so on many of the infrastructure .
