Find high quality single 2 ply corrugated cardboard production line with competitive price here. Please rest assured to buy single 2 ply corrugated cardboard production line with Pujiang Ruida Industry & Trade Co,.Ltd

Quick Details

• Type: Packaging Line

• Condition: New

• Application: Apparel, Beverage, Chemical, Commodity, Food, Machinery & Hardware, Medical, Textiles

• Packaging Type: Belt, Cartons, Case, Film

• Packaging Material: Metal, Paper, Plastic, Wood

• Automatic Grade: Automatic

• Driven Type: Electric

• Voltage: 380v

• Power: 60kw

• Place of Origin: Zhejiang, China (Mainland)

• Brand Name: RuiDa

• Model Number: RD-DW268-1200

• Dimension(L*W*H): 16*2.5*2m

• Weight: 15t

• Certification: CE

• After-sales Service Provided: Engineers available to service machinery overseas

• Warranty: 2 years

• Name: Single ply production line

Packaging & Delivery

Packaging Details	Plastic wrap film for carton production line
Delivery Time	30 days for carton production line

Carton production line

Features

• Carton production line

• Design speed: 40m/min

• Design width: 1200mm

• Corrugated type: A, C, B, E(Depends on the customer's requirement)

• Heating source: Electrical(steam or conduction oil heating is optional)

• Power supply: 380V, 50Hz

• Nominal power: 60KW

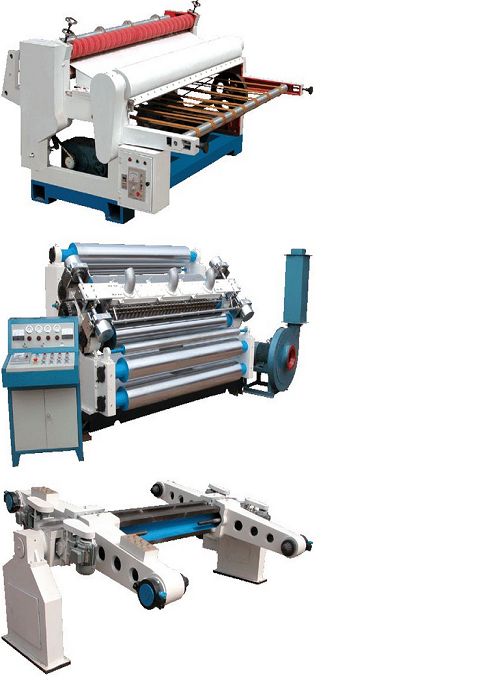

• The line is composed of chain type shaft mill roll stand, finger type single facer, rotary cutter and slitter machine. The web as raw paper and corn starch as adhesive, is able to produce and cutting the required size of single ply corrugated cardboard.

• The cardboard produced by this line no need drying.



Chain type shaft mill roll stand_[RD_JZY1200]

• Max width of loading paper: 1400mm

• Max diameter of loading paper roll: F1500mm

• Loading capacity: 2T/side

• The operation of lifting is driven by electrical while the clamping, loosening, traverse moving etc. are driven by manual

• The web tension is adjusted by manual break.

• Due to the equipping of manual disc break, the adjustment of web tension is convenient.



Finger type single facer_[RD-DW268-1200]

• Designed width: 1200mm

• Designed speed: 40m/min with electrical heating; 60m/min with steam heating

• Heating method: electrical or steam

• Corrugating roller diameter: F270mm

• The upper corrugating roller, pressure roller and gluing roller are controlled pneumatically

• The shafts of corrugated and pressure roller are lubricated by high temperature resistant lube

• The glue unit is able to run separately while the main machine stopped, in order to prevent the glue drying up

• Both upper and lower corrugating roller are made of 48CrMo high quality alloy steel, with the heat-treatment  and chrome plated. the hardness up to HRC58-60




Rotary cutter and slitter machine_[RD-DWQJ1200]

• Max paper width: 1200mm

• Cutting precision: ±2.5mm

• Cross cutting length: 400-2400mm

• Equipped with 4 slitting knives

• Reasonable mechanical structure, with strong rigidity and good stability, have long performance life.

• All operation to be done on the same side, which is convenient to operate

• Equipped with photoelectricity counter.
