Find high quality single cylinder preheater with competitive price here. Please rest assured to buy single cylinder preheater with Guangzhou Top Way Road Machinery Co., Ltd.

1.Name: Single-cylinder Thermoplastic Hydraulic Preheater

2.Function: Hot-melt thermoplastic coating paints

3.Parameter:

Outer dimensions(L*W*H))	TW-YA1:1650×700×1370mm with stainless steel outer plate TW-YB1: 1700×750×1370mm with stainless steel outer plate TW-YC1: 1750×850×1370mm with stainless steel outer plate TW-YD1: 1700×850×1570mm with stainless steel outer plate Size can be customized according to clients’ requirements.
Total weight of machine	TW-YA1: 400kg TW-YB1:450kg TW-YC1:500kg TW-YD1:550kg
Capacity ( melted paint)	TW-YA1: 250kgX1(about 9-11 bags of paints each cylinder) TW-YB1: 300kgX1(about 11-13 bags of paints each cylinder) TW-YC1: 400kgX1(about 15-17 bags of paints each cylinder) TW-YD1: 500kg X1 (about 19-21 bags of paints each cylinder)
Diesel engine power	16HP/7HP/Customized
Engine start method	Electrical(12V)/ Manual
Stirring speed	20~80r/min
Stirring mode	Helical blades can rotate leftwards and rightwards to move paints up and down.
Heating temperature	0~300?
Used fuel	LPG
Capacity of hydraulic oil tank	60L/50L/25L/Customized

4.Product details

?Single cylinder Preheater is one of the key machines for the construction of thermoplastic marking at present. With hydraulic drive as well as positive and reverse rotation controlled by multi-way reversing valve, the melting speed gets faster.

?A water tank is set on the hydraulic oil tank. Special water tank is added, heating is made reasonable so that the use of canned LPG is more complete. Even though the hydraulic kneader is in the course of idle running, the temperature of hydraulic oil will rise; in the burning course of LPG, the temperature of liquefied gas cylinder will drop. Through heat exchange of water tank, hydraulic oil is maintained to proper temperature for the purpose of avoiding the waste of liquefied gas.

?The step less speed changing multi-way reversing valve can control the helical blades to stir independently clockwise or counterclockwise to move paints up and down and make it melted faster. The feeding and melting of newly fed paints is also sped up.

?The overhead hydraulic thermoplastic Preheater can further save the area covered by hydraulic kneader, and hold more paints. It is suitable for clients' use on small freight truck and for quick melting of paints.

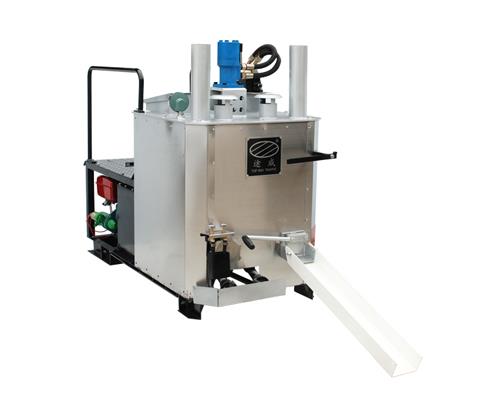

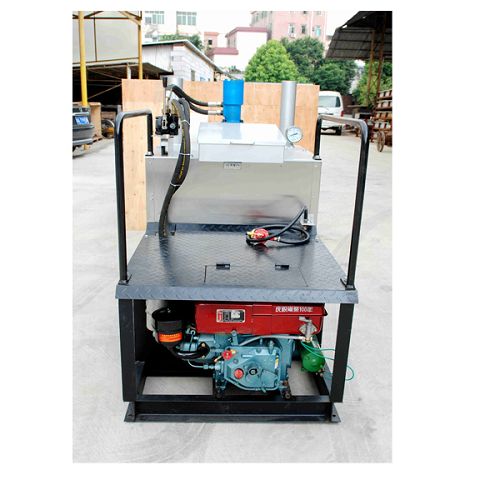

5.Pictures

5.FAQ

1. Q: Can road marking machine preheat the thermoplastic paint?

A: No. It needs to work with a preheater, like the last picture. The TW-H just can preserve the heat of thermoplastic paint.

2. Q: Do you have thermoplastic road marking machine with preheater?

A: Yes, we have. It is model TW-FJ, which is suitable for small line marking project. For more details,pls check home page.

3. Q: Can I adjust the line thickness? And how?

A: Yes, it could be adjusted by edging knife and hanger. The normal line thickness is 1.2-4 mm.

4. Q: How to mark lines in different width?

A:Change the marking hopper, change line width. We have varied sizes, from 50 mm to 450mm. Usually, the standard equipment is 150mm. The other size is optional. Also, we could produce special marking hopper for you.

5. Q: What about the after-sale service?

A: We are responsible to provide technical advise in the machine's whole shelf life. We help solving problems via Whatsapp , Skype,Viber and email by sending pictures and videos.

6. Q: Could you produce customized machine?

A: Yes, we could. We are the manufacturer of thermoplastic road marking machine in Guangzhou City.

7. What about the shipment?

A: It is on your choice. Usually, we recommend sea shipping which provides reasonable prices. Also, for spare parts, it could be in FEDX, DHL and other international express.

Any question about the machines is welcome. THX
