single wall corrugated pipe machine

This machine can be used to produce various PP, PE,PVC,PA single wall corrugated pipes. The complete line includes: Single screw extruder, die, corrugated forming machine, coiler. The gears run modules and templates so as to realize excellent cooling of the products, which ensures high-speed molding, even corrugation, smooth inner and outer pipe wall. The main electrics of this line adopt world famous brand, such as Siemens, ABB, Omron/RKC, Schneider etc.

With diferent plastic material, it can make produce different kind of corrugated pipes.

The Process flow of this corrugated pipe line as blow:

Raw material (PP/PE/PA/PVC granule) ? Plastic extruder ? Mould? Forming machine ?Winder ? Finished product

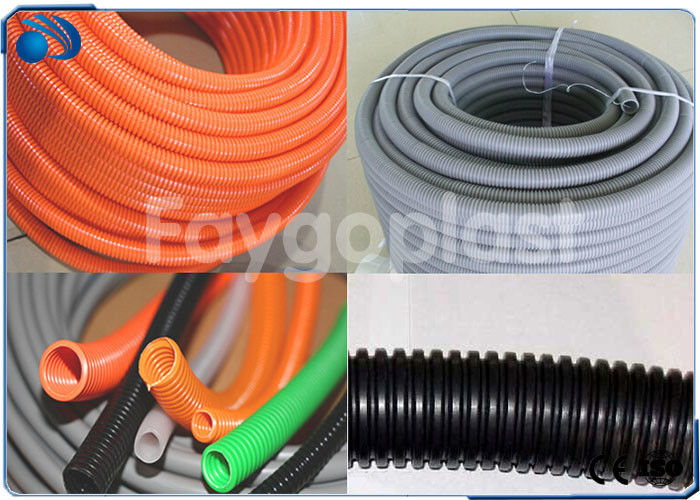

The single wall corrugated pipes have features of high temperature resistance, resistant to corrosion and abrasion, high intensity, good flexibility. They are widely used in fields of auto wire, electric thread-passing pipes, circuit of machine tool, protective pipes of lamps and lanterns wire, tubes of air conditioner and washing machine.

corrugated pipe machine technical data

Extruder model	SJ30	SJ45	SJ65	SJ65
Motor power	4kw	11kw	18.5kw	37kw
Pipe diameter	4~10mm	10~25mm	16~50mm	50~110mm
Production speed	5~10m/min	4~12m/min	2~16m/min	0.5~8m/min
Output	8kg	20kg	50kg	80kg
