PRODUCT DESCRIPTION:

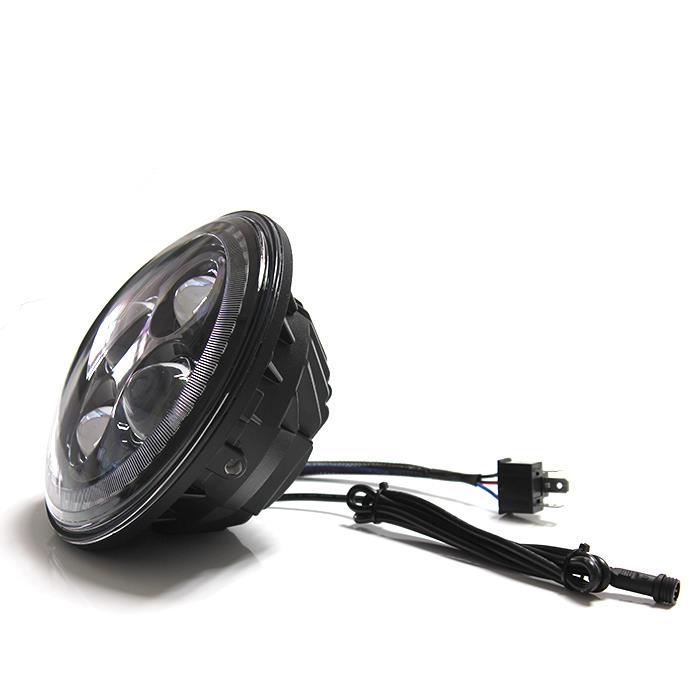

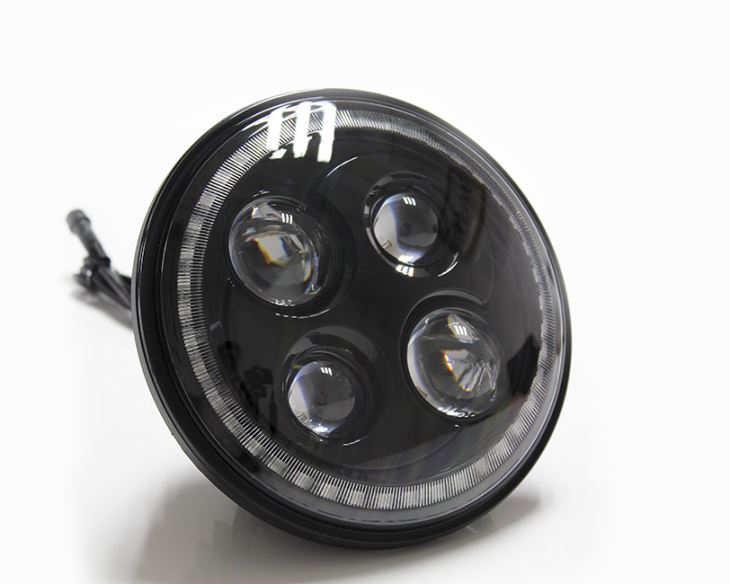

The Jeep Wrangler JK TJ  LED projector headlights are smartphone controlled. The headlights fit with Jeep Wrangler TJ JK. The headlights built with high grade PHILIPS automotive lighting LED chips.

The controller sold separated.

Unique LED controller:

Unique appearance, different from any controller on the market. Waterproof housing, waterproof connect plug, plug and play design, combination of performance and eye-catching.

Extendable APP platform:

This controller allow to control the headlights, work lights, fog lights, LED light kits, light bars and other RGB light kits. Plus, this system will be upgraded regularly for new functionality.

CERTIFICATION:

AMECA certified DOT certificate

TUV SUD certified ECE certificate



Beam Pattern(s):

Low Beam (DOT/ECE)

ILLUMINATION DISTRIBUTION:

Beam Pattern(s):

Forward Lighting – High Beam (DOT/ECE)

Forward Lighting – Low Beam (DOT/ECE)

RELIABILITY TESTS DONE:

1. Candela distribution test - DOT FMVSS 108 and ECE 112R standards – PASSED.

2. Waterproof and dustproof test - IP67 standards - PASSED.

3. Salt spray test - corrosion resistant - PASSED.

4. Vibration test - simulates the rough road conditions - PASSED.

5. Temperature and Humidity test - simulates most extreme weather condition - PASSED.

6. Thermal test - ensure the 30000h lifespan of the LED chips - PASSED.

Read more...

PRODUCT DETAILS:

Dimension: 6.95in (Diameter) X 3.95 (Depth)

Outer Lens Material: PC

Outer Lens Color: Clear

Housing Material: Die-Cast Aluminum

Bezel Color: Black/Chrome

Retrofits: 2D1 “PAR56? or 7” round headlights

Connector or Wiring: H4

Product Weight: 2.64 (lbs) / 1.2 (kgs)

Minimum Operating Temperature: -30 (°C) / -86 (°F)

Maximum Operating Temperature: 55 (°C) / 131 (°F)

ELECTRICAL SPECIFICATIONS:

Input Voltage: 12-24 V DC

Operating Voltage: 9-32 V DC

Current Draw: 3.0A @ 12V DC (High Beam), 1.5A @ 12V DC (Low Beam); 1.50A @ 24V DC (High Beam) 0.75A @ 24V DC (Low Beam).

REGULATORY STANDARDS COMPLIANCE:

America Standards DOT FMVSS 108.

Europe ECE-R112

IEC IP67

PHOTOMETRIC SPECIFICATIONS:

LED chips Brand: DOT version – PHILIPS chips High & Low.

ECE version – OSRAM chips Low Beam & PHILIPS chips High Beam.

Raw Lumen Output: 2,600 (High Beam); 1,350 (Low Beam)

Effective Lumen Output: 1,600 (High Beam); 1000 (Low Beam)

Nominal LED Color Temperature: 6500 (K)

APPLICATION:

Plug and play fitments:

1955-1983 Jeep CJ-5

1976-1986 Jeep CJ-7

1981-1985 Jeep CJ-8

1997-2006 Jeep Wrangler (TJ)

2007-2017 Jeep Wrangler 2-Door (JK)

2007-2017 Jeep Wrangler Unlimited 4-Door (JK)
