Find high quality snacks food processing machinery with competitive price here. Please rest assured to buy snacks food processing machinery with Jinan Tainuo Machinery Co.,Ltd

Snack food processing machinery
1.fully automatic, one button simple operation, reducing the operating errors effectively and saving manpower and cost.
2.use the planet stirring way, so there is without any stirring blind spot. It make sure that the popcorn can be candy coated evenly and the popcorn won't stick on the pot.
3.adopt the special heating system, it can reach the goal temperature in short time and shorten the popcorn burst time. So it improve the capacity a lot, the popcorn machine can produce one-pot about 5 kg of popcorn in four minutes.
4.use the gas heating way, energy saving no waste gas,no waste residue and noise pollution.
5.use the hydraulic thrust to flip the stirring arm, avoiding dismantling blender, and use hydraulic thrust one more time to tilting pot body, make the popcorn easy to in and out.
6.can manufacture the best delicious popcorn, like caramel chocolate popcorn etc. if you need the popcorn processing technology, we can provide the best one for you.

?uniform stirring no any stirring blind spot in the pot
?energy saving no waste gas,no waste residue and noise pollution
?rapid heating achieve the target temperature with short time
?Great Output: about 60 kg popcorn per hour;
?use hydraulic thrust to tilting pot body, make the popcorn is easy to in and out and save manpower.
?Food grade stainless steel is safety and health

Snack food Machine can finish mixing, extruding, shaping, core-filling, cutting, baking and flavoring in one-pass operation automatically. This line features lots of types, flexible collocation, extensive applied raw materials, various snacks and easy operation. By changing the moulds and process technology, this line can produce core-filled snacks, like chocolate filled bar, cream filled pillow, rice cake, cereal bar, sheet snacks etc.

Raw material of snack food processing machinery
corn flour, wheat flour and other grain flour

Work flow chart of snack food processing machinery
Flour Mixer---Screw Conveyer---Double-screw Extruder---Multi-function Shaper---Hoister---Multi-layer Oven---Flavoring Line

Machine details of snack food processing machinery
1)Alloy (38CrMoAL) screw made by nitriding process, high strength and wear-resting. Self-cleaning ability, no need to discharge or clean the barrel and screw when roasting or replacing of materials.
2)Adopting speedadjusted converter on feeding system, extrusion system and cutting system. Food grade stainless steel twin screw feeding machine, stable materials feeding in the whole food process.
3)Gearbox with automatic lubrication function, extending gear life.
4)World famous brand Siemens main motor, guaranteeing good quality
5)Increased radiator on driving part for forced cooling effect, ensuring extruder operates safely.
6)Cutting knife fixed in the die head seat, rotary cutting by V-belt drive.

Technical parameters of snack food processing machinery

Name	Type	Install power	Capacity	dimension
Mixer	BFJ	4kw	100-150kg/h	1.07*0.63*1.45m
Spiral Feeder	LXSL	1.1kw	100-150kg/h	2.3*0.8*2.3m
Extruder	TN65	34kw	100-150kg/h	2.1*0.9*1.8m
Air-conveyor	FSJ	2.2KW	100-150kg/h	2.3*0.6*2.5m
Drying Machine	KX-5-5	45KW	100-150kg/h	5.0*1.3*1.7m
Hoister	FSJ	0.2KW	100-150kg/h	2.4*0.6*2.0m
Oil-sprayer	PYJ	4KW	100-150kg/h	1.0*0.5*1.4m
Flavor-Drum	GT	1KW	100-150kg/h	3.6*0.9*1.7m
Cooling-conveyor	LQSS	1.48KW	100-150kg/h	4.2*0.7*1.45m

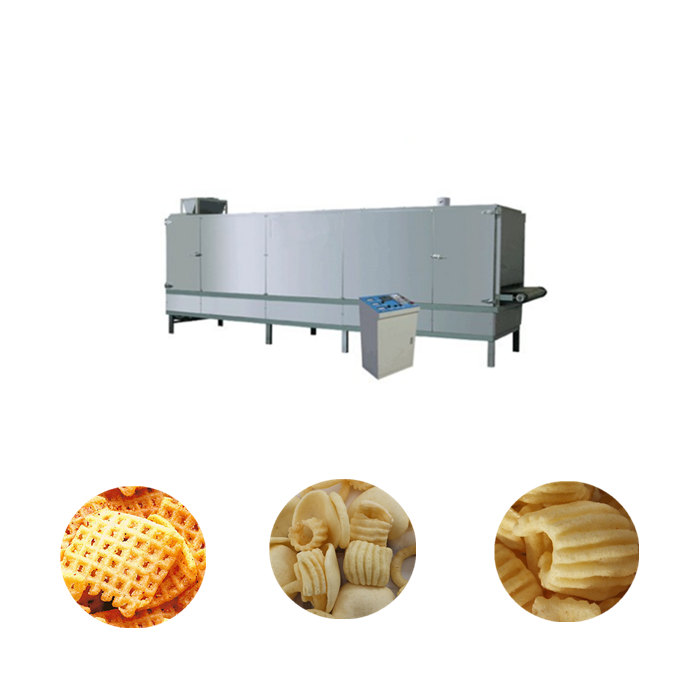

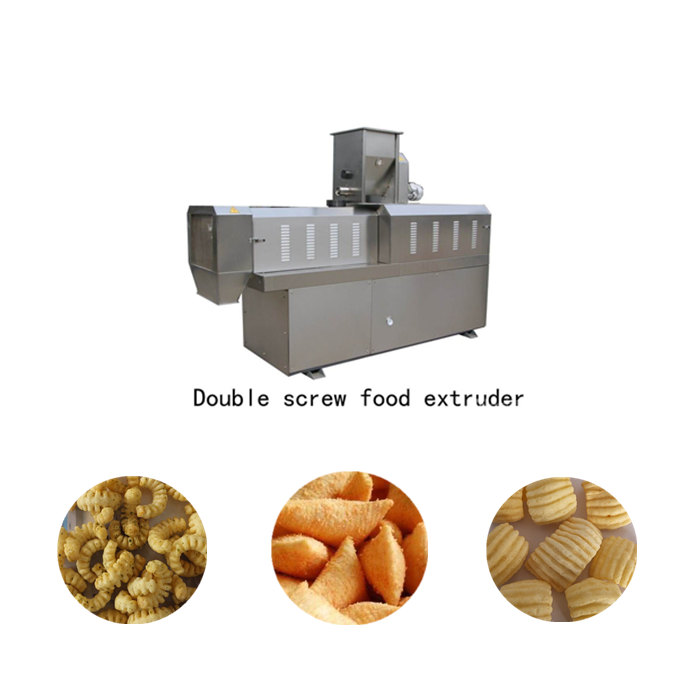

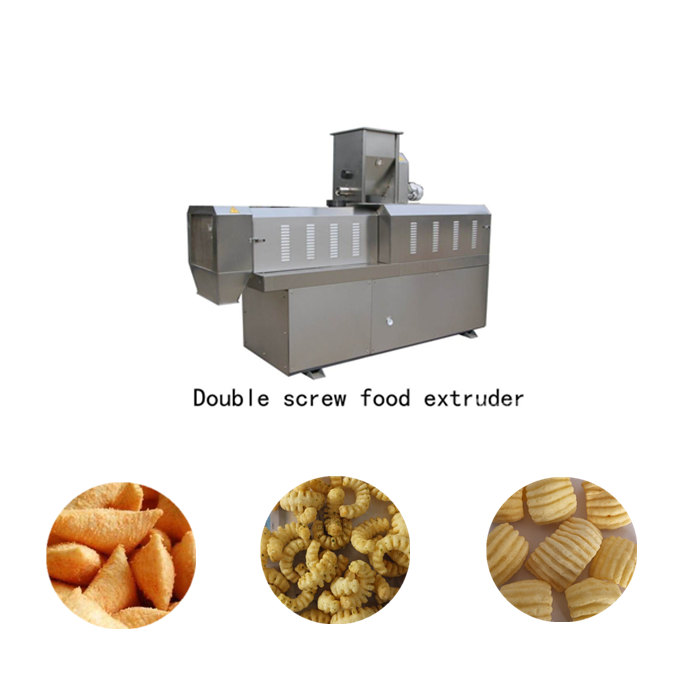

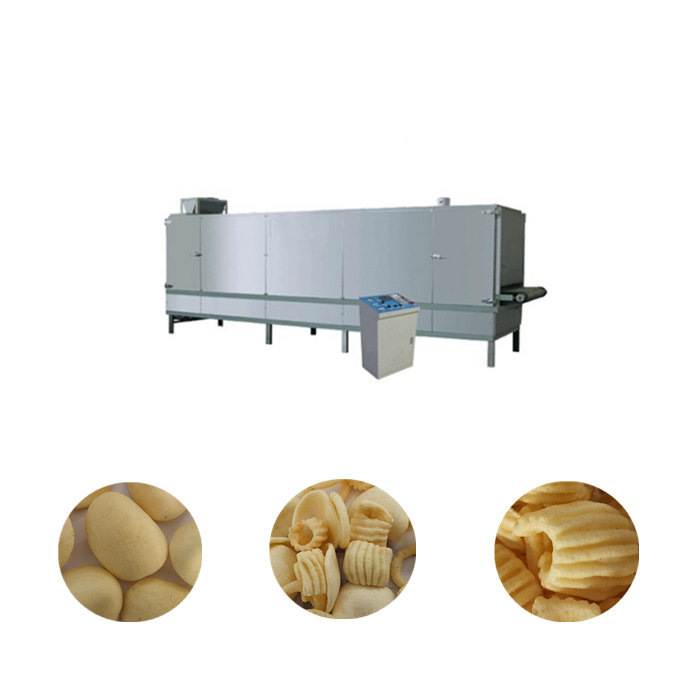

Sample Pictures of corn puff food
