Find high quality spring type relay socket with competitive price here. Please rest assured to buy spring type relay socket with Wenzhou Jinhong Electronical Appliance Co.,Ltd

Quick Details

Place of Origin:Zhejiang, China (Mainland)

Type:Electrical Plug

Grounding:Non-Grounding

Rated Voltage:300V

Rated Current:12A

Application:Industrial

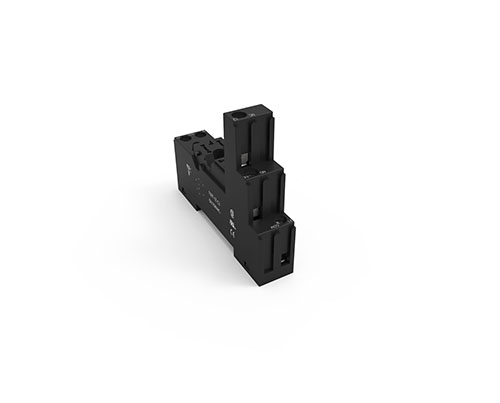

Product name:spring type relay socket

Rated current:12A

Rated voltage:300V

Dielectric strength:2500

Conductor cross section:min. 0.5mm^2/max. 2.5mm^2

Contuctor cross section(A.W.G):min. 20/max. 14

Stripping length:7mm

Screw thread:M3

Ambient temperature(operation):-25?~+85?

Color:Black

Packaging & Delivery

Packaging Details:inner box+outer carton

Delivery Time:20-30days after payment

Rated current / Rated voltage	12A/300V
Dielectric strength adjacent contact circuits	2500
Conductor cross section solid and stranded	min. 0.5mm² / max. 1.5mm²
Conductor cross section(A.W.G)	min.20/max.14
Stripping length	7mm
Screw Thread	M3
Ambient temperature (operation)	-25?~+85?
