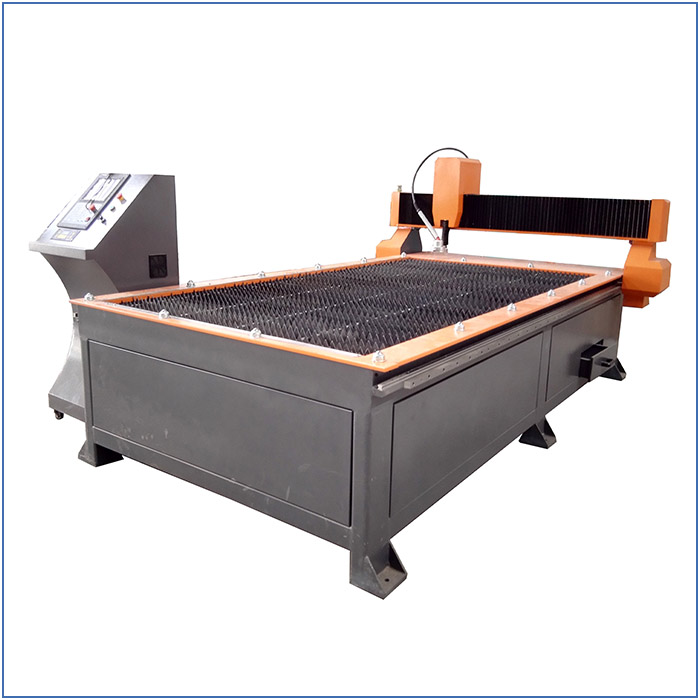

Steel metal plate cnc plasma cutting machine

Configuration:

# START control system with THC

# China brand huayuan 100A plasma power

# Taiwan HIWIN liner guide rails and helical rack transmission

# Stepper motor and driver

# Taiwan TBI ball screw in Z axis

# Welded steel bed structure

# Knife table surface

Technical parameter

Model	ZK 1325
X,Y working area	1300×2500mm
Lathe bed	Steel structure with water sink
Cutting speed	0-8m/min
Travelling speed	0-50m/min
Power	8.5KW-10.5KW
Voltage	380V/50HZ
Driver motor	stepper motor
Interface	USB
Arc starting way	Contactless arc starting
Driving mode	Wheel gear
Highly of Z axis	Arcing voltage to reset to higher(optional)

Features:

1 .The machine is all welded as seamless steel structure. Steady structure and long life time

2. High configuration, high cutting speed and precision.

3.STARTFIRE control system

4. Cutting material: steel, copper, iron, aluminum, galvanized sheet, titanium plates.

5. File format: G-code

6 Suitable Software :ARTCUT, Type3, ArtCAM. Beihang Haier.

7 Different power: 100A /160A /200A for different thickness cutting

8 Steper motor working mode makes the machine with low cost and high effieicency

9 Higher configuration is optional, such as, servo motor and America HP plasma power

Cutting sample:

Application:

Our plasma cutting machine is mainly used for cutting carbon steel metal sheet, and also can cut thin stainless metal sheet.

Our factory:

Certification:

Packing and shiping
