UL FCC CE PSE KC RCM safety marked 30W switching power supply adapter
Min.Order : 1 Pieces Quick Quotation >
Conpany Profile
Product Details
30w UL VDE BS KC PSE CCC SAA plug ac dc adaptor
Brand name: Simsukian
Model: SK03t-1
MOQ: 500 pieces
OEM: yes
Lead time: 18-22 days after confirm the order
Payment term: TT 30% deposit in advanced, the balance should be covered before shipping out.
Country of original: China

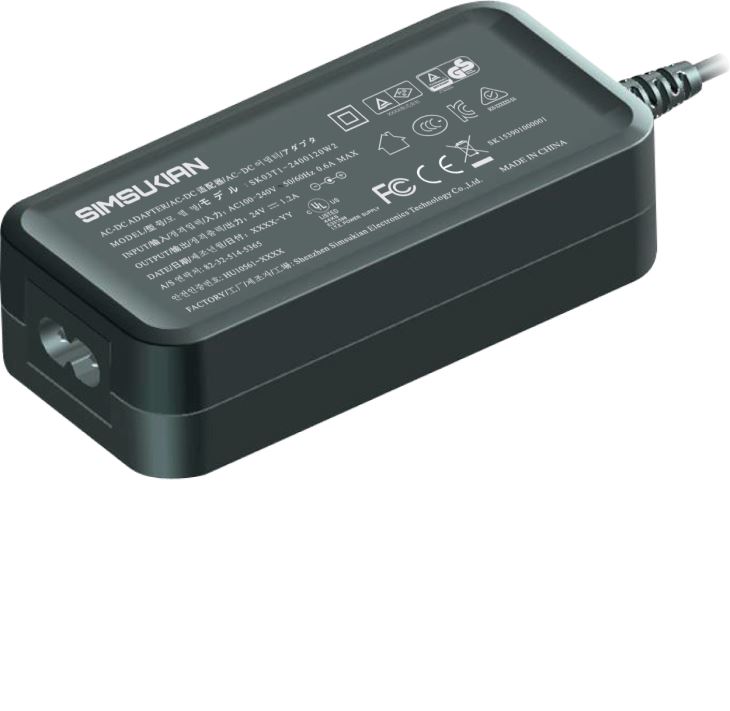

SK03T-1 Series 30W desktop power adapter |
Product Features: |
1). Ultra-small size, light weight, streamline, fully sealed and easy to carry; |
2). Low-cost design, high reliability, ultrasonic lamination; |
3). Built-in over voltage, over current and short circuit protection; |
4). Input Characteristics: Voltage :100-240VAC ± 10%; Frequency: 50/60Hz; Current: 1.5A Max; |
Starting Time: 3s Max; Inrush Current: 30A/240VAC Max |
5). Output characteristics: constant voltage mode, high precision, low noise; Hold up time: 20mS Min; |
6). Environmental: Operating temperature: 0 °C -40 °C, 5% -90% RH; |
Storage temperature: -20 °C -85 °C, 5% -95% RH; |
7). Cooling mode: natural cooling; |
8). Energy efficiency accordingly: ERP / CEC-VI standard; |
9). Safety standards: IEC-C6/IEC-C8 |
10).Meet ROHS standards; |
11).certification: UL / CCC / CE/ GS / SAA / KC / PSE/PSE; |
12) OEM & ODM is acceptable |
13).Average failure rate: 50,000 hours; |
30w switching power adapter technical parameter
Model | I/P Condition | Output(V) | Output(A) | Output(W)max |
SK03T-XXXXYYYW |
| 2.8-5.0v | 0.10-4.0A | 24W |
SK03T-XXXXYYYW | 100- | 5.1-8.9v | 0.10-3.98A | 29.7W |
SK03T-XXXXYYYW | 240VAC | 9.0-11.9v | 0.10-3.33A | 30.0W |
SK03T-XXXXYYYW | 1.3A Max | 12.0-18.9 | 0.10-2.50A | 30.0W |
SK03T-XXXXYYYW | 50/60Hz | 19.0-23.9v | 0.10-1.57A | 30.0W |
SK03T-XXXXYYYW |
| 24.0-30.0v | 0.10-1.25A | 30.0W |
As one of the leading and competitive manufacturers and suppliers who specializes in 30w desktop type switching power supply adapter, SIMSUKIAN is also able to offer customized products according to your specific requirement. Come and make contact with our factory.
