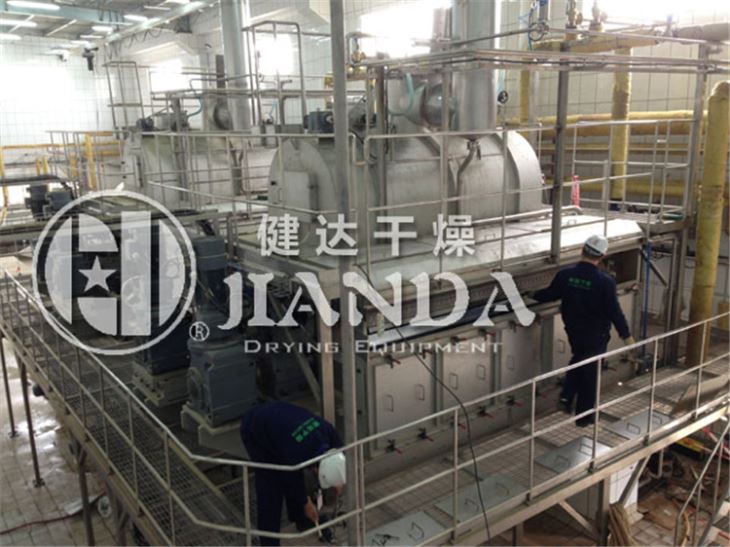

Vegetable fruit pulp Infant food drum dryer

project description:
Vegetable fruit pulp infant food is the fresh fruit or vegetables by cleaning, picking, beating, modulation, concentration, sterilization and other production process to from the product, the product has a unique flavor of natural fruits and vegetables, taste pure, nutrient-rich, without chewing it is food can be swallowed directly. Especially suitable for infants and old people, by the consumer's favorite, is very promising natural green convenience food.
Jiangsu Jianda Dry Engineering Co., Ltd., developed and produced of vegetables and fruit pulp infant food drum scraper dryer, effectively help you to dry the fruit and vegetable pulp infant foods.

First, Vegetable fruit pulp Infant food drum dryer principle:
Double drum scraper dryer is an internal heating type continuous rotation drying equipment. The rotating drum through its bottom feeding tank, adhesion of a certain thickness of the coating material, the heat through the pipeline to the drum wall, conducting to the outer wall of the drum, and then conductiing to the coating, so that the humidity in the coating is evaporated, The wet material gets dried. The dried material is scraped down by a scraper mounted on the surface of the drum, and drop into the screw conveyor placed under the scraper and then it can be concentrated and packaged sent by a screw conveyor.

Second, Vegetable fruit pulp Infant food drum dryer characteristics:
1, Flexible operation, wide adaptability, can adapt to a variety of materials and different production requirements.
2, High thermal efficiency, the general thermal efficiency is about 80%-90%.
3, The drying time is short, the wet coating on the outer wall of the drum is generally 0.3-1.5mm, the entire drying duration is of 10-15s, especially suitable for heat-sensitive materials. If the drum dryer is set in a vacuum vessel, it can be operated under reduced pressure conditions.
4, The drying rate is large, because the coating is very thin, and heat transfer, mass transfer direction are the same, the coating film surface can maintain 30—70kgH2O/(m2.h) vaporization strength.

If the vegetable fruit pulp infant food drum dryer meets your requirement, welcome to buy the high quality and durable dryer from our factory. Well acknowledged as one of the leading manufacturers and suppliers of vegetable fruit pulp infant food drum dryer, we must be your best choice. Don't miss it.
