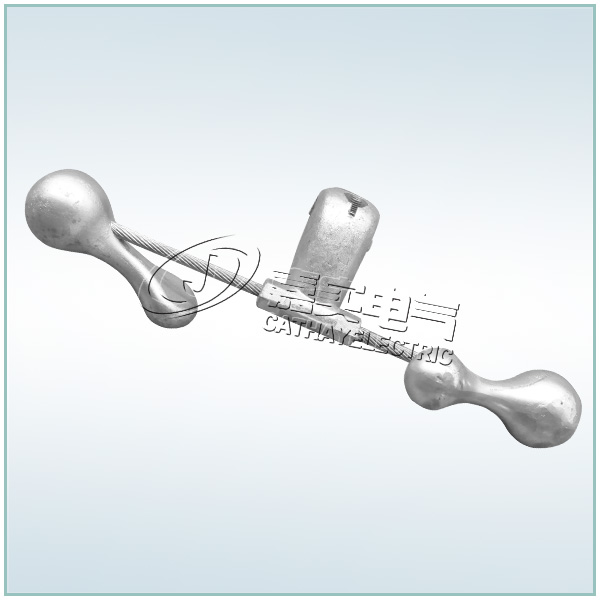

Vibration Damper

Vibration Damper include type FR, Type FD and FG

Vibration Dampers (Type FR)


The parameter of Vibration Dampers (Type FR)

Catalog No.	Suitable Conductor Dia	(mm) Dimensions					(kg) Weight
		(mm) Dimensions
		L	L1	L2	h	a
FR-1	9.0-12.0	429	240	189	80	50	2.68
FR-2-01	12.0-15.0	429	240	189	80	50	2.77
FR-2-02	15.0-20.0	429	240	189	80	50	2.78
FR-3-01	18.0-25.0	505	280	225	90	60	4.97
FR-4	25.0-32.0	550	300	250	97	60	7.50
FR-4-42	23.0-42.0	550	300	250	100	60	7.80
FR-7	32.0-37.0	666	333	333	100	70	9.50

Vibration Dampers (Type FD and FG)


The parameter of Vibration Dampers (Type FD and FG)

Catalog No.	(mm2) Conductor Section area		Fig	(mm) Dimensions			(kg) Weight
	(mm2) Conductor Section area			(mm) Dimensions
	Steel Wire	AAC & ACSR		L	D	h
FD-1		35-50	1	300	40	40	1.5
FD-2		70-95	2	370	46	55	2.4
FD-3		120-150	1	450	56	65	4.5
FD-4		180-240	1	500	62	70	5.6
FD-5		300-400	1	550	67	70	7.2
FD-6		500-630	1	550	70	75	8.6
FG-35	35		2	300	42	50	1.8
FG-50	50		2	350	46	50	2.4
FG-70	70		1	400	56	60	4.2
FG-100	100		1	500	62	65	5.9
