USB HD video conferencing camera

TEVO- VQ1080

Product:HD 1080P video conference camera (HD wide angle) TEVO-VQ1080

Brand: Tenveo

Product Model: TEVO-VQ1080

Product size: 240 x 145 x 95mm/285 x 235 x 140mm(before/after packing)

Gross weight:980g Net weight:450g

Resolution: 1920*1280 (Suitable for around 30 square meters office)

Manufacture: SZ Tenveo video technology co., LTD

Video conferencing camera introduction:

TEVO-VQ1080 USB HD 1080P wide-angle video conferencing camera uses USB free drive design.

It is the first USB supply free drive, no external power supply in China.

It makes the installation more convenient.

The camera is equipped with wide-angle HD lens 2.8mm itself .

And the unique design of PTZ(Pan) +/-170?(0°~ 355°) (Tilt) +/-60?(0°~ 120°)

Can take in everything of the whole meeting rooms in a glance.

Parameter(Specification) of the video conferencing camera:

This product is suitable for video cams of desktop, small and medium-sized conference room.

It adopts RS422/RS232 control interface,

1.First domestic USB supply free drive, no external power supply, easier to install.

2.8.0mega pixel 2.8mm High definition wide-angle lens

3.HD1080P (1920*1280 resolution at 25 frames / sec)

4.No need video capture card, driver free USB plug and play

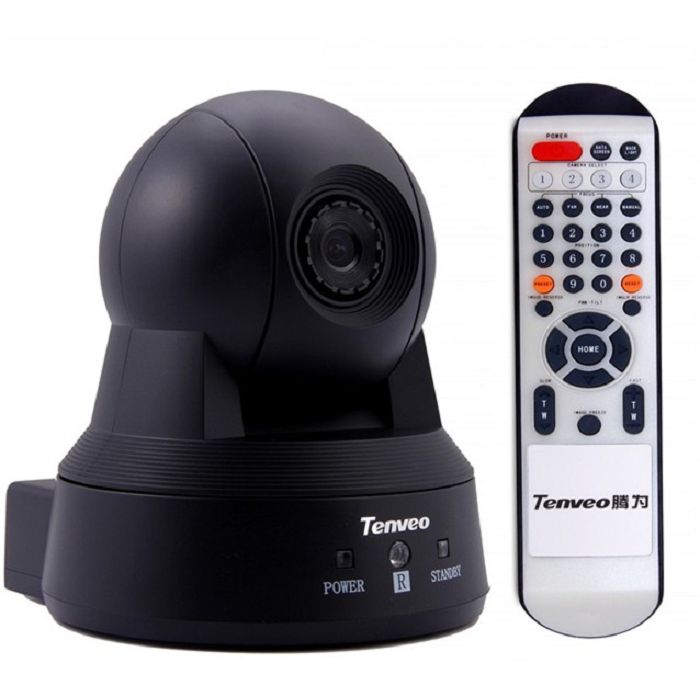

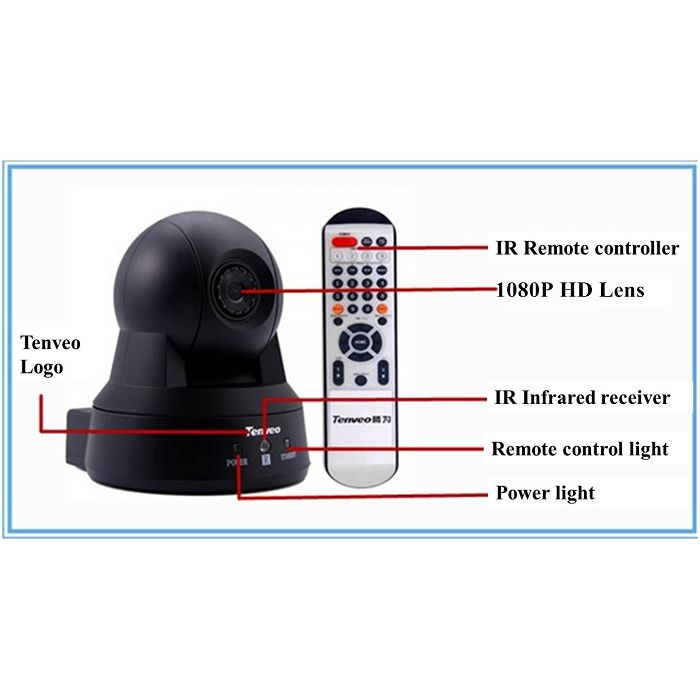

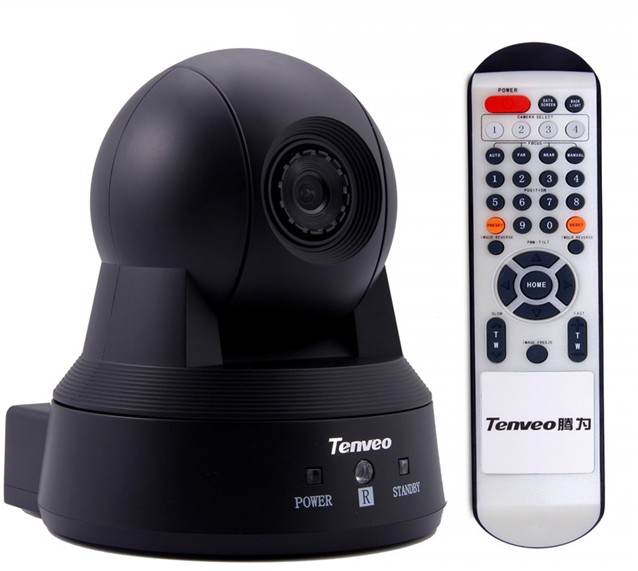

5.With remote control can spin around up and down ((Pan) +/-170? (0°~ 355°) (Tilt) +/-60? (0° ~ 120°)

6.Images can be reverted, ceiling installation

7.Custom tilt speed, starting up at the preset position

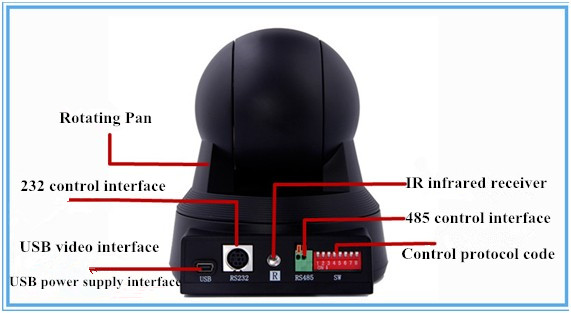

8.Use the standard RS422/RS232 control interface, support PELCO_P, PELCO_D, and VISCA control protocol

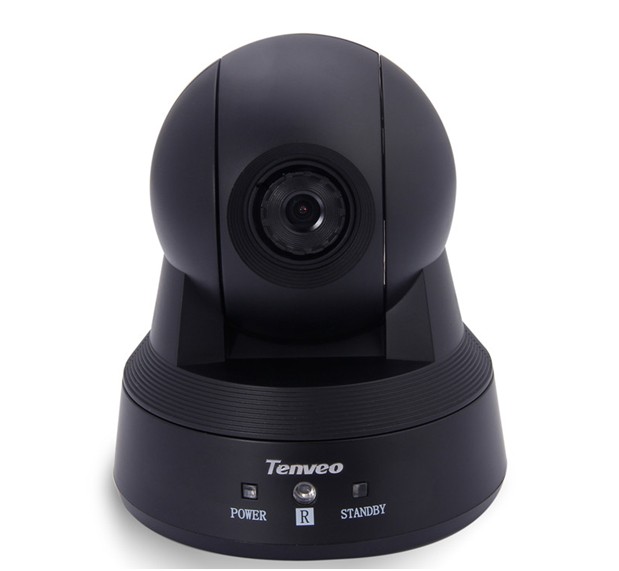

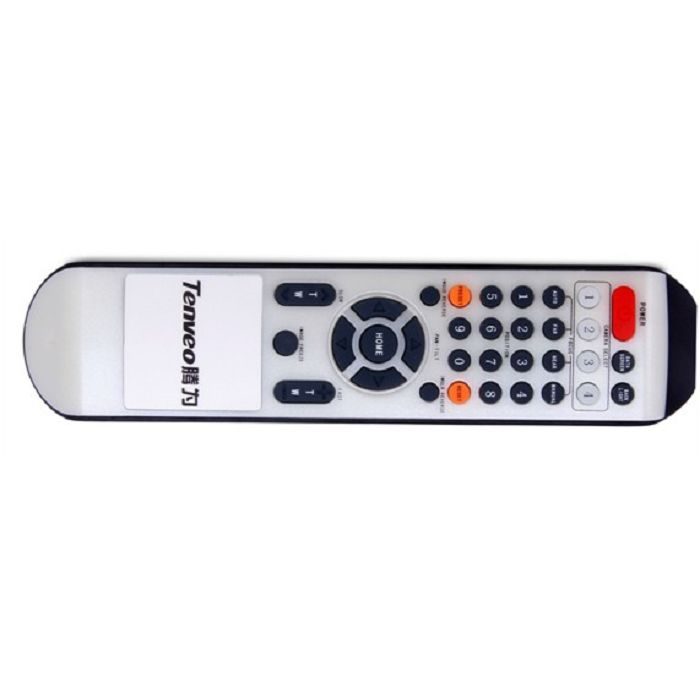

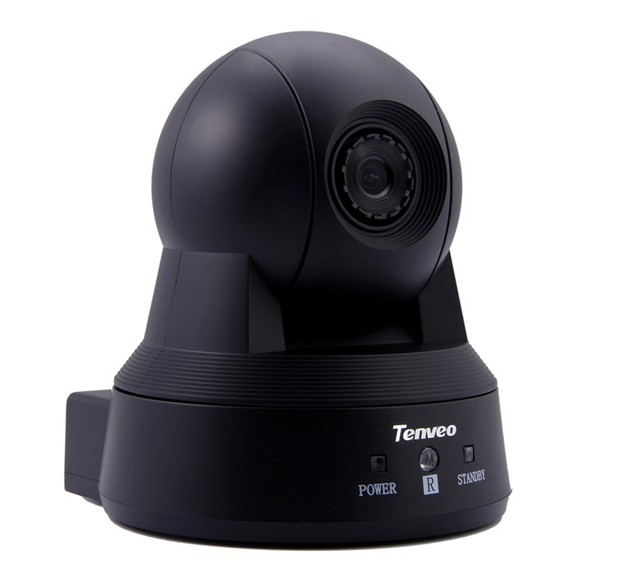

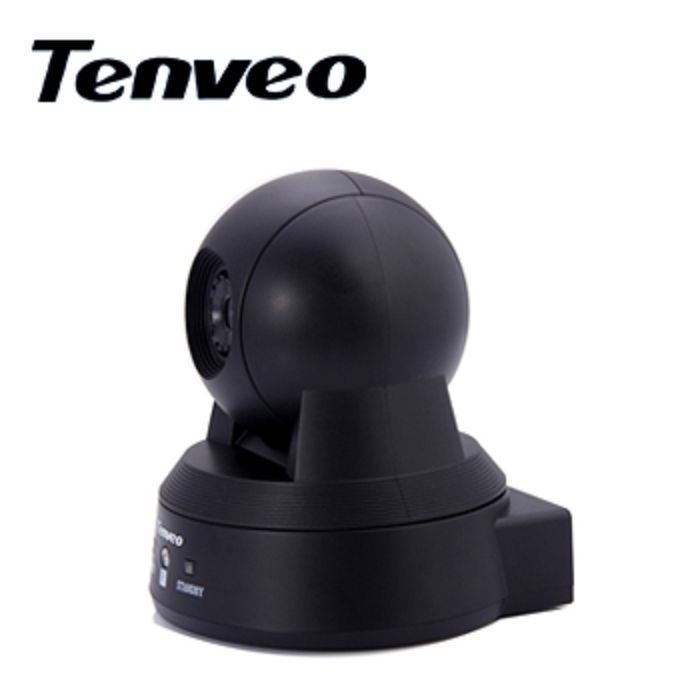

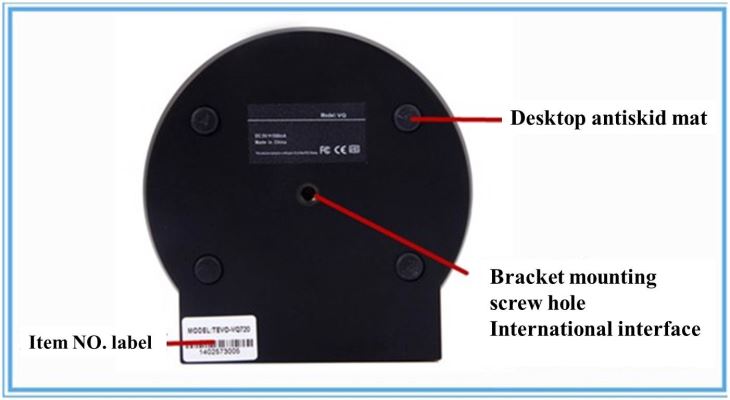

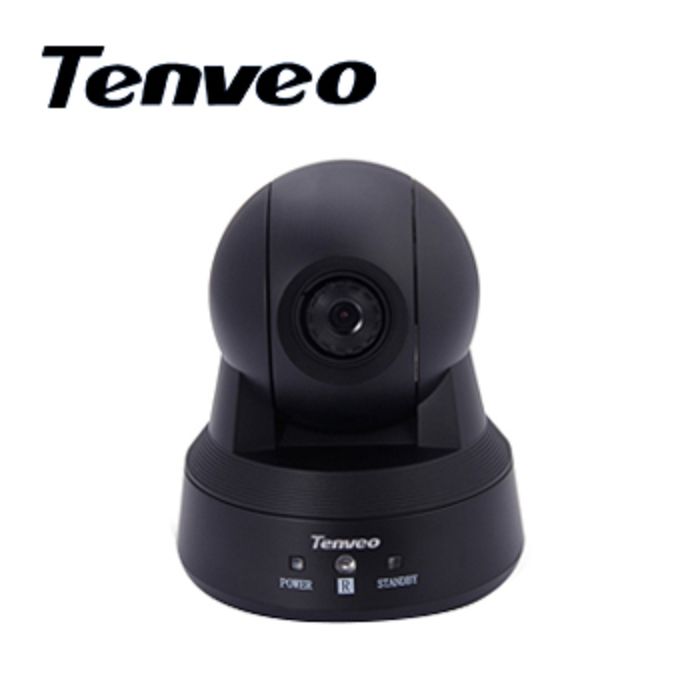

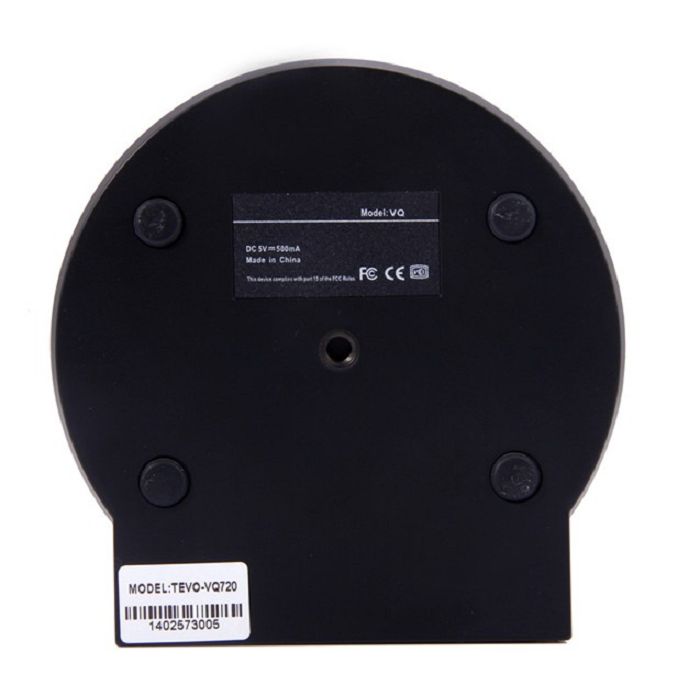

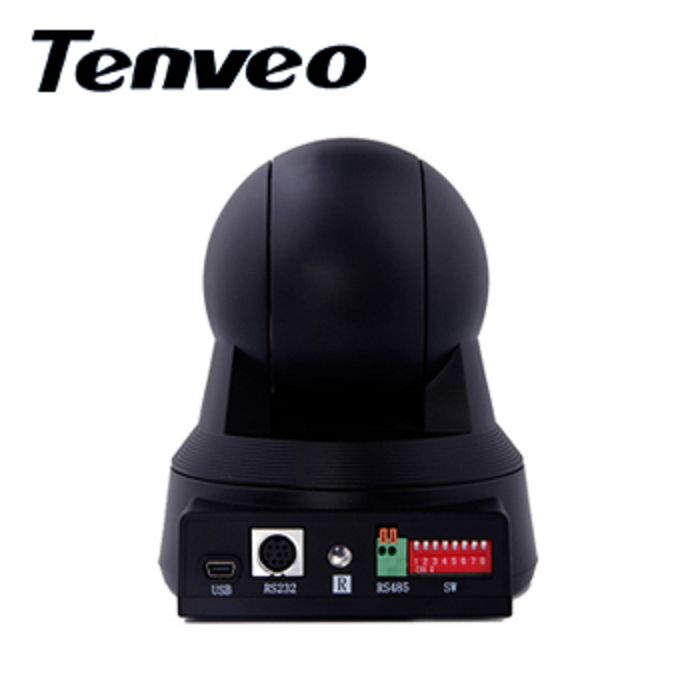

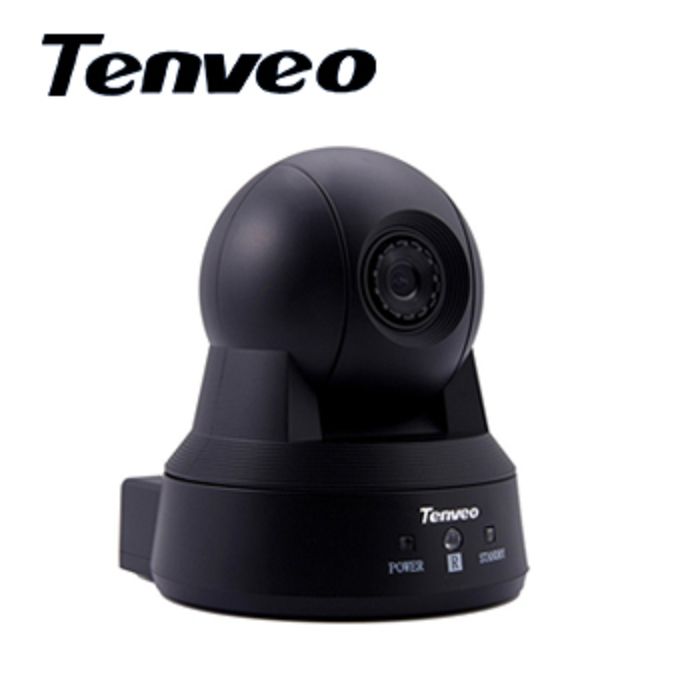

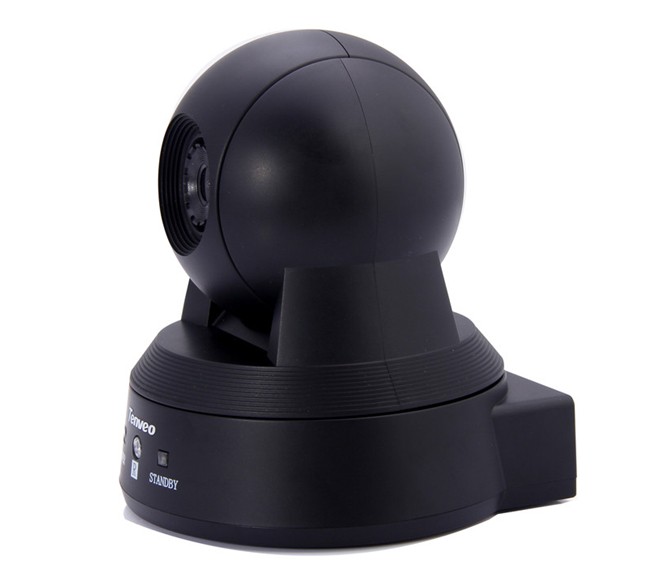

9.Images of product:In turn it is the images of the front, side, back, bottom and remote.

Feauture And Application of the video conferencing camera:

Sensor: MT9M034 2.0 mega effective pixels. (1920*1280, 25 frames / sec.)

Resolution: 1080P (1280x720) VGA (640x480) CIF (352x288)

Frame rate: 720P: 30fps

Minimum illumination: 5.0 Lux@ F2.0

Lens: 8.0 mega pixels; 2.8mm lens;

Focus: 30mm ~ infinity

Exposure: Auto

White Balance: Auto / Manual

Signal-to-noise ratio: >48dB

Interface Universal Serial Bus (USB2.0)

The left and right rotation angle: (Pan) +/-170? (0° ~ 355°)

the upper and lower rotation angle: (Tilt) +/-60? (0° ~ 120°)

Pan / Tilt speed: 60°-120°/sec

Power: from the USB cable

Product size: 240 x 145 x 95mm/285 x 235 x 140mm(before/after packing)

Gross weight:980g Net weight:450g

Cable length: 5 m with the “signal amplifier USB extension line" can be extended to 30 meters

Can be seamless docking various video conferencing software such as QQ, MSN, SKYPE and so on.

It is compatible for all of the windows video conferencing communication software.

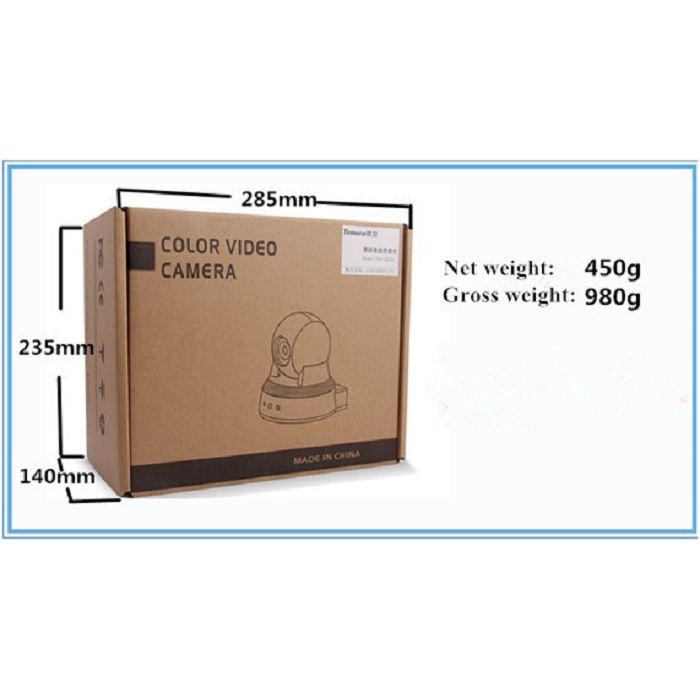

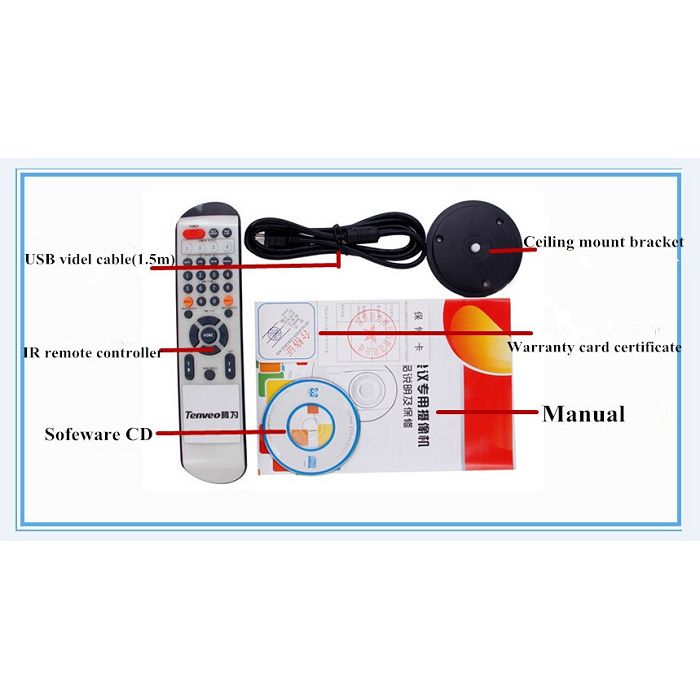

Packaging:
