10 Slot Broadcasting IBeacon Eddystone AltBeacon CR2032 Battery Powered Blutooth Low Energy Beacon FSC-BP103



Product Description:

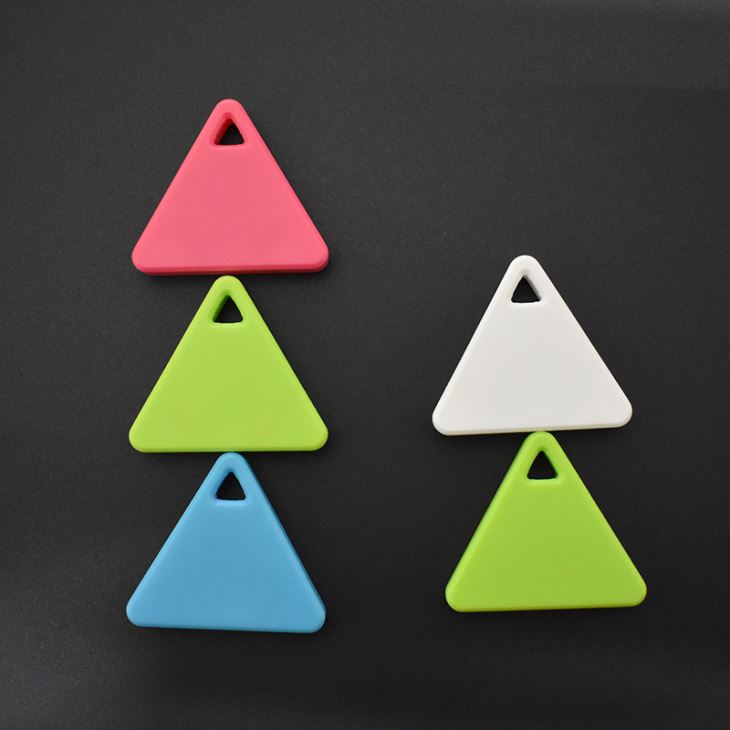

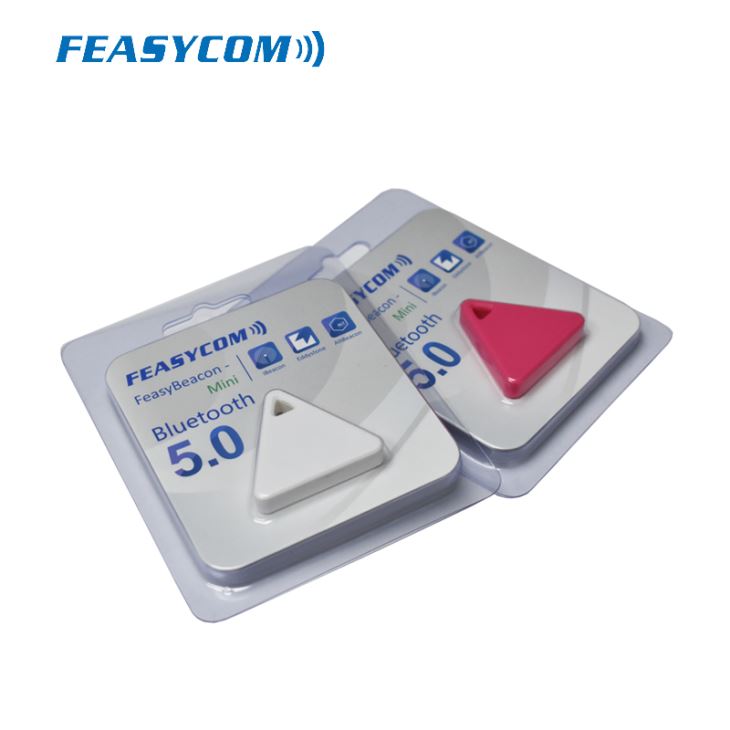

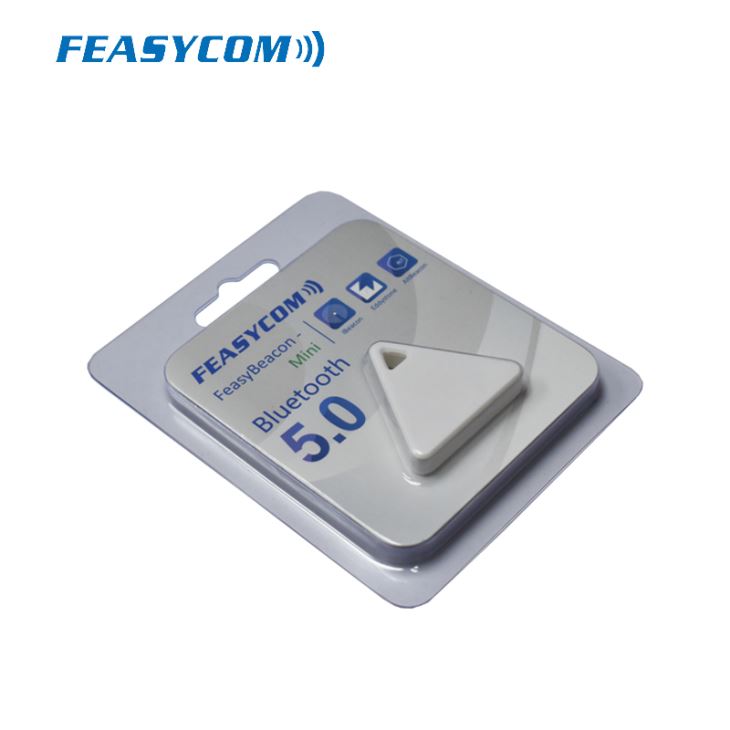

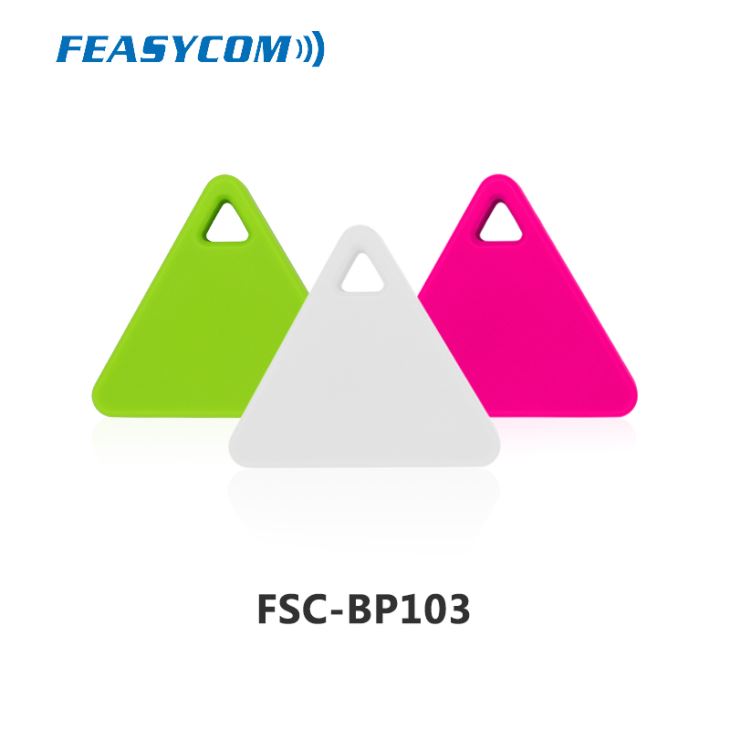

FeasyBeacon Mini is a battery-powered Bluetooth Low Energy proximity-beacon, with multifunctional firmware, it simultaneously supports iBeacon, Eddystone (URL and UID), AltBeacon.



FeasyBeacon Mini using the TI CC2640R2F Chipset, support 10 slots broadcast which can be configurable for non-connectable advertising frames. Transmit distance reach up to 80m .



With the tiny and lightweight shape, it is the perfect choice for stable or temporary installations ,such as shops, museums, exhibits, trade fairs, retails, stadium, asset identification, restaurant, etc.





Main Points:

• Bluetooth 5.0 beacon, TI CC2640R2F ,work distance up to 80m,FeasyBeacon APP for iOS & Android System

• Support Ios & Android(FeasyBeacon),Windows System for Configuration, SDK support .Linux ,MAC System via AT Command.

• Comply with Eddystone(URL,UID),iBeacon,Altbeacon, support 10 slots broadcast which can be configurable for non-connectable advertising frames.

• Battery-powered Bluetooth Low Energy proximity-beacon; battery life: 216 days (ADV Interval: 1s, TX Power= 0dBm)

• Particularly suitable for retail, stadium, museum, hospital, exhibition, hotel, restaurant etc.





FeasyBeacon TI CC2640 Bluetooth 5.0 Beacon Mini  Product Datasheet:





Advertising
iBeacon Version
User-configurable characteristics	UUID,major and minor numbers, tx power at 1m
Advertising interval	0.1 to 1 sec (programmable,with 0.1 sec steps)
Secure config	access password, connectable/ non-connectable
Switch	iBeacon on/off
AltBeacon Version
User-configurable characteristics	UUID,major and minor numbers, tx power at 1m
Advertising interval	0.1 to 1 sec (programmable,with 0.1 sec steps)
Secure config	access password, connectable/ non-connectable
Switch	AltBeacon on/off
Eddystone Version
User-configurable characteristics	UID Frame,URL Frame, tx power at 0m
Advertising interval	0.1 to 1 sec (programmable,with 0.1 sec steps)
Secure config	access password, connectable/ non-connectable
Switch	Eddystone on/off
Product Specification
Chipset	TI CC2640R2F
Standard	Bluetooth 5.0
Max Number of Broadcast	10 Slots configurable for non-connectable or connectable advertising frames
Default Password	0000
Upgrade Mode	OTA (over the air update firmware), support iBeacon and Eddystone, AltBeacon adv at the same time
TX power	5dBm (Max)
Power Range	-23 - +5 dBm
Support system	iOS 7.0+,Android4.3+
Android / iOS config app	Yes
Work distance	=80m(open area)
Type	PCB Coil antenna
Gain	2dBi (Max)
Radiation diagram	Omni-directional
Power Supply	Built-in Battery
Battery  Type	CR2032(260mAh)
Battery  Life	216days(ADV Interval: 1000ms;TX Power= 0dBm,) 637days(Standby Current : 17uA)
Material	ABS plastic
Color	White, Green, Black, Rose Carmine, can be customizable
Size	36.5 X 32.5 X 7.2 mm
Net weight	6.4g
Protection	IP40
Operating temperature	-20°C to +60°C









Now for how to enable the Physical Web app.

Step 1: Download Physical Web app.

Step 2: Plug in beacons broadcasting Eddystone-URL signal.

Step 3: Refresh the app and wait for Eddystone-URL signals to appear.

Step 4: Check out the URL and enjoy your Physical Web experience!



How to enable Google Chrome to receive Eddystone-URL

Step 1: Download Google Chrome.

Step 2: Enable Google Chrome’s today widget and make sure it is scanning for Physical Web objects.

Step 3: Plug in beacons broadcasting Eddystone-URL signal.

Step 4: Refresh the Today tab and wait for the Eddystone-URL’s to be found.

Step 5: Check out the URL and enjoy your Physical Web experience!
