Class 1 FCC long range 100m csr bluetooth 4.0 audio transmitter amplifier dual mode module for beacon broadcasting



FSC-BT909 is  a class1 dual-mode Bluetooth module  ( with BR/EDR & LE support simultaneously ).  It can transmit over 500m with an integrated antenna. While using external whip antenna, the distance can be extended over 2000m. With AT+ programming interfaces, designers can easily customize their applications with supporting different Bluetooth profiles, such as A2DP, AVRCP, HFP/HSP, SPP, HID, GATT, and etc.



FSC-BT909 Main Points



1.Chipset: CSR8811 , Certificate: FCC, CE, RoHS
2. Max Transmit Power: +18.5 dBm, v4.0 bluetooth dual mode module
3. Class 1,Coverage up to 100m(330ft).  Product size: 26.9*13*2.4
4. HFP+A2DP+AVRCP+SPP+HID support,hardware & firmware customization accept
5. Built-in antenna,external antenna optional
6.Application: wireless speaker,Audio Transmitter,TrueWireless, ShareMe

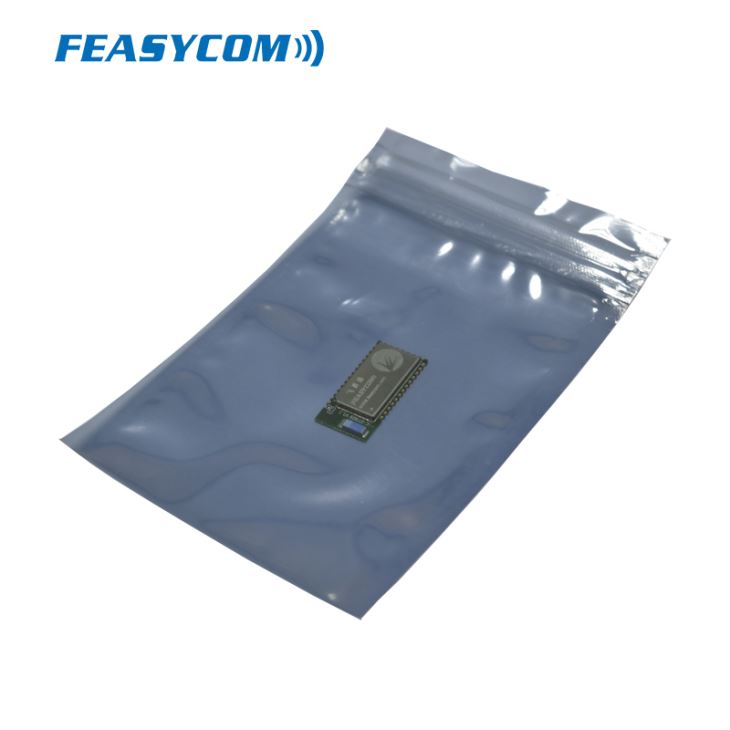

class 1 bluetooth audio module FSC-BT909 Image:



Feature



* Fully qualified Bluetooth 4.0/3.0/2.1/2.0/1.2/1.1

* Postage stamp sized: 13*26.9 *2mm

* Class 1 support(Power up to +18dBm).

* CE,FCC,ROHS Certifications.

* Integrated ceramic chip antenna or external antenna(optional).

* The default UART Baud rate is 115.2Kbps and can support from 1200bps up to 921Kbps.

* UART, I2C, PCM/I2S, SPI, USB interfaces.

* Profiles including A2DP, AVRCP, HFP/HSP, SPP, GATT, etc.

* USB 2.0 full-speed device/host/OTG controller.

* Network support

* MFI Certification

Application:



Medical Devices,Automotive Audio System, ePOS, Barcode Scanners, Industrial Cable Replacement, M2M connectivity, Automotive, Camera Control, Data Storage, Diagnostic, Fitness, Games, GNSS Navigation, GPS Tracker, HVAC, Mobile Computers, Printers, Safety and Control, Security Devices, Weigh Scales, Test and Measurement, Sensors.





Class 1 FCC long range 100m csr bluetooth 4.0 audio transmitter amplifier dual mode module for beacon broadcasting



Feasycom FSC-BT909 Datasheet:



General Specification
Type	BT4.0  Dual  Mode
Product ID	FSC-BT909
Dimension	13mm(W) x 26.9mm(L) x 2.4mm(H) (Tolerance: ±0.1mm)
Bluetooth Specification	Bluetooth V4.0 (Dual Mode)
Power Supply	3.3 Volt DC
Output Power	18.5 dBm  (Class 1)
Sensitivity	-86dBm at 0.1%BER
Frequency Band	2.402GHz -2.480GHz ISM band
Modulation	8DPSK,DQPSK
Baseband Crystal OSC	16MHz
Hopping & channels	1600hops/sec, 1MHz channel space, 79 Channels(BT 4.0 to 2MHz channel space)
RF Input Impedance	50 ohms
Antenna	Multilayer Ceramic Antenna (Set aside an external antenna interface)
Interface	Data: UART (Standard), I2C Audio: PCM/I2S Others: PIO, AIO, Touch sensor, PWM.        USB 2.0
Profile	SPP, GATT(BLE Standard) MFI, Airsync, ANCS, iBeacon, HID
Temperature	-40ºC to +85ºC
Humidity	10%~95% Non-Condensing
Environmental	RoHS Compliant
MSL grade	MSL 3
ESD grade	Human Body Model: Class-2  Machine Model: Class-B

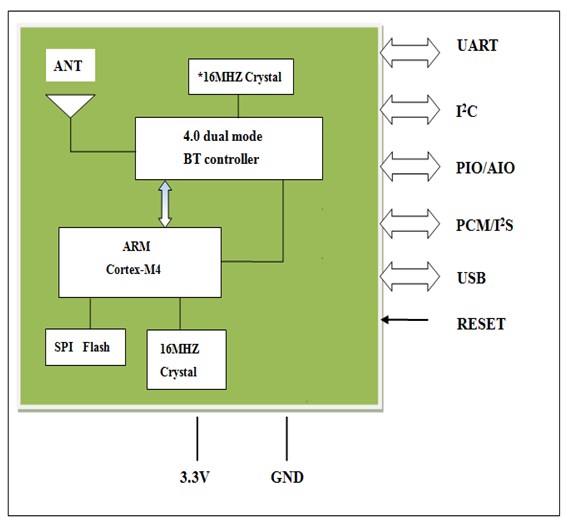

FSC-BT909 Block Diagram:





Bluetooth Audio Module TWS Application:







Bluetooth Audio Module Share me Application:









Things You Need To Know For Bluetooth Modules:





1 What is Bluetooth 4.0:

Bluetooth 4.0 is consists of Bluetooth Basic Rate (BR)/Enhanced Data Rate (EDR), High Speed (HS) and Low Energy (LE), Bluetooth 4.0 covers the Bluetooth 2.0,2.1,3.0 Versions. Nowadays, there are a lot of devices powered by Bluetooth 4.0, such as Bluetooth Earphone, Speakers, Vehicle Electronic Equipment, OBD, Printer, Barcode Scanner, Mobile Medical Device, Bracelet, Pedometer, etc.



2 What is Bluetooth 5.0:

Two times transmission speed compare with Bluetooth V4.2,Max Trans Speed can reach to 24Mbps.Effective work distance can be 300m, 4 times of Bluetooth V4.2.



3 What is Bluetooth Dual Mode Module:

Bluetooth Dual Mode Module is a Single-Module Bluetooth Solution with Built-in Bluetooth Basic Rate (BR)/Enhanced Data Rate (EDR)/Low Energy (LE) Functions.



4 What is BLE Module:

BLE Module is a Single-Module Bluetooth Solution with Built-in Bluetooth Low Energy (LE) Function.



5 What are the Bluetooth Dual Mode Advantages:

There are two most frequently applied Bluetooth Profiles for the general data communication between Smart Device and Bluetooth Peripheral: BLE and SPP.



In iOS, SPP is Only Available after the Bluetooth Peripheral passed the MFi Certification, in view of the high cost and complex process of the MFi Certification, BLE is much good to use. In Android Camp, BLE is Only supported by Android 4.3 and later versions of the Android OS, this lead to the serious system fragmentation issues and make a lot of Android devices has the bad compatibility for the BLE, so SPP has a huge advantage for data communication in android.



In Summary, If one product need to support iOS and Android devices simultaneously, our Bluetooth dual mode modules are the best choice.

7 What is the transmission speed For Classic Bluetooth Module SPP & BLE 4.0

Under Ideal Condition:

SPP: About 80KBytes/s

BLE: About 8KBytes/s



(Remarks: When starts the audio transmission ,the transmission speed for both types will be decreased. When music on, BLE transmission speed is about 1~2KBytes/s )



Company Introduction:



Shenzhen Feasycom Technology Co.,LTD focus on the researching and developing of IoT (internet of things) products, including Bluetooth Modules, WiFi and LoRa Modules, Bluetooth Beacon, etc. With more than 10-year experiences in the wireless connectivity, which ensure us have the capability for providing low-risk product development, reducing system integration cost and shortening product customization cycle to thousands of diverse customer worldwide.



Feasycom’s engineering and design services include:



SDK

APP Support

PCB Design

Development Board

Firmware Development

Depth Customization

Certification Request

Turn-Key Production Testing & Manufacturing



Our products and services mainly apply to Automotive, Point of Sale, Home Automation, Healthcare and Engineering, Banking, Computing, Vending Business, Location, Lighting and more.



Aiming at “Make Communication Easy and Freely”, Feasycom is dedicated to design and develop high-quality products, efficient services to customers, for today, and all days to come.



 Packaging & Shipping



1.Material delivery will be arranged by DHL/UPS/Fedex/TNT/EMS,normally it will take 3-7 working days

to arrive in most of the countries.



2.We can also help you ship the goods by air line, then you fetch the packet from your local airport ,normally it takes about 2-7 days.
