Product description

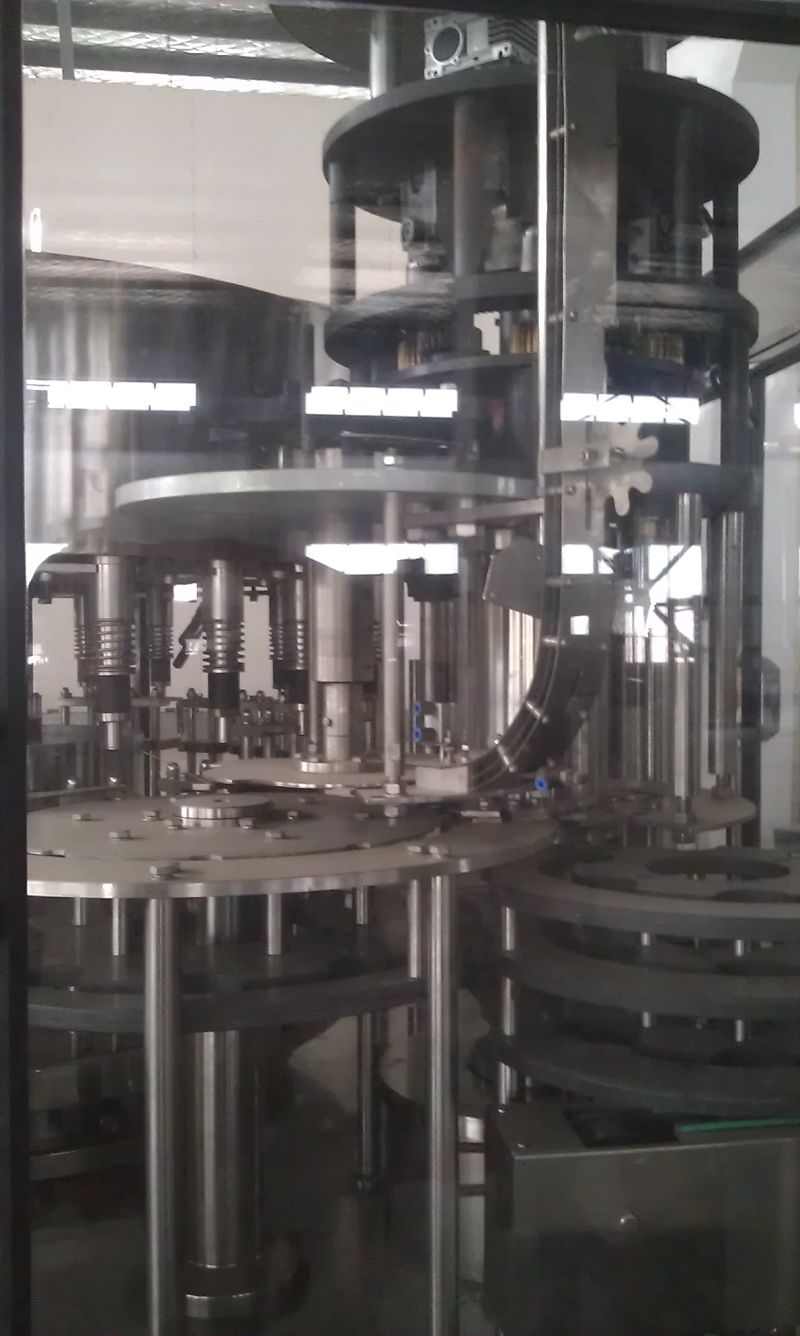

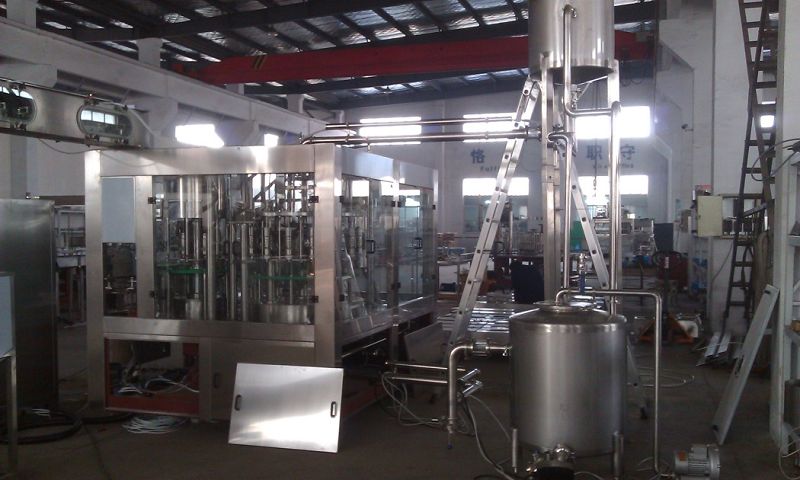

The juice bottling machine incorporates rinsing, filling and capping into one and is a kind of full-automatic equipment. It is suitable for producing PET juice and tea. The method of filling adopts hot filling. The equipment is fitted with advanced Mitsubishi PLC to control the operation and cooperated by frequency converter of the main motor.it makes the operation more stable and reliable.

Technical parameter

Model	XGF-50-50-12
Working position	Washing 50,filling 50,capping 12
Capacity	18000-20000BPH(500ml)
Filling theory	Gravity filling and hot filling
Suitable to bottle size	f50-f90,H 165-290
Air pressure	0.7 MPa
Gas consumption	0.8M3/min
Water pressure	0.2-0.25 MPa
Main power	4.5Kw
Size	2200×1550×2650
Weight	4000Kg



Main parts configuration (All parts can be customized)
PLC: Mitsubishi
Touchscreen: Proface
Contactor: Schneider
Air cylinder: Airtac
Photoelectronic: Banner
