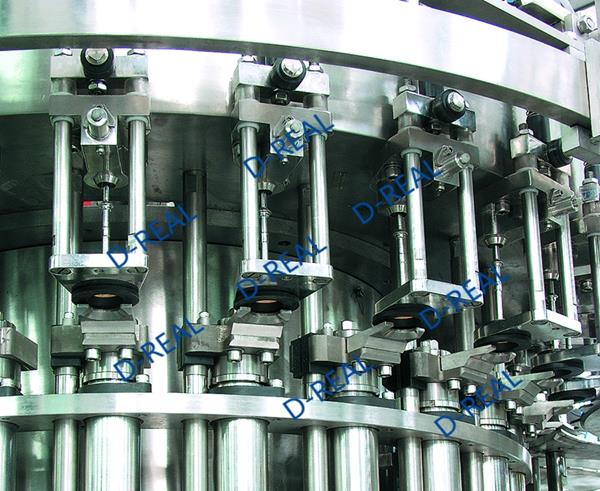

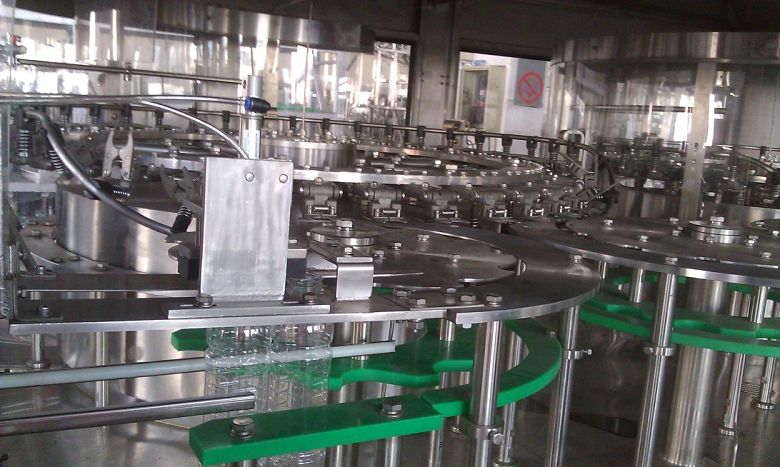

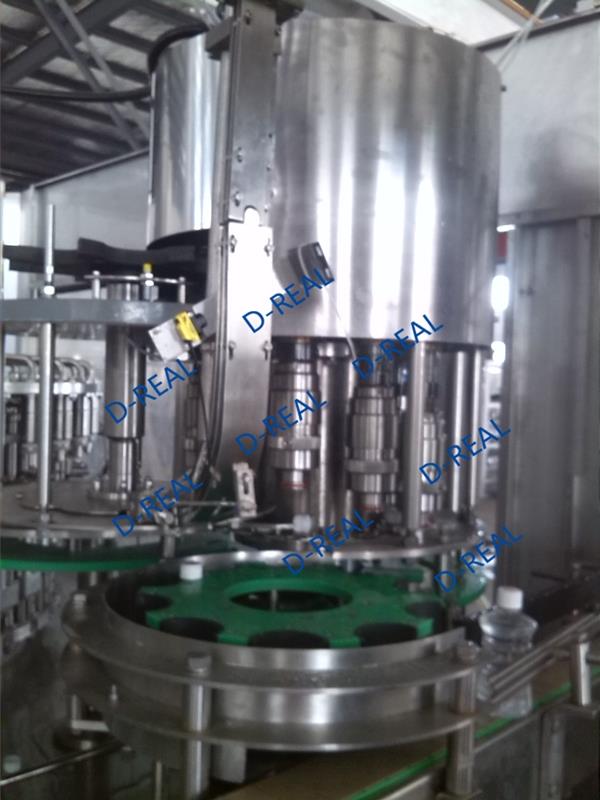

Rotary Type 3-in-1 Carbonated Drinks Filling Machine
Min.Order : 1 Pieces Quick Quotation >
Conpany Profile
Product Details
Machine parameter
1.Overall Dimension: 5200*3700*3000mm Weight: 14500kg
2.Washing Heads: 60
3.Filling Heads: 60
4.Capping Heads: 15
5.Production Capacity: 500ml 20000BPH
6.Filling material: Carbonated drink
7.Filling temperature: 0~5ÂșC
8.Total power: 11 KW
9.Conveyor form: air convey
10.Material: stainless steel 304
11.Bottle application: plastic PET
12.Diameter of bottle body: F50mm-F100mm
13.Height: 150mm-320mm
14.Maximum of cap: F40mm
15.Cap application: plastic
16.Adjustable form: transducer
17.Power of Cap unscramble: 0.37kw
18.Pressure of water supplier: =0.06MPa=0.2Mpa
19.Height of liquid in slot: 1-2.5m
20.Air supplier: =0.5MPa
