Product introduction:



DS-6E Slant bed CNC lathe is with unit type power head, machine body is cast in one piece with resin bonded sand; the lathe bed tilts by 45°, Chuck size with 6". The unit power head structure with 1 with 2 gears type(double short axis),it is a End Milling type. It's high precision and high rigidity superiority. The displacement speed can reach up to 30M/min, spindle motor adopts AC servo motor. The Lathe are widely used in intelligent furniture accessories, bathroom accessories, motor shaft accessories, furniture hardware, medical equipment, copper and aluminum parts, electronics industry, lighting hardware, household appliances.





Product parameters:

Model	DS-6E (End milling)
The style of installation tool	Gang type+ power head
Adjacent tool change time (s)	0.3
Tool change style	Random
Square knife knife holder (mm)	20×20
Round hole knife holder(mm)	f20
Chuck Size	6"
Spindle speed (r/min)	1-4500
Spindle bore (mm)	f46
Center height (mm)	56
Max.Swing diameter (mm)	380
Main axis motor power (KW)	5.5
Minimum system Resolution (mm)	0.001
X/Z Axis travel(mm)	680/250
X/Z axis fast moving speed (m/min)	26(Factory setting)
X/Z axis Repetitive positioning accuracy (mm)	±0.003
Taper (mm)	=0.003/100mm
Card position size (mm)	=0.003
X axis servo-motor (KW)	1.3
Z axis servo-motor (KW)	1.3
Hydraulic station(KW)	0.75
Water tank motor power (KW)	150W
Cooling water tank capacity(L)	60
Bar feeder center height (MM)	1120
Power (kw)	10
Weight (KG)	2800
Size (L*W*H) (mm)	2250x1320x1760

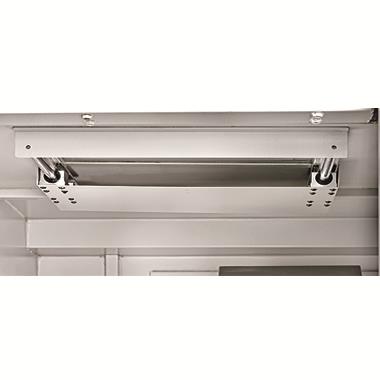

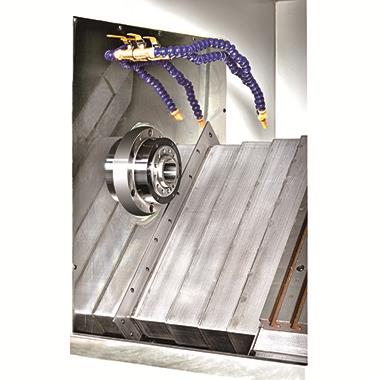

Product detail:





Certificate of quality:



Our Service:

FAQ
Q: minimum order quantity
A: 1 SET
Q: delivery time
A: the delivery time will be confirmed by different machines with different configurations. Some models are in the store. Some models take about three months.
Q: warranty period
A: from the date of bill of lading, the company implements after-sales service. The warranty period is 12 months. During the warranty period, our company will provide replacement parts free of charge if the parts or damage are caused by the quality of the machine. At the same time, the machine should be provided by the buyer according to the operation procedure (except for improper operation or artificial damage).
Q: payment time
A: we like to make 100% T/T.
Q: Is your price competitive?
A: Only good quality machine we supply. Surely we will give you best factory price based on superior product and service.
Q: Which level of quality are your products?
A: We have got CE, ISO.

Packaging Details:
Plastic stretch film for the first layer, EPE packaging film for the second layer, and packing with wooden case at last, together with pallet on the bottom of wooden box.

Standard export port:
Shunde or Shenzhen

Standard packing:
Wooden box packing
2500*1600*2200mm

Packing scene picture



Payment

Our Customers:





Welcome your to visit our factory! Hope you can talk with our engineer face to face, all your requirement will be in the design. You will watch all the goods producting, packing.

You can check the goods before shipping. And you also see other clients'goods, and the rooms local we offered before.
