Product introduction:



CNC36SG-? is Sewing Machine Outside Shuttle's Grinder, the system mainly uses the Mitsubishi system E70, the spindle adopts Taiwan POSA, the bearings are Japan NSK / NTN screw, servo motor and drive (X/Z axis): Mitsubishi. It has a high rigidity, high precision and strong anti-vibration advantages. This kind of grinding machine always used in sewing machine shuttle parts.

Product parameters:

Model	CNC36SG-?
Spindle bore (mm)	F46
Spindle nose	A2-4
Chuck size	5"
Max.swing diameter (mm)	360
Spindle speed (r/min)	45-4500
Spindle power (kw)	3.7
Grinding head size	F100 (Outer diameter)
Grinding the highest speed (r/min)	60000
Grinding head quantity	2
Max.swing diameter (mm)	360
Max.cutting length(mm)	100/200
Minimum resolution (mm)	0.001
X/Z Axis stroke (mm)	340/250
X/Z  axis fast moving speed (m/min)	24
X/Z axis Repetitive positioning accuracy (mm)	0.003/0.003
Cutting feed rate (mm/min)	0-10000
Taper(mm)	=0.003/100
Card position size (mm)	=0.003
Boring size (mm)	f20
Change knife manner	Random
Power (kw)	15
Weight (KG)	2300
Size (L*W*H) (mm)	2090*1430*1555

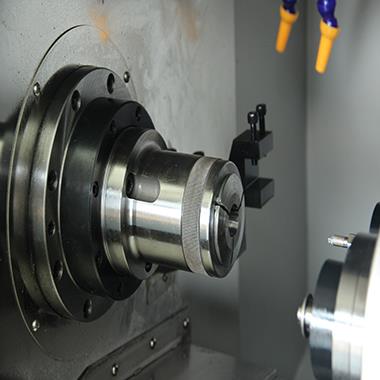

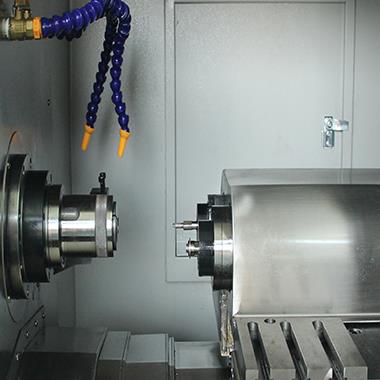

Product detail:

Product features:
1. High speed, high stability, strong vibration resistance
2. Japan Mitsubishi system E70
3. Machine body is cast in one piece with resin bonded sand
4. High-precision spindle
5. The lathe bed tilts by 45°
6. X axis and Z axis the displacement speed can reach up to 30M/min
7. Easy to chip removal
8. Spindle motor adopts AC servo motor
9. Workpiece clamping type :Hydraulic
10. Better heat dissipation effect
11. Automatic Lubrication System
12. Can be used in conjunction with bar feeding automatic

Certificate of quality:



Our Service:

FAQ
Q: minimum order quantity
A: 1 SET
Q: delivery time
A: the delivery time will be confirmed by different machines with different configurations. Some models are in the store. Some models take about three months.
Q: warranty period
A: from the date of bill of lading, the company implements after-sales service. The warranty period is 12 months. During the warranty period, our company will provide replacement parts free of charge if the parts or damage are caused by the quality of the machine. At the same time, the machine should be provided by the buyer according to the operation procedure (except for improper operation or artificial damage).
Q: payment time
A: we like to make 100% T/T.

Production workshop:
The existing machinery production staff of more than 60 people,Research and development staff 10 people, Accessories production staff more than 30 people, Professional after-sales service staff of 10 people, Mainly for mechanical design,Electrical control, Software control, Professional talents in after-sales service and other fields. Has a number of independent innovation technology, Multiple patented technologies. Company production workshop area of more than 6000 square meters, Accessories processing workshop more than 2000 square meters, Office area more than 1000 square meters; In order to ensure the accuracy of important parts, The establishment of internal processing workshop, an area of more than 1000 square meters.





Production process flow:
Raw materials? open materials?machining?grinding?external surface treatment?assembly?finished products



Packaging Details:
Plastic stretch film for the first layer, EPE packaging film for the second layer, and packing with wooden case at last, together with pallet on the bottom of wooden box.

Standard export port:
Shunde or Shenzhen

Standard packing:
Wooden box packing
2500*1600*2200mm
