Find high quality best gps tracker for car with competitive price here. Please rest assured to buy best gps tracker for car with Shenzhen Cartracker Technology Co.,Ltd

Parameters:

Model Name: CA-V2A

Size: 90mm*45mm*13.8mm

Product Type: GPS Tracker

GPS location accuracy: 5meters

Wide voltage input: DC9.5V to 39.9V

Working current: 20mA@DC12V

GSM: 850/900/1800/1900MHz

GPRS: CLASS12, TCP/IP

Weight: 0.04kg

Application: Truck/Car/taxi

GPS Chip: MTK Chip

GSM Chip: MTK Chip

Relay: DC12V/24V Line relay

Warranty: one and half year

APP: Android and IOS System

Protocol: GT06 protocol

Product Introduction:

CA-V2A is designed with MTK communication Chip and MTK positioning Chip. It supports two kinds of protocols. You can switch it via SMS command. It can meet different kinds of customers. Because many customers have platform server and the platform only supports one protocol. And the GPS antenna of this device is bigger than some other mini models. It can receive GPS satellite signal better.

SMS Command:

1. Set over speed alarm function

Message command format: #Password#SOSA#120#

For example: #6666#SOSA#120#

It will alarm when the speed is more than 120km/h.

Replies: Set Over speed alarm,OK!

2. Cancel speed alarm

Message command format: #Password#COSA#

For example: #6666#COSA#

Replies: Close over speed alarm.

It stands for the over speed alarm function is cancelled.

3. Set Vibration alarm

Message command format: #Password#SSA#LEVEL#

For example: #6666#SSA#1#

Replies: Set alarm level, OK!

It means level is 1 grade.

4. Cancel vibration alarm function

Message command format: #Password#CSA#

For example: #6666#CSA#

Replies: Close vibration Alarm, OK!

It means the vibration alarm function is closed.

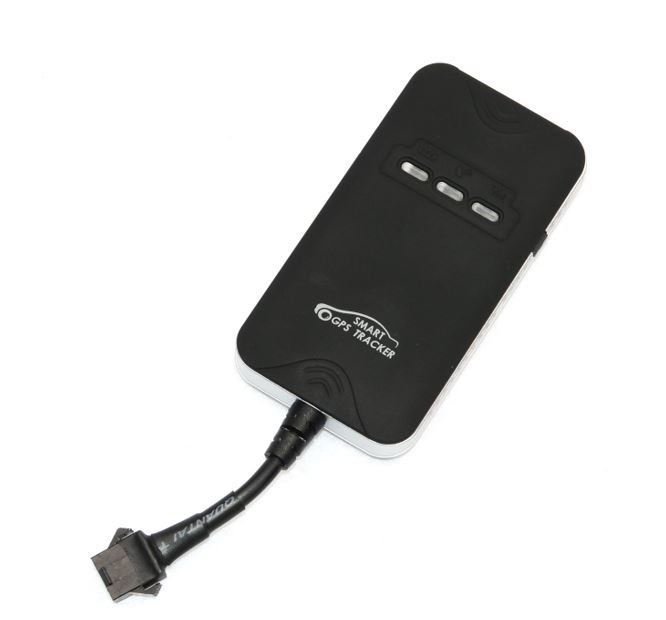

Product Display:



LED Indicator:

1. GSM LED Indicator:  Blue LED

LED Status	Meaning
Fast Flash	Uploading data
Slow flash	GSM is working normally
Continuously on	NO GSM signal

2. GPS LED Indicator:  Green LED

LED Status	Meaning
Slow Flash	GPS Signal is normal
Continuously on	Can not received GPS signal
Dark	Sleeping mode or no power

How to install?

Before you install it, please prepare product and one 2G SIM card. Of course this SIM Card should support GPRS function.

Please contact your supplier and add this device to track platform.

According to the installation diagram of the instruction, please connect it to your vehicle.

Please check the blue LED and Green LED, make sure they work normally.

Finally send IP and APN command. If all is ok. You can check the position from the platform website.

Application:





FAQ:

Question 1:  It supports waterproof?

            Sorry, this model not support waterproof, if you need waterproof GPS model, I can introduce our CA-V5W to you.

Question 2:  Dose it support quad band?

             Yes, it supports 850/900/1800/1900MHz, you can use it in any countries.

Question 3:  Do we need to set APN?

             Our device contains most of APN, generally don’t need to set.

Question 4:  We have server, can you install your platform to our server?

             Yes, but there will be fees to install it.
