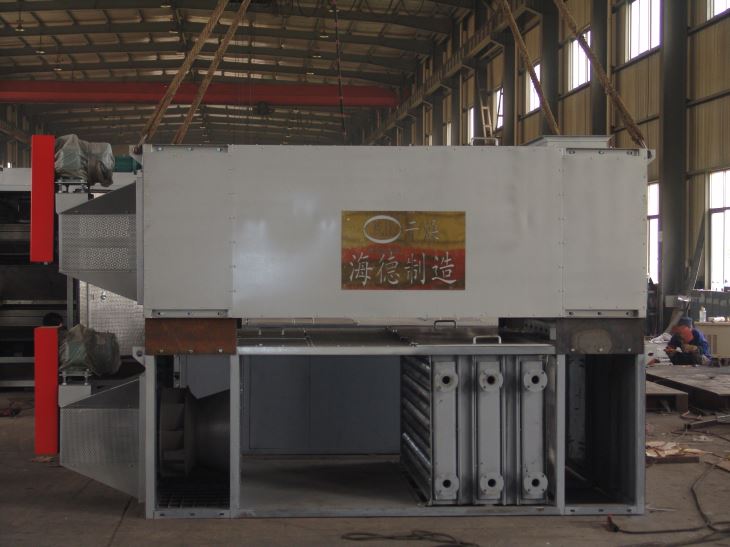

Find high quality box circulation dryer with competitive price here. Please rest assured to buy box circulation dryer with Liyang Haide Machinery Manufacture Co.,Ltd

Capacity: 300t/d-500t/d

Product  feature:
1?With international advanced swing distribution device for even spreading of material and even moisture content of material.
2?Caterpillar are made of stainless steel punched-plate for no sticking, anti-corrosion and cleaning.
3?The machine is equipped two caterpillars, materials will come and go four times on the caterpillars for sufficient using of space, maximum improving drying efficient and homogeneity.
4?Built-in heating and hot air circulative system, which reduce steam consumption and reduce operation cost.
5?Entrances and exits of air are designed in  different sections for easy controlling of the temperature and moistures. Drying  speed is adjustable for high quality drying.
6?Adopt modularization designation, length and direction can be adjusted to demand. you can choose the caterpillars of  1.2m, 1.8m or 2.4m.

Technical  parameters:

Model	Capacity (T/H)	Drying area (mm2)	width of Belt (m)	Power (Kw)	Water removal (%)
SHGW120×2	1.5-2	20	1.2	28	15
SHGW180×2	3-4	30	1.8	36	15
SHGW240×2	4-5	40	2.4	48	15

Applicable  scope
It is widely  used for drying (stabilizing and cooling) pellet, flake and stripe materials in feed and food industry. It is effectively used for better gelatinization and drying of extruded aqua feed and compound pellet feed. It improves the water durability of feed and feed appearance. With inner circulative hot air flow system for less energy consumption, lower operation cost and more reliable.

LiYangHaide Machinery Manufacture Co., Ltd-- devoted to development and designing of drying equipment!

Focus on “low carbon, energy saving, environmental protection, intelligence”, continuousimprovement and innovation of tower type grain dryer, got two patens of tower type grain dryer, patent number: ZL201220146549.8 and ZL201220146547.9.

Haide advanced generation equipment

Haide drying equipment has been sold all over China, and was exported to Indonesia,Bangladesh,Malaysia,New Zealand,and Cambodia.
