Hot Filling Juice Bottle Semi- Automatic Blow Moulding Machine
Min.Order : 1 Pieces Quick Quotation >
Conpany Profile
Product Details
Product Description:
Semi Automatic Blow moulding Machine price for hot filling bottles , PET Bottle making machine supplier.

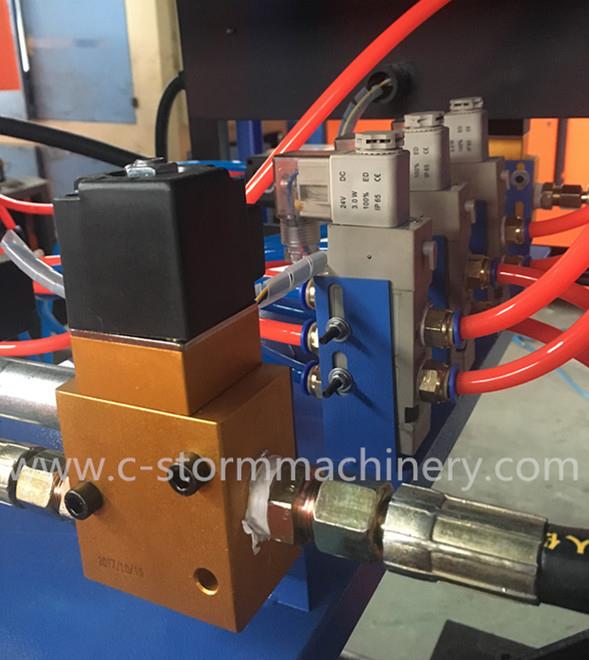

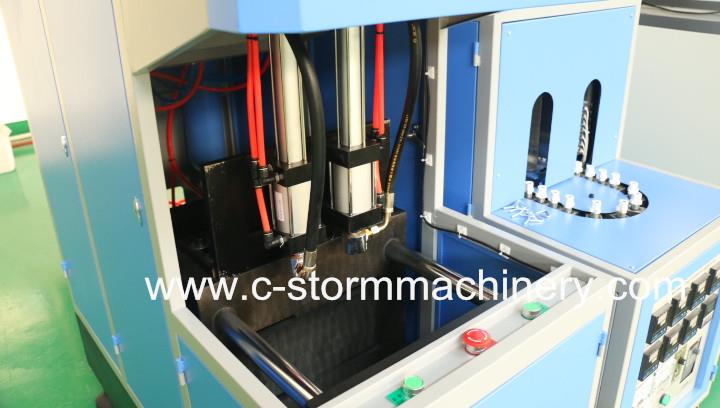

Machine Pictures:
Application field: It's suitable for PET bottles which are used for hot filling. The bottle weight is from 20gram to 50gram.
Machine Parameters:
Model |
ECO3LR Hot filling Semi Automatic Blow Molding Machine Technical Parameter |
|
Output |
Based on bottle shape |
500 pcs/h |
Product Specifications |
Max.diameter range |
28-38mm |
Max.container diameter |
85mm |
|
Max.container height |
320mm |
|
Mold Specifications |
Cavity |
2 cavity |
Clamping stroke |
160mm |
|
Stretching stroke |
360mm |
|
Machine Power |
Power Voltage |
380v 3Phase /220v 3Phase 50/60HZ |
Installed power/used power |
14kw/7kw |
|
Air Source |
High pressure air compressor |
2.0m3/min 40Bar |
Air dryer |
2.0m3/min 40Bar |
|
Air filter |
2.0m3/min 30Bar |
|
Blowing machine size |
Length*width*height/weight |
1590*615*1570mm/650kg |
Heater size |
Length*width*height/weight |
1700*565*1360mm/350kg |
The Auxiliaries you need:
Oil temperature machine; Air filter; Air cooling dryer; High pressure air compressor etc.
Machine configurations:
No. |
Component |
Brand |
1 |
Stretch Cylinder |
Japan MOHE |
2 |
Operating Valve |
Germany BOSCH |
3 |
Blowing Valve |
America PARKER |
4 |
Electric system |
France SCHNEIDER |
5 |
Operating System |
Germany SIEMENS |
Notice: The componet brand can be selected according to your requirement.
Machine Advantages:
1. Stable,Energy-saving, economical,less investment.
2. It's suitable for blowing different kinds of bottles.
3. Safety,easy to operate it. The worker without special training.
Why choose us?
1. More than 10 years experience in manufacturing plastic machines.
2. Customized solution and perfect service
3. 24 hours online feedback services
4. Brand-name parts of the machine are optional by yourself.
5. Engineers available to install and test machine oversaeas.
6. The machine can work more than 10 years without damage by human.
